UV Ozone Surface Cleaning Conveyor
The ZKUV-O3UV is a UV ozone surface cleaning conveyor for LCD and touch-panel production. The documented configuration uses ten 90 W low-pressure mercury lamps with 185/254 nm wavelengths and a 500 mm effective irradiation width.
- 185/254 nm UV lamp configuration for surface cleaning.
- PTFE mesh conveyor with adjustable speed.
- SUS304 enclosure and downward forced-air extraction.

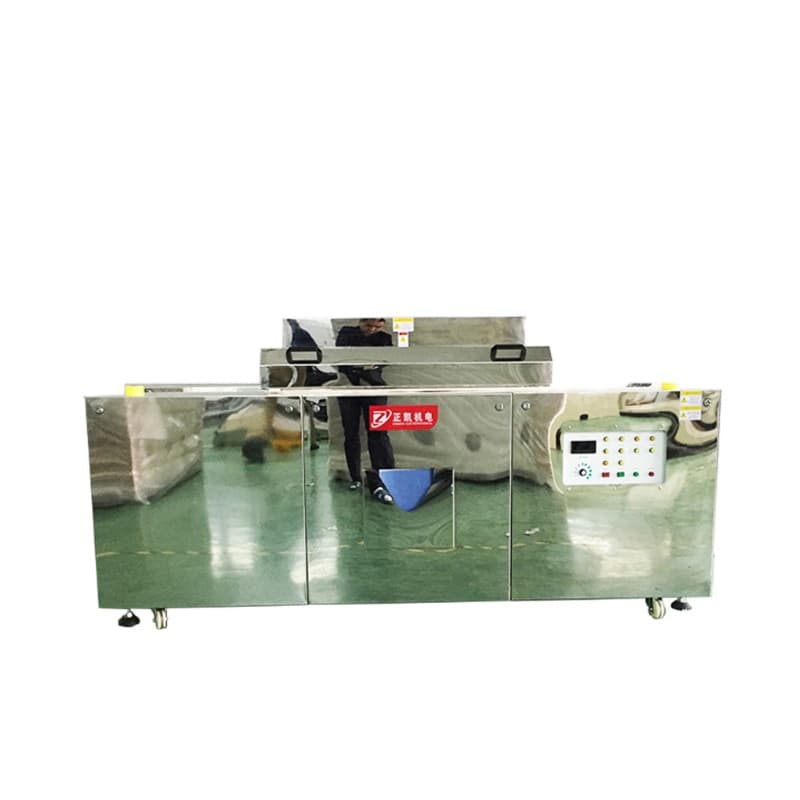

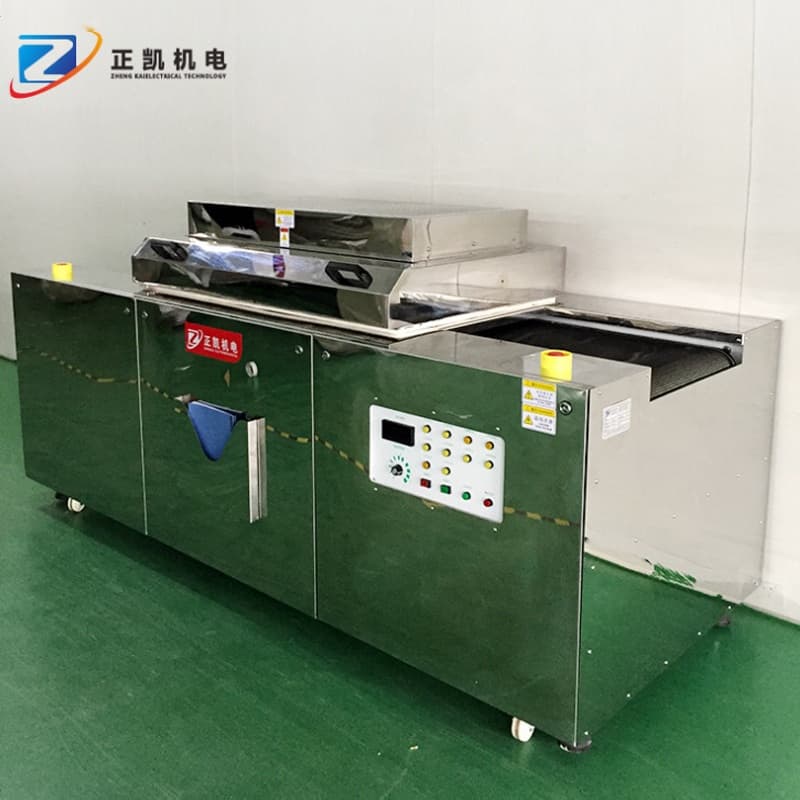

Product Images
Product Introduction
The ZKUV-O3UV is a UV ozone surface cleaning conveyor for LCD and touch-panel production. The documented configuration uses ten 90 W low-pressure mercury lamps with 185/254 nm wavelengths and a 500 mm effective irradiation width.
A PTFE mesh conveyor transports the workpieces through the 1200 mm UV section. Conveyor speed is adjustable from 0 to 5 m/min. The enclosure uses SUS304 stainless steel, with mirror-finish reflectors and downward forced-air extraction.
Provide the substrate, surface condition, subsequent coating or bonding process and required line speed for configuration review. Confirm material compatibility, exposure conditions and extraction requirements for the installation; cleaning results depend on the workpiece and process.
Features and Operation
- 185/254 nm UV lamp configuration for surface cleaning.
- PTFE mesh conveyor with adjustable speed.
- SUS304 enclosure and downward forced-air extraction.
Technical Specifications
- Effective irradiation width
- 500 mm
- UV section length
- 1200 mm
- UV lamps
- 10 × 90 W
- Lamp wavelengths
- 185 / 254 nm
- Conveyor speed
- 0–5 m/min
- Transfer height
- 860 ±50 mm
- Equipment dimensions
- Approx. L2400 × W1020 × H1200 mm
- Power supply
- AC 220 V, single-phase, 50 Hz
- Installed power
- 2 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
