Display-Module Aging Oven
The ZKMO-200LH-2W is a hot-air aging oven for display modules, with timed product power switching for testing under elevated temperature.
- Display-module aging with timed power switching
- Front and rear sliding glass doors
- Programmable temperature operating modes
Product Images
Product Introduction
The ZKMO-200LH-2W is a hot-air aging oven for display modules, with timed product power switching for testing under elevated temperature.

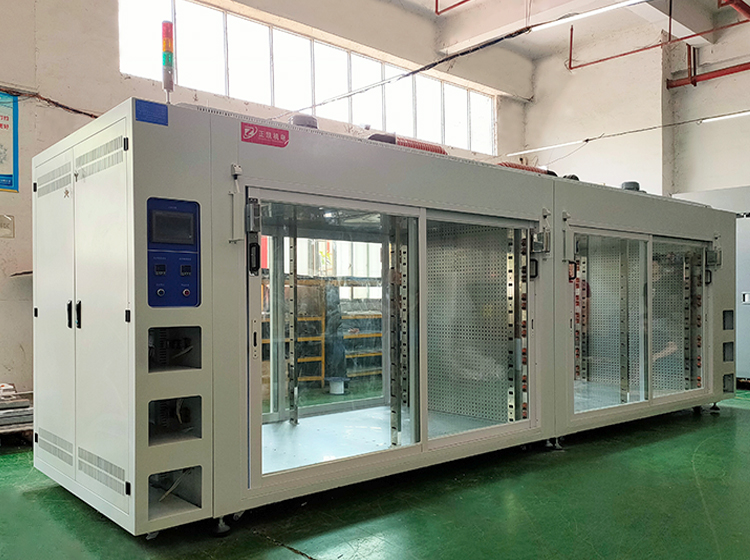

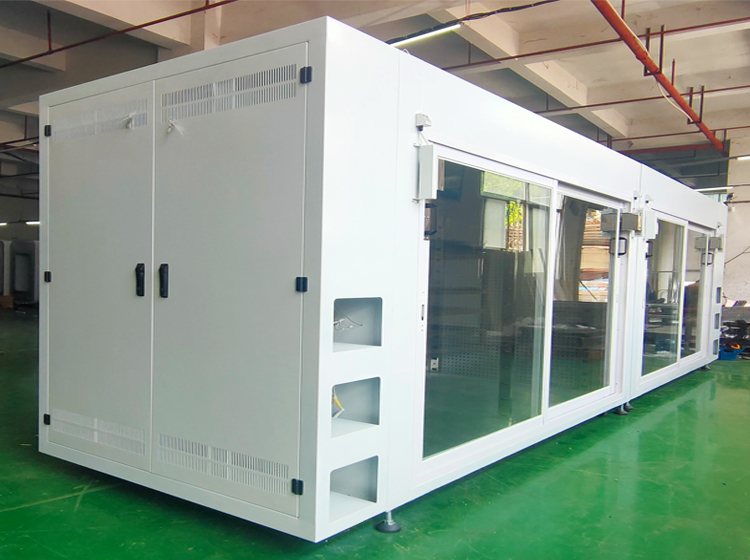

The documented temperature range is ambient plus 10 °C to 100 °C, with 75 °C listed as a common operating point. Front and rear sliding glass doors provide access and observation, and shelf spacing is adjustable for the product height.
PLC touchscreen controls support fixed-value, timed-temperature and multi-stage operating modes. Mechanical overtemperature protection supplements the temperature controller. Provide the module dimensions, electrical loads and aging sequence to confirm the test configuration.
Features and Operation
- Display-module aging with timed power switching
- Front and rear sliding glass doors
- Programmable temperature operating modes
Technical Specifications
- Temperature range
- Ambient +10 to 100 °C
- Documented common operating temperature
- 75 °C
- Inner chamber material
- SUS304 stainless steel
- Control system
- PLC and touchscreen
- Overall dimensions (W × D × H)
- 5500 × 1500 × 2300 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 40 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
