UV Curing Conveyor with Print Unloading System

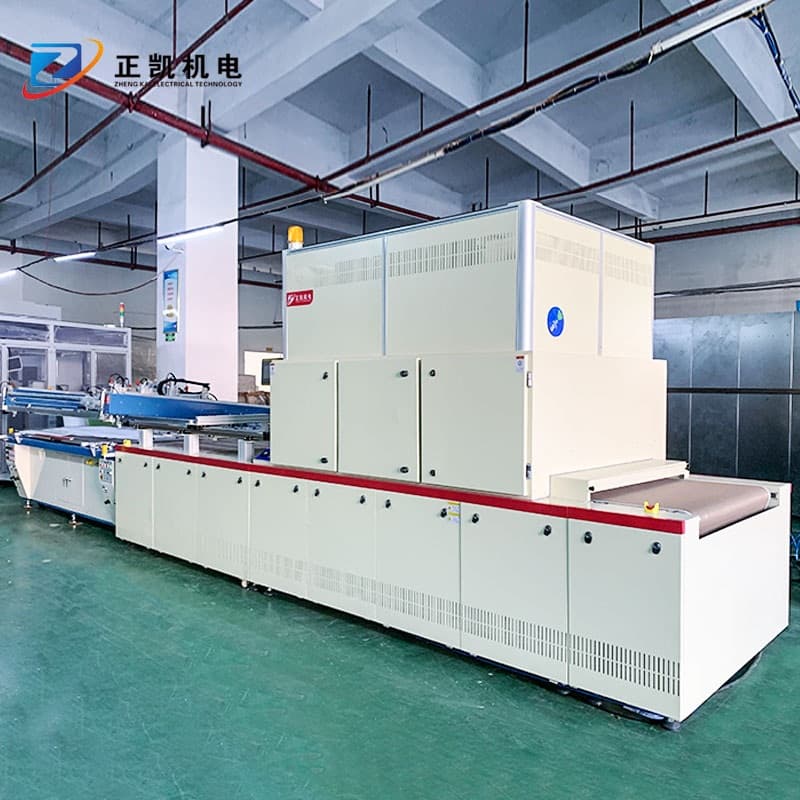

The ZKUV-1323M combines a UV curing conveyor with a print-unloading mechanism that transfers printed workpieces from the printing platform to the conveyor inlet.
- XZ-axis print-unloading mechanism
- 1100 mm conveyor belt
- PLC touchscreen control
Product Images
Product Introduction
The ZKUV-1323M combines a UV curing conveyor with a print-unloading mechanism that transfers printed workpieces from the printing platform to the conveyor inlet.

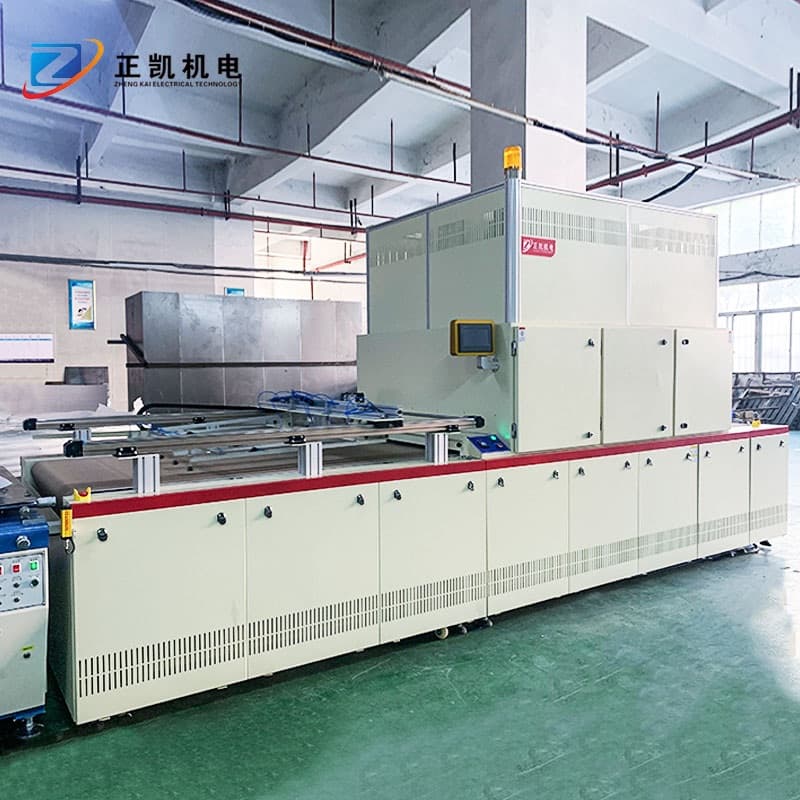

The documented unloading mechanism uses an XZ-axis assembly and adjustable suction-cup positions. The conveyor belt is 1100 mm wide, and the system uses PLC touchscreen control with an electronic power-supply system.
The UV chamber hood and base plate are specified in SUS304 stainless steel. A condenser is included in the documented configuration, with chilled water supplied by the customer. Provide the printing-platform layout, workpiece size and available utilities to confirm the transfer and curing arrangement.
Features and Operation
- XZ-axis print-unloading mechanism
- 1100 mm conveyor belt
- PLC touchscreen control
Technical Specifications
- Conveyor belt width
- 1100 mm
- Overall dimensions (L × W × H)
- 5100 × 1900 × 2400 mm
- Control system
- PLC touchscreen
- Unloading mechanism
- XZ-axis assembly
- Suction-cup positions
- Adjustable
- UV chamber hood and base material
- SUS304 stainless steel
- Chilled-water supply
- Provided by customer
Specifications describe the documented configuration. Confirm the final configuration for your application.
