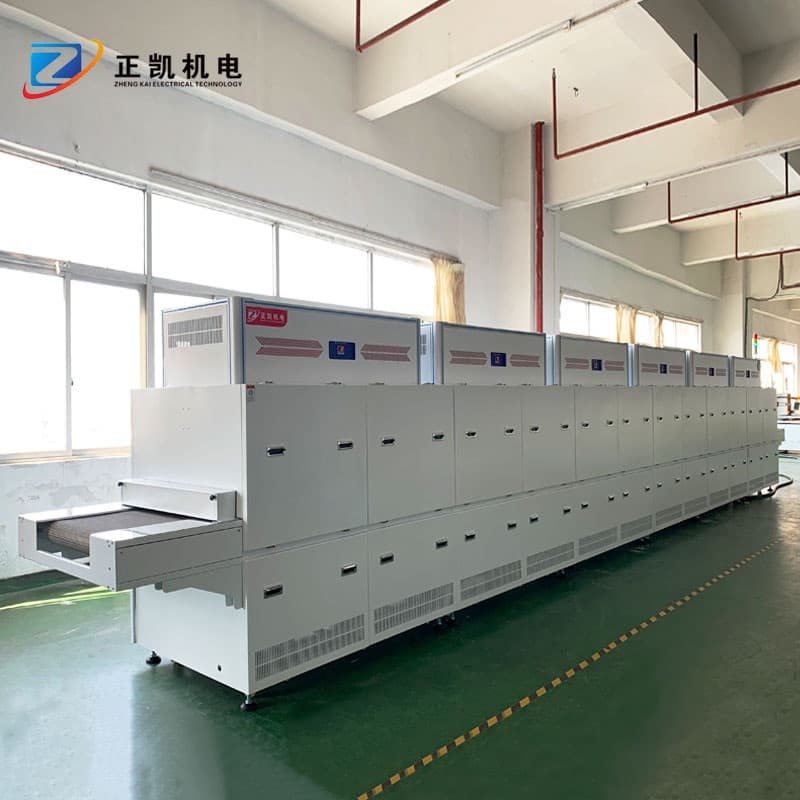

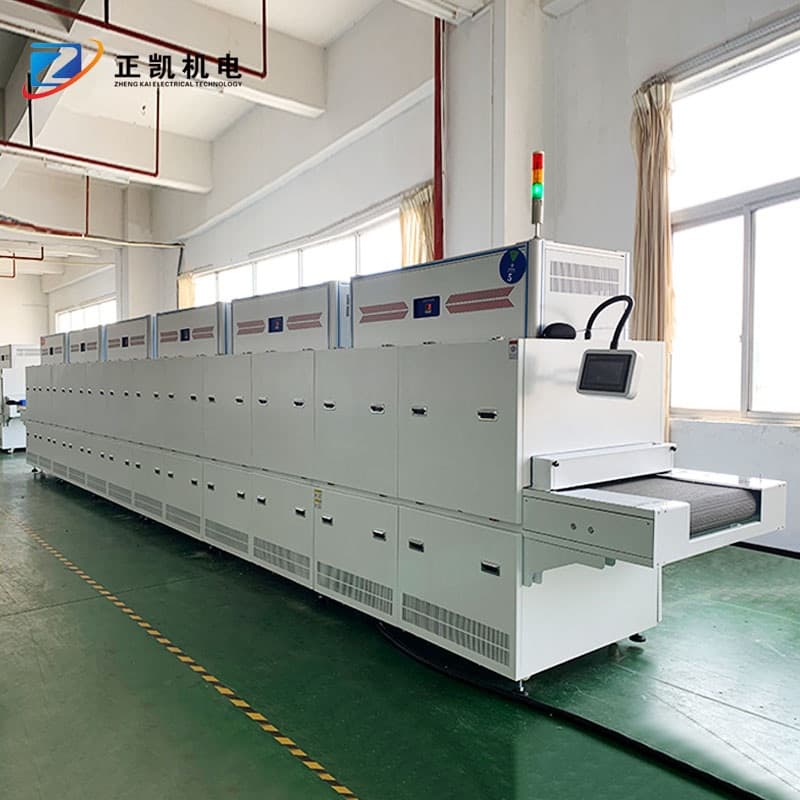

Long-Line UV Surface Modification Machine
The ZKUV-10090 treats silicone products such as watch straps with UV light. The documented long-line configuration has a 9600 mm UV section and a 550 mm irradiation width.
- 550 mm irradiation width and 9600 mm UV section.
- Adjustable transport speed with automatic lamp lifting and belt tracking.
- Forced-air extraction and support rollers.
Product Images
Product Introduction
The ZKUV-10090 treats silicone products such as watch straps with UV light. The documented long-line configuration has a 9600 mm UV section and a 550 mm irradiation width.
The conveyor speed is adjustable from 0.2 to 1 m/min. The design includes automatic lamp lifting and belt tracking, mirror-finish stainless-steel reflectors and forced-air extraction. The specification also describes unpowered support rollers for conveying round materials.
Provide the silicone formulation, product dimensions, loading method and required surface characteristics. Confirm the heating settings, UV exposure conditions and extraction connections for the actual product and installation.
Features and Operation
- 550 mm irradiation width and 9600 mm UV section.
- Adjustable transport speed with automatic lamp lifting and belt tracking.
- Forced-air extraction and support rollers.
Technical Specifications
- Irradiation width
- 550 mm
- UV section length
- 9600 mm
- Conveyor speed
- 0.2–1 m/min
- Transfer height
- 900 ±20 mm
- Equipment dimensions
- Approx. L10800 × W1100 × H1900 mm
- Power supply
- AC 380 V, three-phase, 50 Hz
- Installed power
- 19 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
