ITO Film Roll-to-Roll Dry-Film Laminator
The ZKL-55-R2R laminates dry film onto ITO film in touch-panel production, then rewinds the processed web.
- ITO film dry-film lamination
- Dust cleaning before heated-pressure lamination
- Vacuum splice platform and web guidance

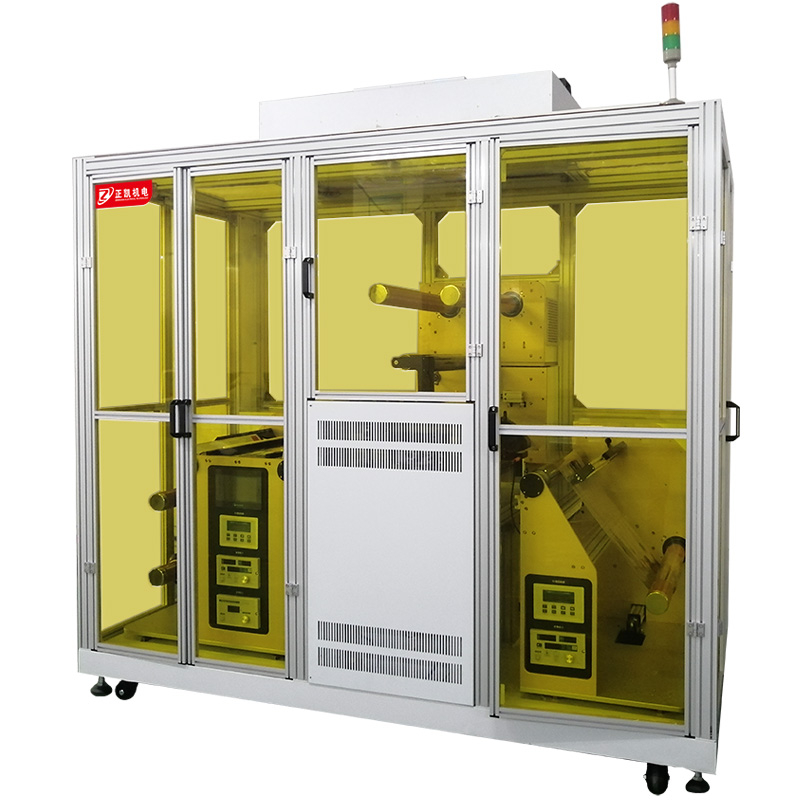

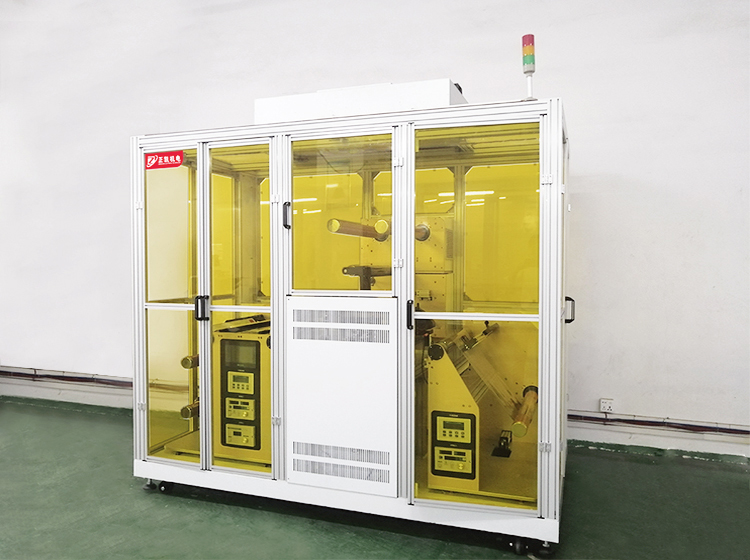

Product Images
Product Introduction
The ZKL-55-R2R laminates dry film onto ITO film in touch-panel production, then rewinds the processed web.
The process includes unwinding, dust-removal rollers, heated-pressure lamination and rewinding. Maximum material width is 550 mm, with thickness from 0.05 to 0.5 mm and laminating speed from 0 to 3 m/min.
The configuration includes a vacuum splice platform, web guidance and two collection shafts. The heated rollers use PID temperature control, and the operator interface includes fault information and I/O monitoring. Provide the ITO film, dry film and desired process conditions for configuration review.
Features and Operation
- ITO film dry-film lamination
- Dust cleaning before heated-pressure lamination
- Vacuum splice platform and web guidance
Technical Specifications
- Maximum material width
- 550 mm
- Material thickness
- 0.05–0.5 mm
- Laminating speed
- 0–3 m/min
- Collection shafts
- 2
- Power supply
- 220 V, single-phase
- Connected power
- 4 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
