Mercury-Lamp UV Curing Conveyor
The ZKUV-402 is a mercury-lamp conveyor for UV curing after adhesive dispensing on electronic, plastic and PVC products.
- Two 4 kW UV mercury lamps
- 500 mm conveyor width
- Adjustable conveyor speed up to 10 m/min

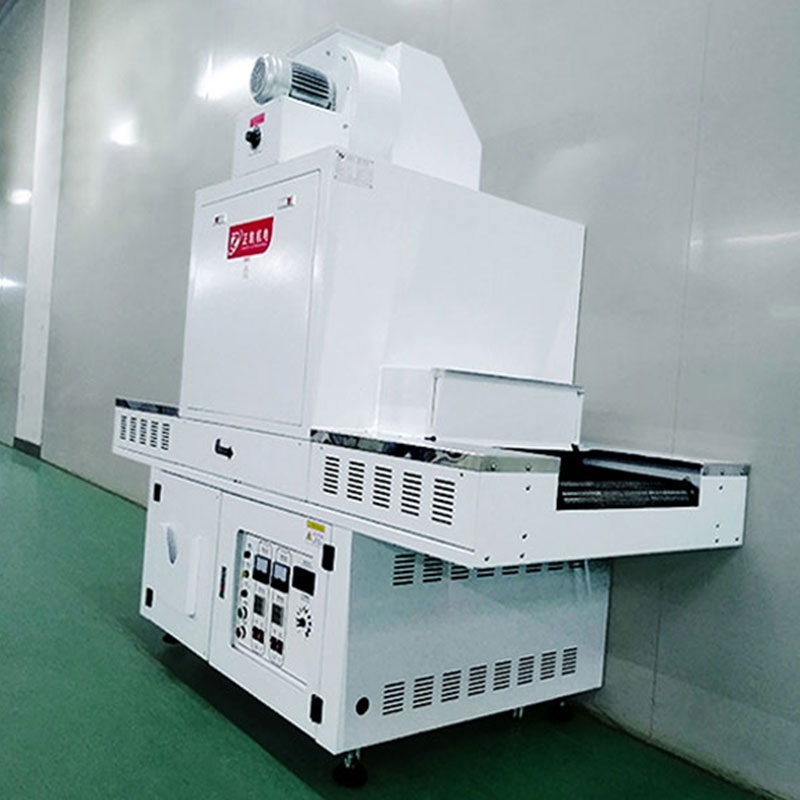

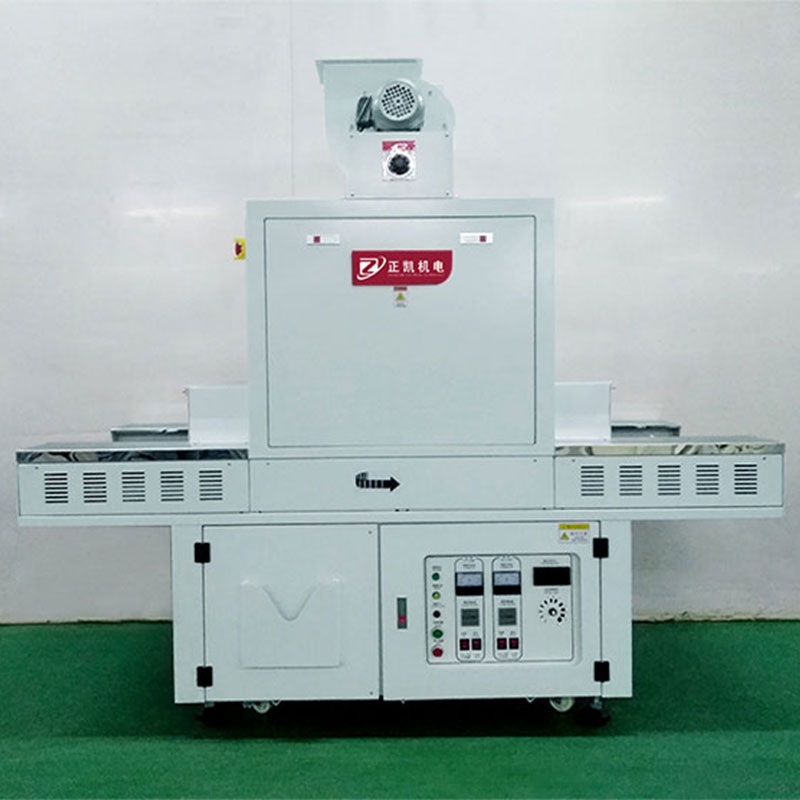

Product Images
Product Introduction
The ZKUV-402 is a mercury-lamp conveyor for UV curing after adhesive dispensing on electronic, plastic and PVC products.
Two 4 kW UV mercury lamps work above a 500 mm conveyor. The documented layout has a 600 mm loading section, an 800 mm UV section and a 600 mm unloading section. Conveyor speed is adjustable up to 10 m/min.
The control panel includes lamp current indication, a lamp operating-time meter and high/low light selection. Submit the adhesive, workpiece size and required process conditions when requesting a configuration.
Features and Operation
- Two 4 kW UV mercury lamps
- 500 mm conveyor width
- Adjustable conveyor speed up to 10 m/min
Technical Specifications
- Conveyor width
- 500 mm
- UV lamps
- 2 × 4 kW
- Maximum conveyor speed
- 10 m/min
- Lamp luminous length
- 500 mm
- UV section length
- 800 mm
- Conveyor height
- 750 ± 20 mm
- Overall dimensions (L × W × H)
- Approx. 2000 × 950 × 1950 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 9 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
