Protective-Film Separator for Cover Glass
The ZKFM-200 cuts the protective film between laminated cover-glass pieces to separate them into individual pieces.
- Separation of laminated cover-glass pieces
- Traversing protective-film blade
- PLC and operator-interface control

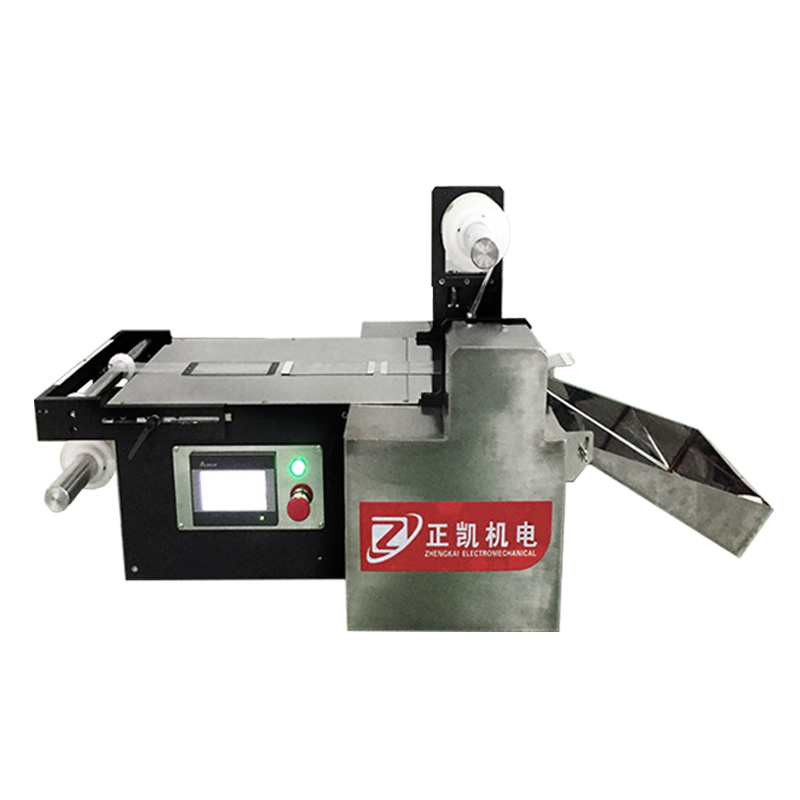

Product Images
Product Introduction
The ZKFM-200 cuts the protective film between laminated cover-glass pieces to separate them into individual pieces.
The documented cut-size range is 200–1000 mm in length and 50–200 mm in width, for material 0.1–1 mm thick. A DC-motor-driven blade moves laterally across the protective film.

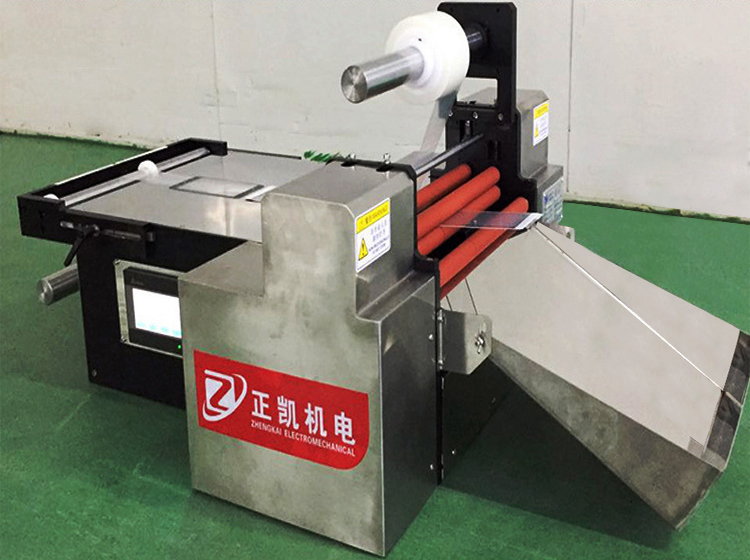

Rubber-covered rollers convey the product, and a receiving tray collects the separated pieces. PLC and operator-interface controls support setup. Provide the cover-glass dimensions and film construction to confirm the suitable arrangement.
Features and Operation
- Separation of laminated cover-glass pieces
- Traversing protective-film blade
- PLC and operator-interface control
Technical Specifications
- Cut length
- 200–1000 mm
- Cut width
- 50–200 mm
- Material thickness
- 0.1–1 mm
- Overall dimensions (L × W × H)
- Approx. 700 × 640 × 270 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 0.5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
