Roll-to-Roll ITO Film Annealing Line
The ZKLCO-9-25-R2R is a roll-to-roll annealing line for ITO film used in touch-panel production. Film passes from unwinding through infrared and hot-air heating, then cooling and rewinding. The archived configuration specifies 800 mm film width, a 900 mm conveyor and a 25 m heating section.
- Dual-shaft unwinding and rewinding with protective-film handling.
- Twenty-five-zone infrared and hot-air heating.
- EPC-guided rewinding with buffered film transfer.
Product Images
Product Introduction
The ZKLCO-9-25-R2R is a roll-to-roll annealing line for ITO film used in touch-panel production. Film passes from unwinding through infrared and hot-air heating, then cooling and rewinding. The archived configuration specifies 800 mm film width, a 900 mm conveyor and a 25 m heating section.
The unwinder removes the front protective film before heating. Following cooling, the rewinder reapplies protective film and uses EPC edge-position control to guide the roll. Dual-shaft roll handling, pneumatic expanding shafts and buffer sections support material transfer between the stations and oven.
Twenty-five heating zones allow the infrared and hot-air outputs to be controlled separately. The system uses filtered recirculating airflow, an adjustable conveyor speed of 0.5–3 m/min and a typical material surface temperature of 160 °C. Actual working speed and the temperature profile depend on the film.

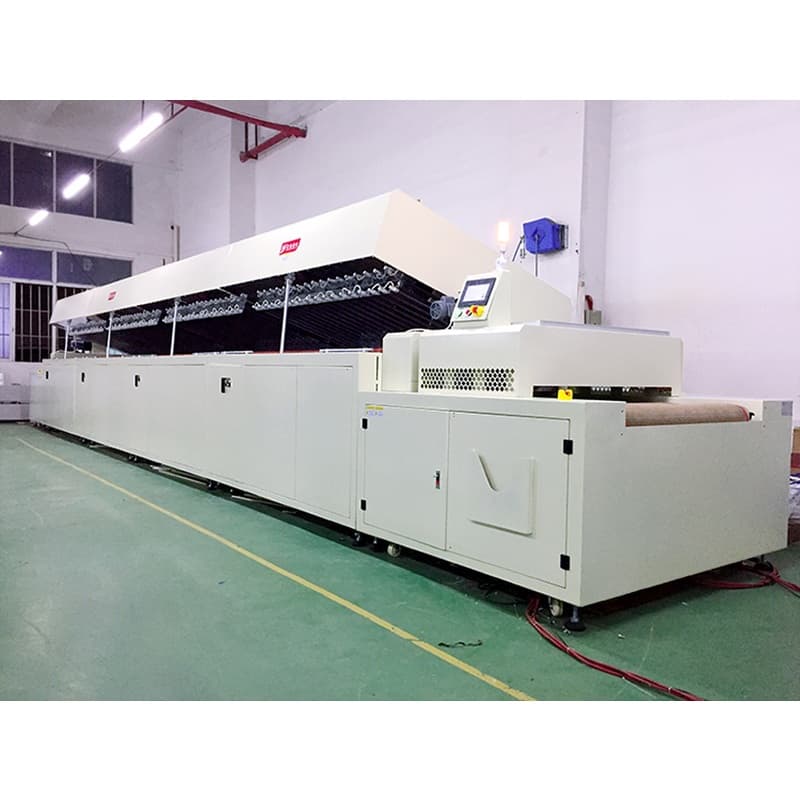

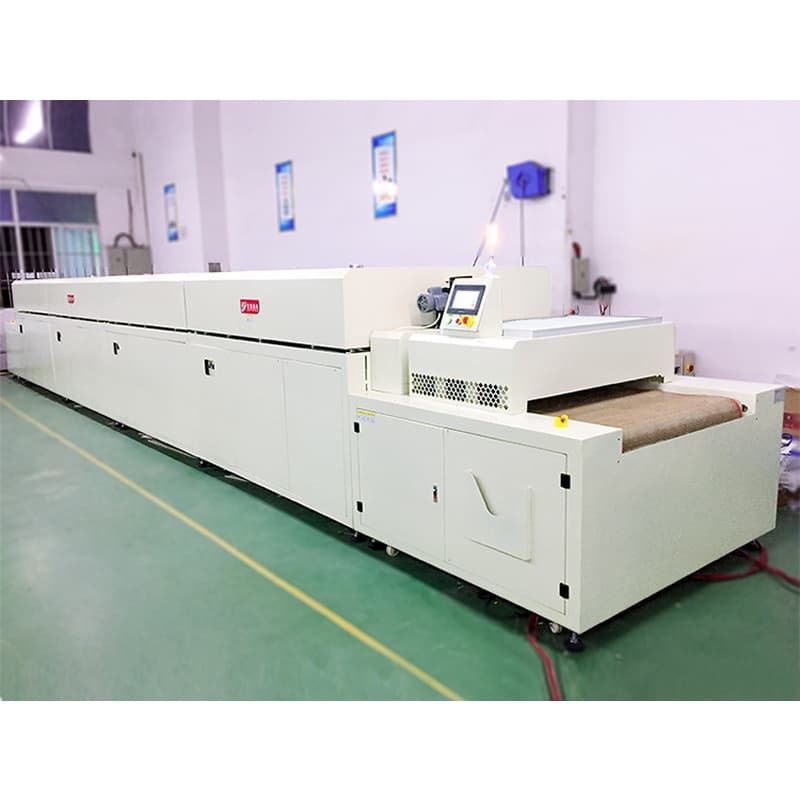

The photographs show views of the furnace section. For a complete-line quotation, provide the film and protective-layer thicknesses, roll dimensions, annealing requirements, shrinkage target and installation layout. Confirm the unwind/rewind arrangement and final operating conditions for the selected configuration.
Features and Operation
- Dual-shaft unwinding and rewinding with protective-film handling.
- Twenty-five-zone infrared and hot-air heating.
- EPC-guided rewinding with buffered film transfer.
Technical Specifications
- Film width
- 800 mm
- ITO film substrate thickness
- 0.05–0.25 mm
- Protective-layer thickness
- 0.05–0.15 mm
- Roll core diameters
- 3 / 6 in
- Maximum roll outside diameter
- 600 mm
- Conveyor width
- 900 mm
- Conveyor speed
- 0.5–3 m/min
- Heating length
- 25000 mm
- Heating zones
- 25
- Cooling length
- 1000 mm
- Typical material surface temperature
- 160 °C
- Maximum chamber setpoint
- 180 °C
- Transfer height
- 900 ±20 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
