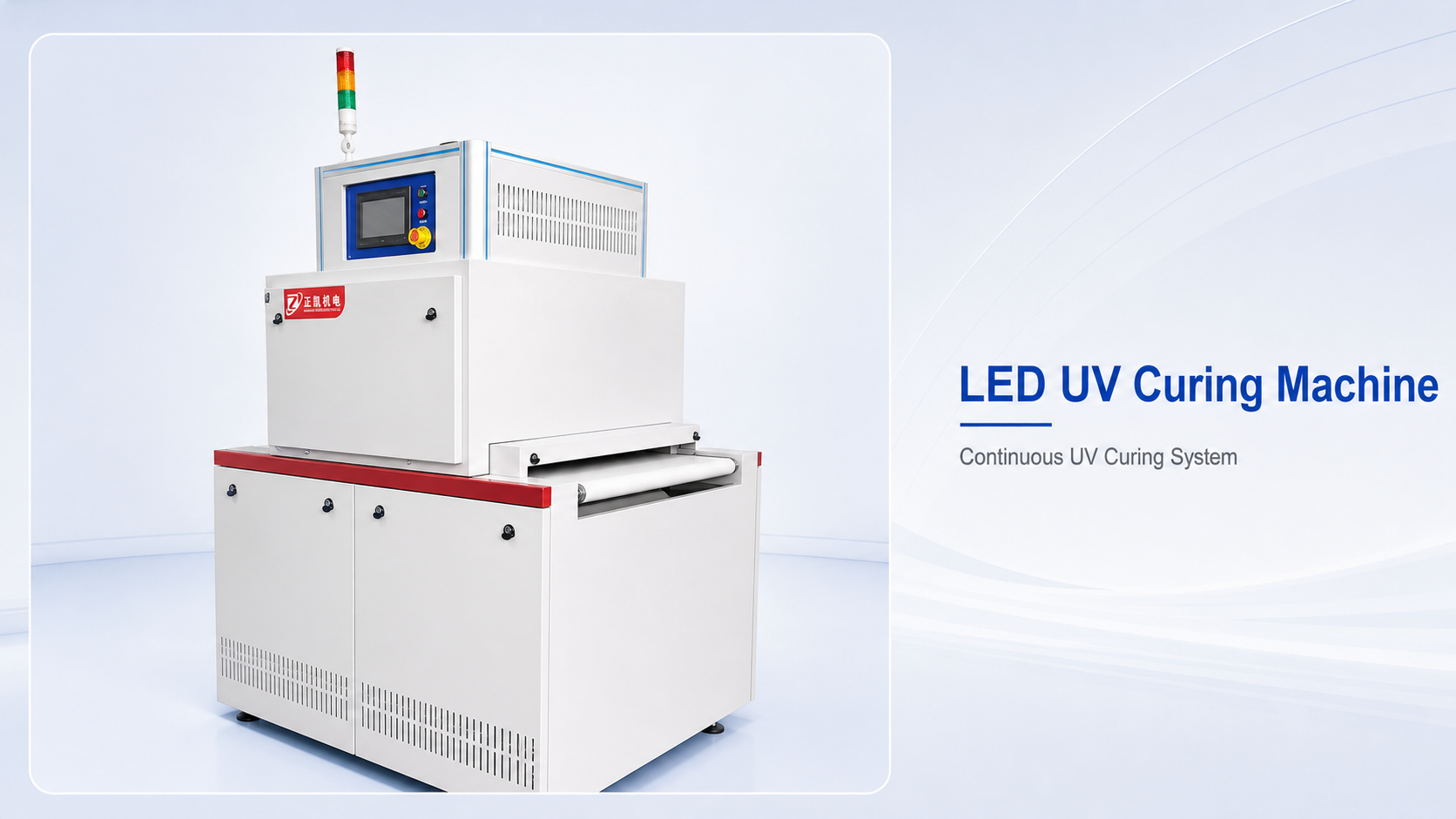

365 nm LED UV Curing Conveyor
Model: ZKLED-400-200
The ZKLED-400-200 provides LED UV curing for touch-panel full-lamination and post-print processes.
- 400 × 200 mm LED emitting area
- 365 ± 5 nm wavelength
- Adjustable irradiation distance

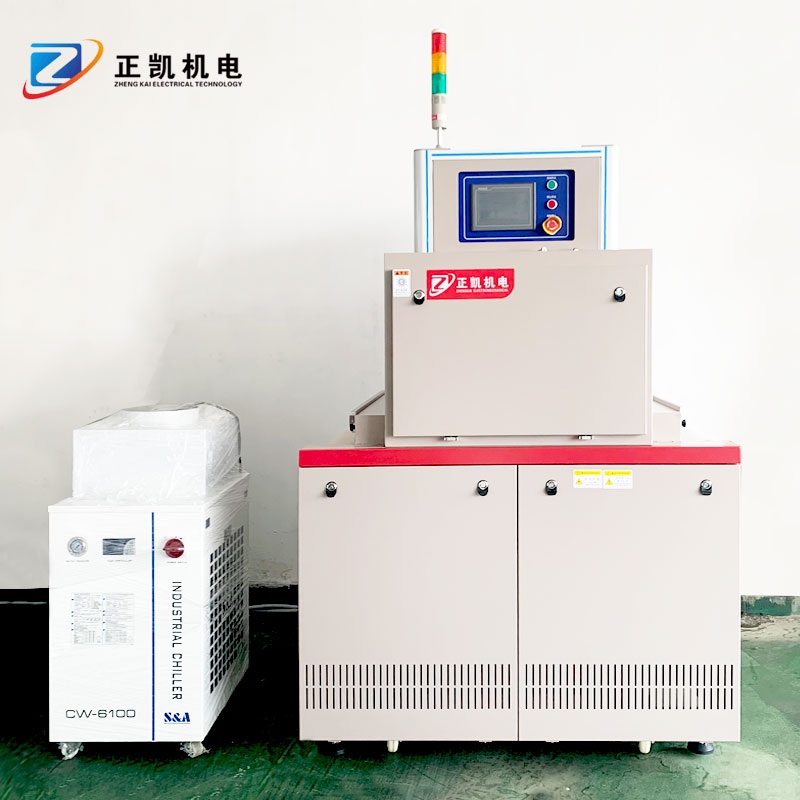

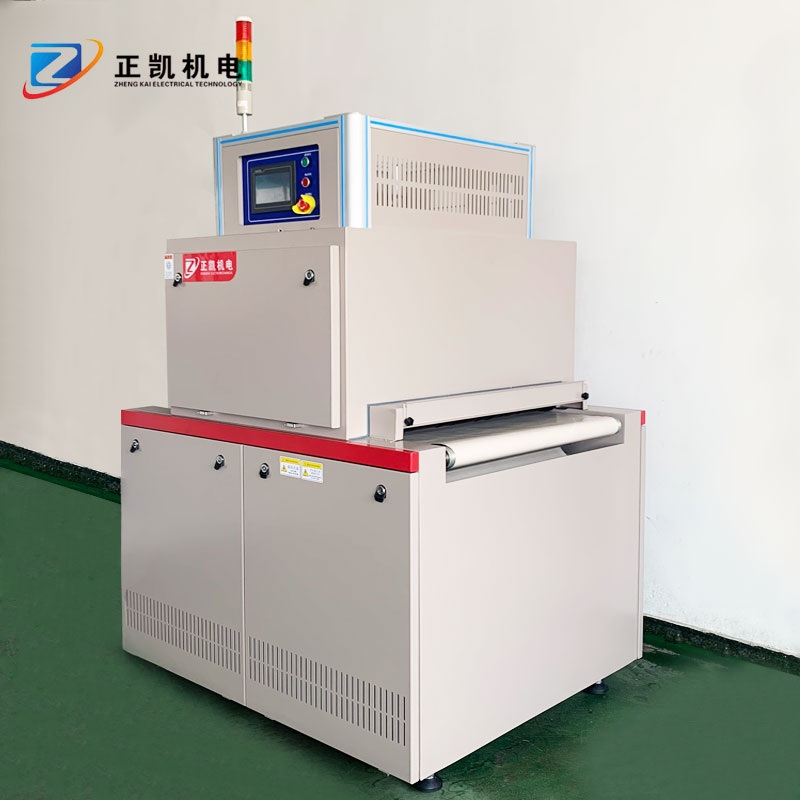

Product Images
Product Introduction
The ZKLED-400-200 provides LED UV curing for touch-panel full-lamination and post-print processes.
The effective curing width is 400 mm and the emitting area is 400 × 200 mm. The documented peak wavelength is 365 ± 5 nm, with conveyor speed adjustable from 1 to 4 m/min.
The irradiation distance can be adjusted from 5 to 50 mm. The documented supply is single-phase 220 V AC, 50 Hz, with connected power of 4 kW. Provide the adhesive or ink, panel dimensions and required exposure to confirm the process settings.
Features and Operation
- 400 × 200 mm LED emitting area
- 365 ± 5 nm wavelength
- Adjustable irradiation distance
Technical Specifications
- Effective curing width
- 400 mm
- Emitting area
- 400 × 200 mm
- Peak wavelength
- 365 ± 5 nm
- Conveyor speed
- 1–4 m/min
- Irradiation distance adjustment
- 5–50 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 4 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
