Two-Drawer Screen Drying Oven

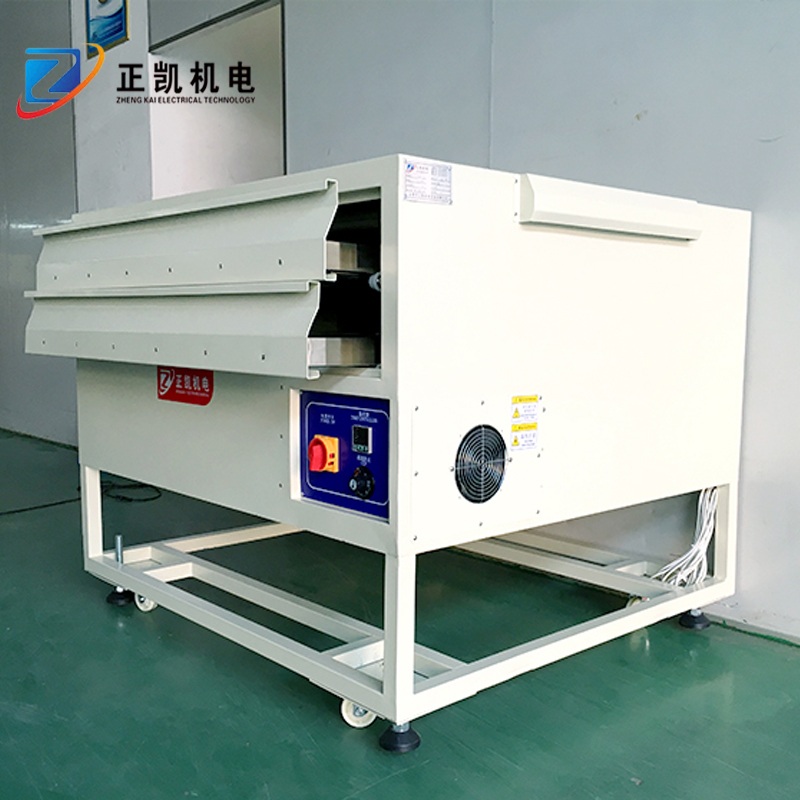

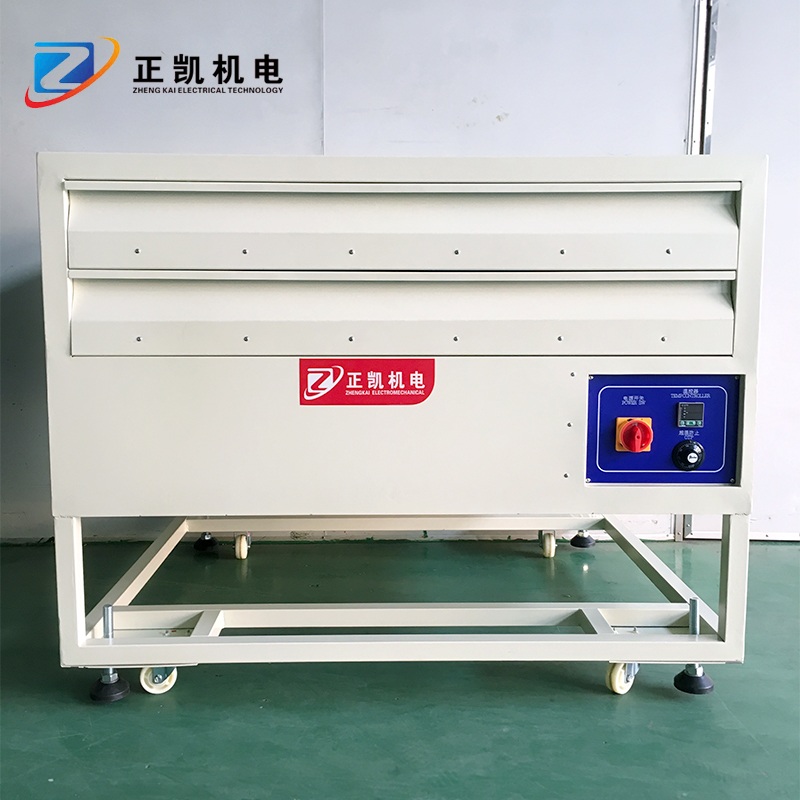

The ZKMO-W2 dries screen-printing screens in two drawers using forced circulating air. The documented configuration accepts screen frames up to 900 × 1200 mm and provides a 50 mm working height in each drawer.
- Two-drawer loading for screen frames.
- Forced circulating air and digital temperature control.
- Electronic process timer.
Product Images
Product Introduction
The ZKMO-W2 dries screen-printing screens in two drawers using forced circulating air. The documented configuration accepts screen frames up to 900 × 1200 mm and provides a 50 mm working height in each drawer.
A digital temperature controller and electronic timer set the drying process. The temperature range is ambient to 80 °C, with 50 °C listed as a typical setting. The air duct uses SUS430 stainless steel.
Provide the screen dimensions, emulsion type, drying temperature and loading frequency to review the configuration. Confirm the process settings for the actual screen and coating.
Features and Operation
- Two-drawer loading for screen frames.
- Forced circulating air and digital temperature control.
- Electronic process timer.
Technical Specifications
- Maximum screen-frame size
- 900 × 1200 mm
- Working height per drawer
- 50 mm
- Drawers
- 2
- Temperature range
- Ambient to 80 °C
- Typical temperature
- 50 °C
- Timer range
- 0–9999 min
- Power supply
- AC 220 V, single-phase, 50 Hz
- Installed power
- 3.5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
