Vacuum-Platform Film Laminating Machine
The ZKFTM-8060 is a vacuum-platform film laminating machine for touch-panel production, with film application and cutting modes selected to suit the film material.
- Vacuum product holding
- Servo-driven platform movement
- Traversing rotary film cutter

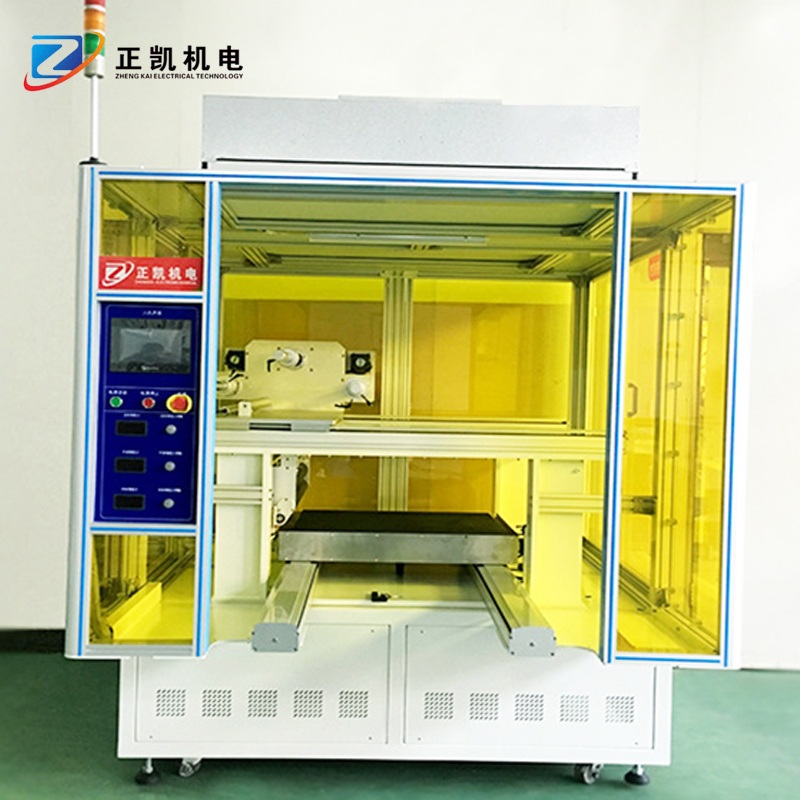

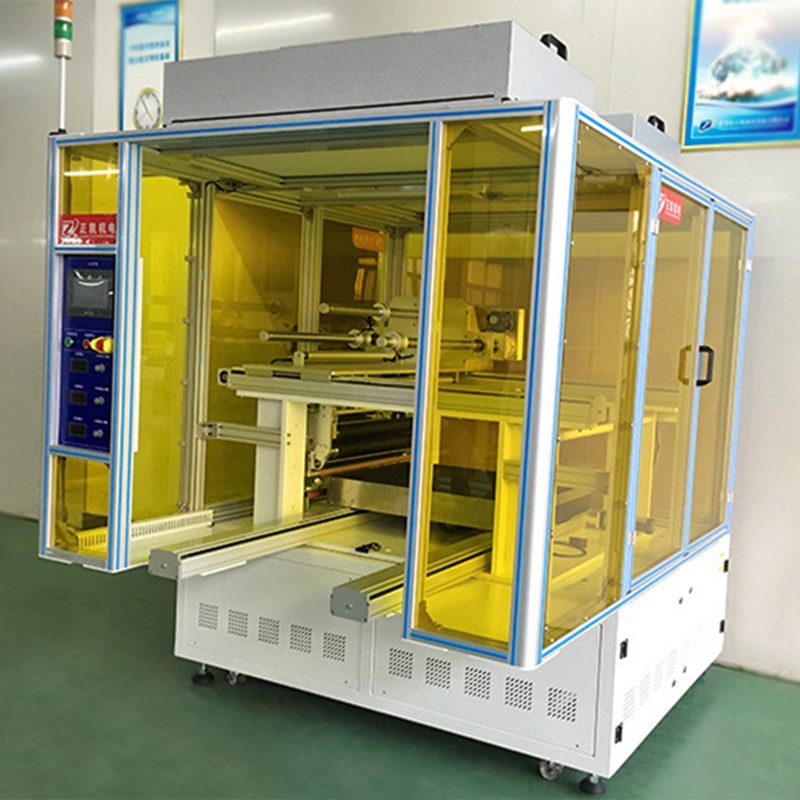

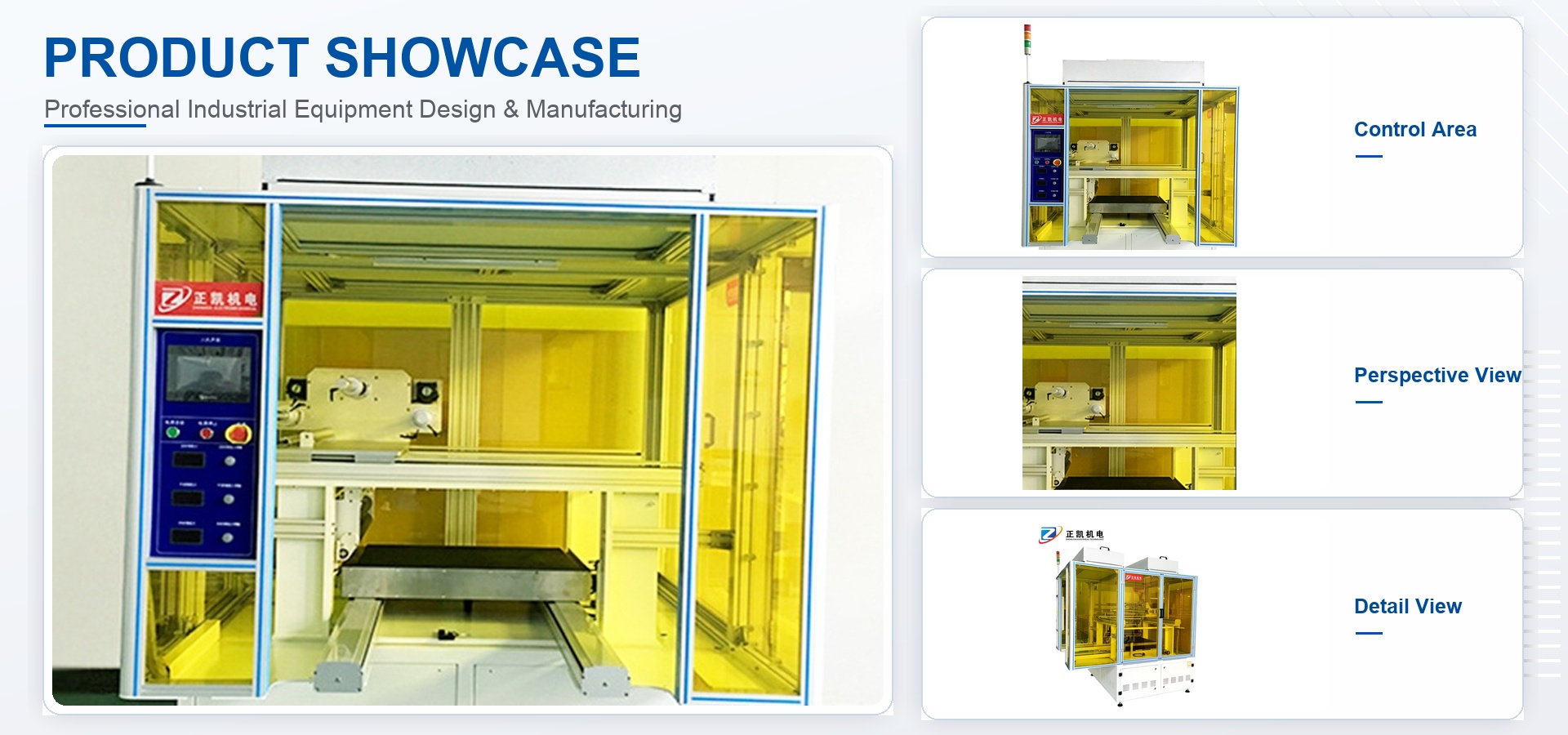

Product Images
Product Introduction
The ZKFTM-8060 is a vacuum-platform film laminating machine for touch-panel production, with film application and cutting modes selected to suit the film material.
The documented platform is 800 × 600 mm and accommodates a maximum laminating area of 750 × 550 mm. Vacuum holes hold the positioned product while a servo module moves the platform into and out of the laminating area.
A stepper-driven rotary blade traverses the film for cutting. The configuration includes release-film take-up, PLC operator-interface control and a static-elimination bar at the peeling position. Provide the substrate size and film construction to confirm the process.
Features and Operation
- Vacuum product holding
- Servo-driven platform movement
- Traversing rotary film cutter
Technical Specifications
- Maximum laminating area
- 750 × 550 mm
- Platform size
- 800 × 600 mm
- Maximum material width
- 600 mm
- Material thickness
- 0.02–0.2 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 3 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
