Wide-Web Roll-to-Sheet Cutting Line
Model: ZKL-16
The ZKL-16 unwinds ITO film and cuts it into sheets for touch-panel production.
- 1600 mm maximum cutting width
- Vacuum holding at the cutting station
- Adjustable edge-trimming cutters
Product Images
Product Introduction

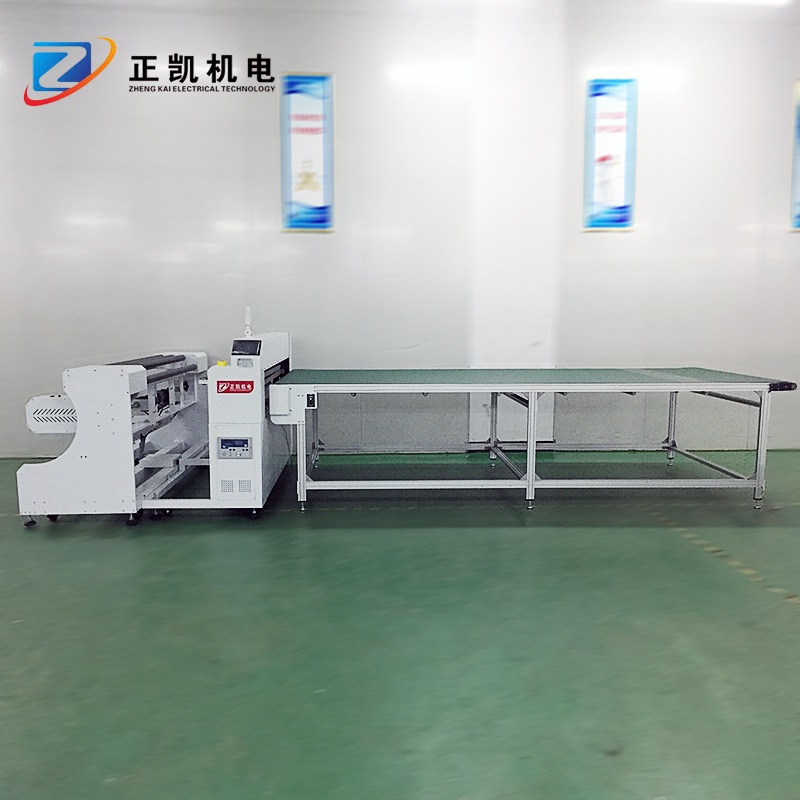

The ZKL-16 unwinds ITO film and cuts it into sheets for touch-panel production.
The documented maximum cutting width is 1600 mm, with cut lengths from 200 to 1500 mm and speed from 1 to 8 m/min. A module-driven rotary blade traverses the material above a vacuum holding plate.

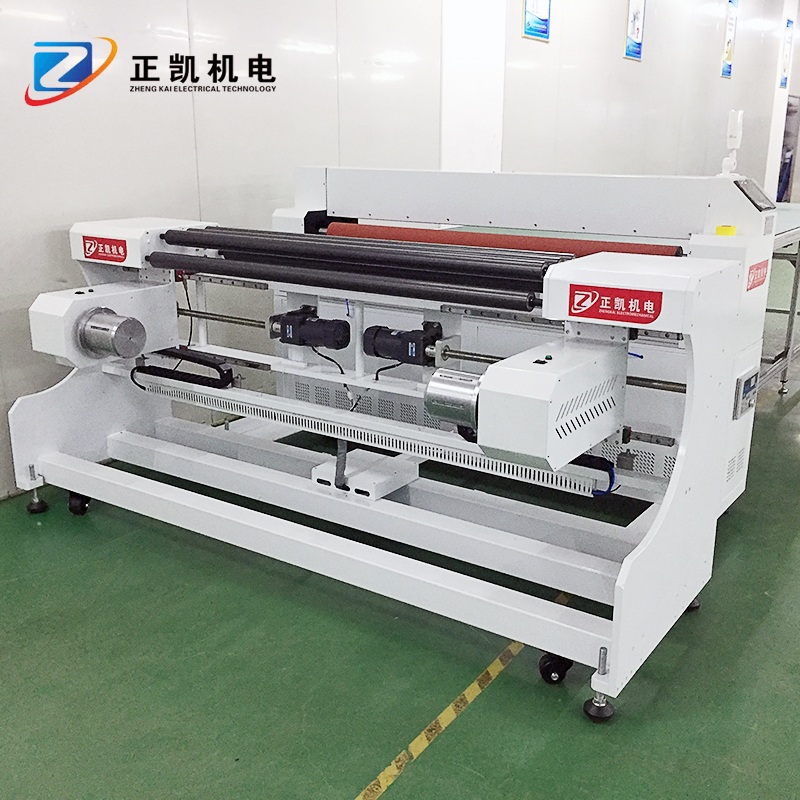

Two edge-trimming cutters adjust to the required width. An outlet conveyor transfers the cut sheets to downstream equipment or manual collection. PLC and operator-interface controls support setup; provide the web material and sheet dimensions to confirm the configuration.
Features and Operation
- 1600 mm maximum cutting width
- Vacuum holding at the cutting station
- Adjustable edge-trimming cutters
Technical Specifications
- Maximum cutting width
- 1600 mm
- Cut length
- 200–1500 mm
- Cutting speed
- 1–8 m/min
- Material thickness
- 0.2–1 mm
- Maximum roll diameter
- 600 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 2 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
