Large-Format Sheet Laminating Machine
The ZKFM-R1500 applies film to large sheet products in touch-panel production, with upper and lower rollers for double-sided application.
- 1500 mm maximum laminating width
- Double-sided sheet-film application
- Dedicated FPC-clearance area

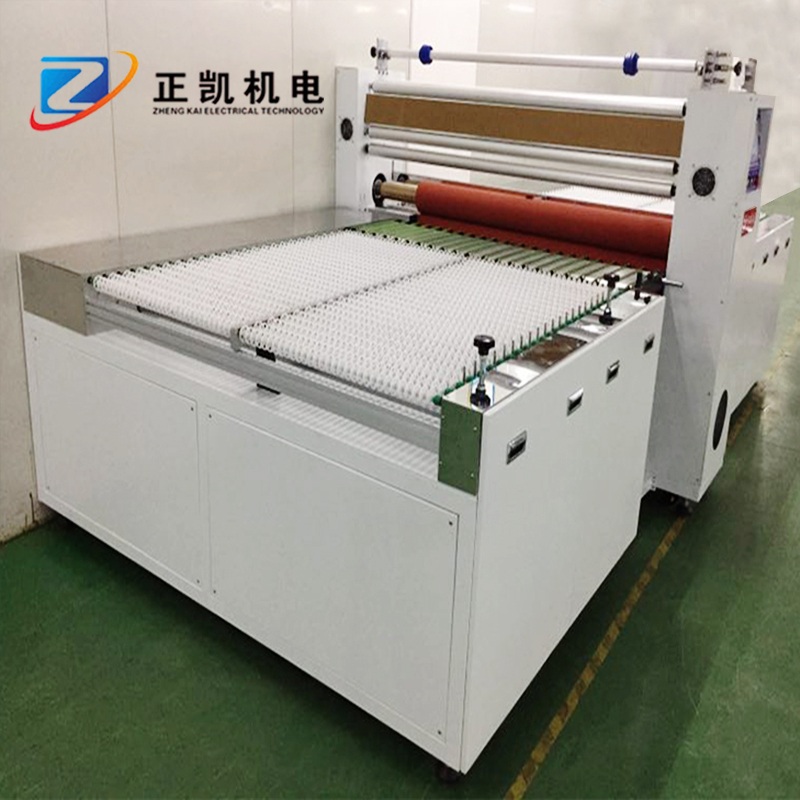

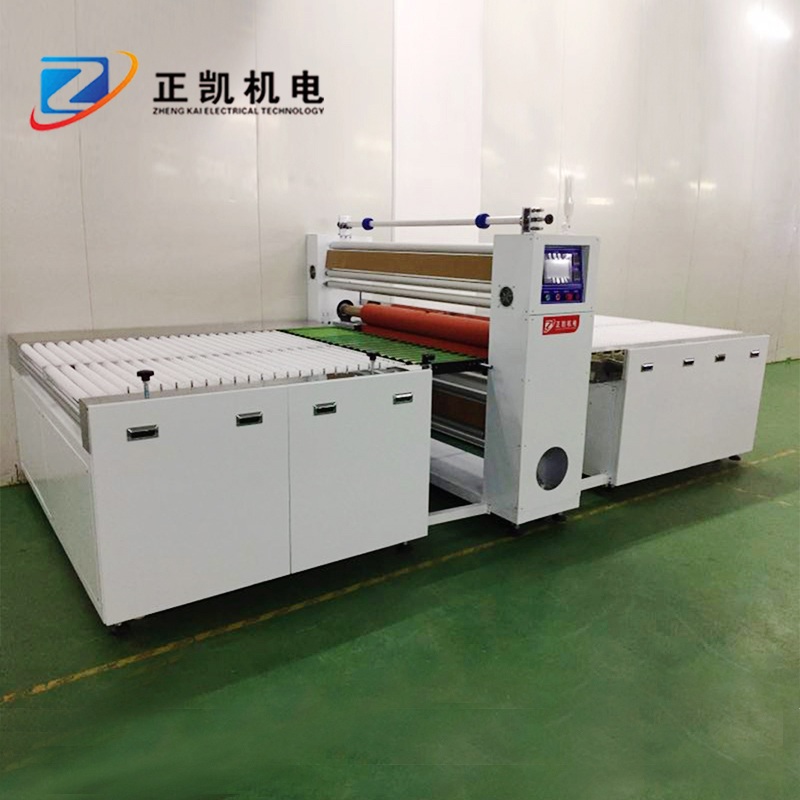

Product Images
Product Introduction
The ZKFM-R1500 applies film to large sheet products in touch-panel production, with upper and lower rollers for double-sided application.
The maximum documented laminating width is 1500 mm, with product thickness from 0.1 to 5 mm and laminating speed from 0 to 5 m/min. The 1800 mm conveyor surface includes a 300 mm FPC-clearance area; it is not the laminating width.
Servo-driven alignment mechanisms position the sheets. Pneumatic lifting of the upper laminating roller assists film threading, and an optical sensor detects the trailing edge for film cutting. Provide the sheet size, film and FPC geometry for configuration review.
Features and Operation
- 1500 mm maximum laminating width
- Double-sided sheet-film application
- Dedicated FPC-clearance area
Technical Specifications
- Maximum laminating width
- 1500 mm
- Product thickness
- 0.1–5 mm
- Laminating speed
- 0–5 m/min
- Maximum film-roll diameter
- 300 mm
- Conveyor height
- 950 ± 20 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
