Manual Dry-Film Laminator
The ZKL-M25R laminates dry film for yellow-light processes and can also be used for OCA bonding and protective-film application on finished or semi-finished panels. Operators feed individual panels through heated pressure rollers; transport speed is adjustable to suit the film and panel.
- Manual panel feeding with motor-driven transport.
- Heated upper and lower pressure rollers.
- Guided upper roller and pneumatic pressure supply.

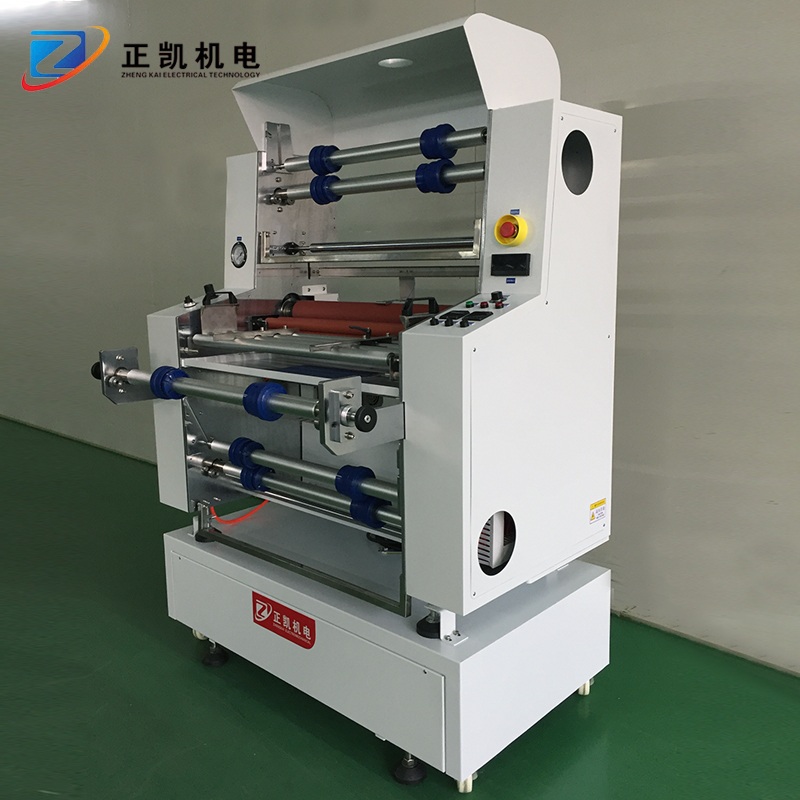

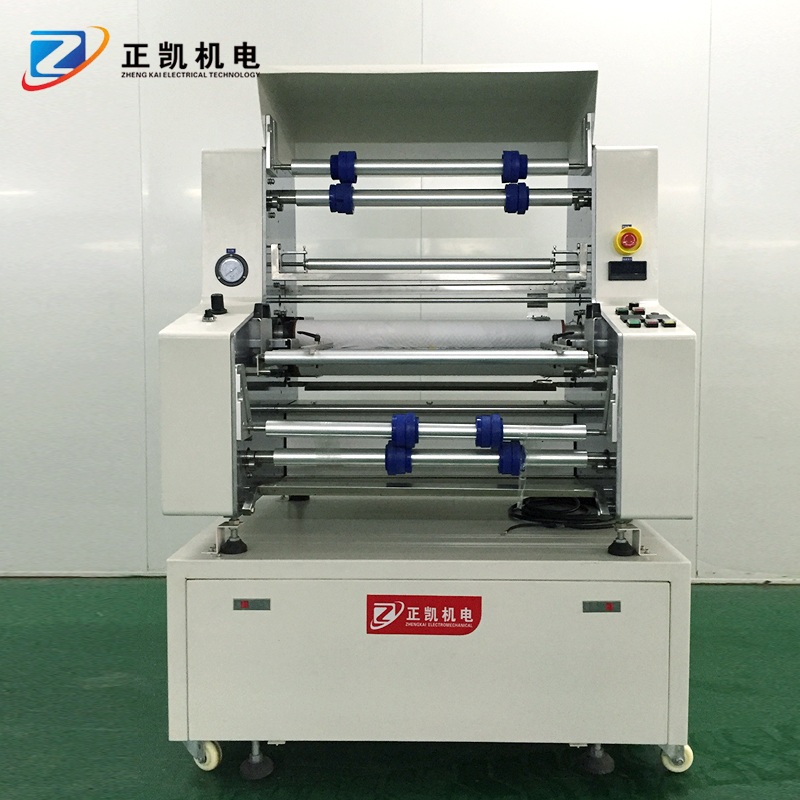

Product Images
Product Introduction
The ZKL-M25R laminates dry film for yellow-light processes and can also be used for OCA bonding and protective-film application on finished or semi-finished panels. Operators feed individual panels through heated pressure rollers; transport speed is adjustable to suit the film and panel.
The upper pressure roller runs on guides at both ends. Cartridge heaters heat the rollers, while a motor and geared drive transport the panel. Select the film width, panel thickness and process temperature for the material being laminated.
For a quotation, provide the panel dimensions and thickness, film type and width, required bonding temperature and daily production volume.
Features and Operation
- Manual panel feeding with motor-driven transport.
- Heated upper and lower pressure rollers.
- Guided upper roller and pneumatic pressure supply.
Technical Specifications
- Transport speed
- 0–3 m/min
- Maximum temperature
- 130 °C
- Panel length and width
- 250–635 × 250–635 mm
- Panel thickness
- 0.05–3.2 mm
- Dry-film width
- 250–610 mm
- Dry-film thickness
- 15–76 μm
- Roller dimensions
- Ø78.6 × 760 mm
- Power supply
- AC 220 V, single-phase, 50 Hz; 3.5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
