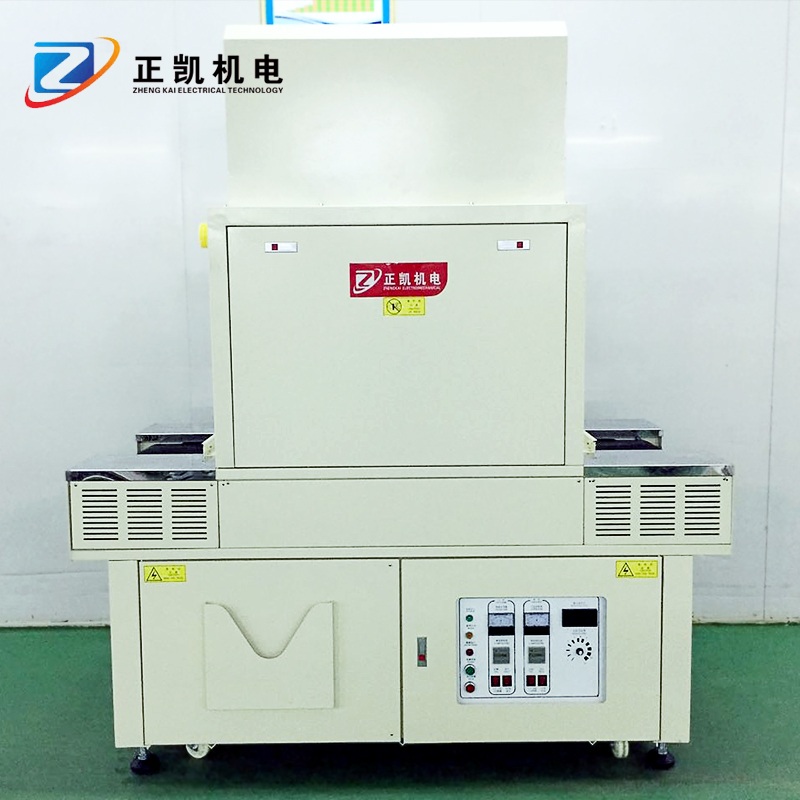

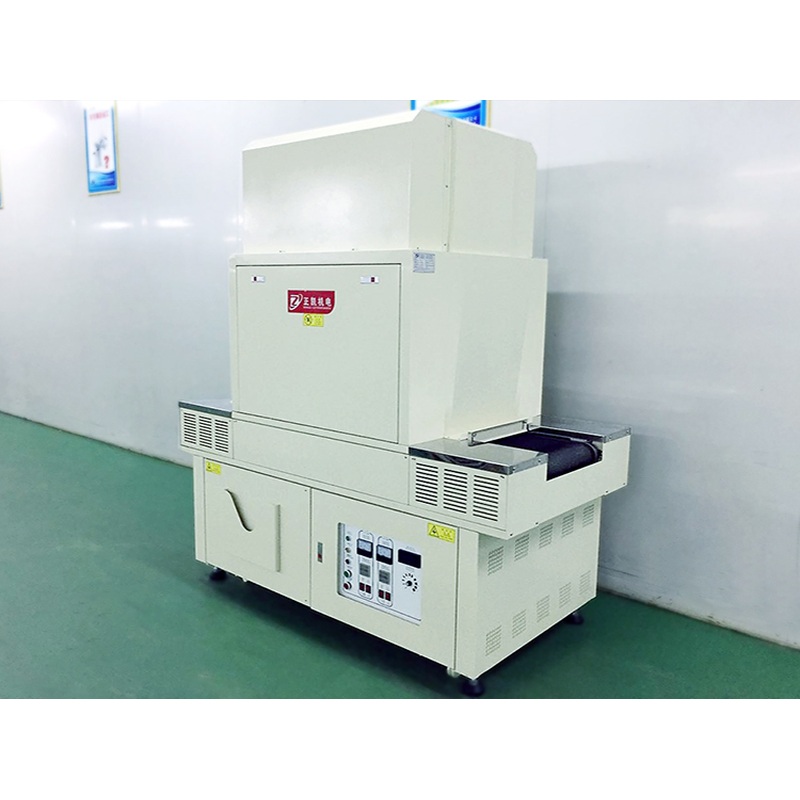

Two-Lamp UV Curing Conveyor for LCD and Touch Panels
The ZKUV-482 cures UV-reactive materials after surface printing or adhesive dispensing on LCD, touch-panel and similar workpieces.
- Two 4.8 kW UV lamps
- Adjustable conveyor speed
- Automatic lifting inlet light shields
Product Images
Product Introduction
The ZKUV-482 cures UV-reactive materials after surface printing or adhesive dispensing on LCD, touch-panel and similar workpieces.
The documented configuration uses two 4.8 kW UV lamps with a 400 mm emitting length and a 400 mm conveyor width. Conveyor speed is adjustable up to 12 m/min, with high/low lamp output selection.
The inlet has two automatic lifting light shields. The control panel includes lamp-current indication, operating-hour tracking and overtemperature indication. Provide the ink or adhesive, workpiece dimensions and exposure requirements to confirm the curing process.
Features and Operation
- Two 4.8 kW UV lamps
- Adjustable conveyor speed
- Automatic lifting inlet light shields
Technical Specifications
- Conveyor width
- 400 mm
- UV lamp count
- 2
- Rated power per UV lamp
- 4.8 kW
- Lamp emitting length
- 400 mm
- Maximum conveyor speed
- 12 m/min
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 13 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
