Touch-Panel Laminating and Cutting Machine
The ZKFM-300S2 applies protective film and cuts it into individual pieces for touch-panel production, with handling provisions for products carrying FPC tails.
- Stepper-driven protective-film cutter
- Antistatic support for FPC tails
- Suction transfer at the outlet

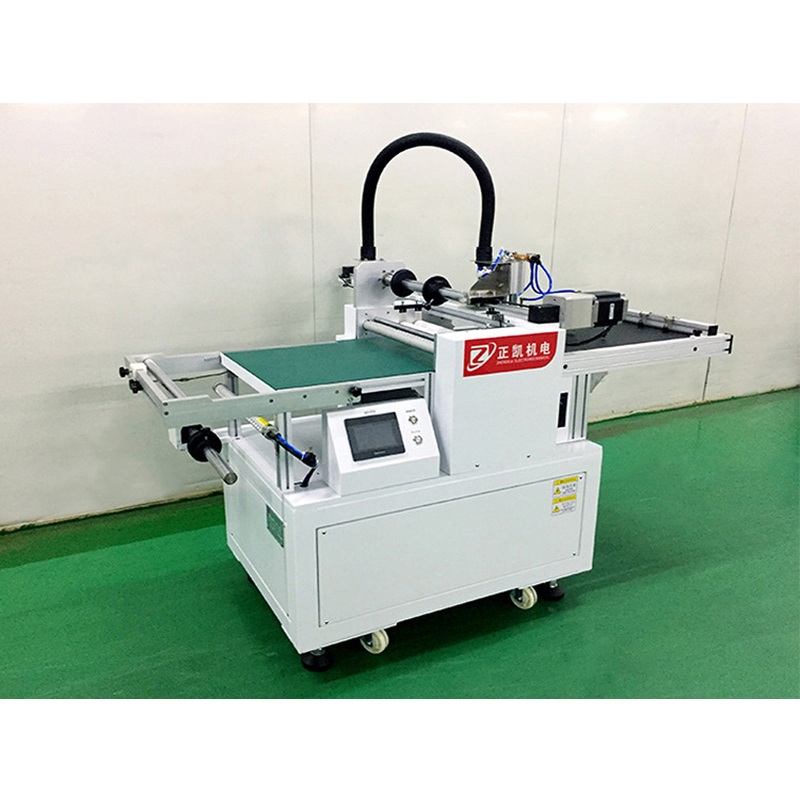

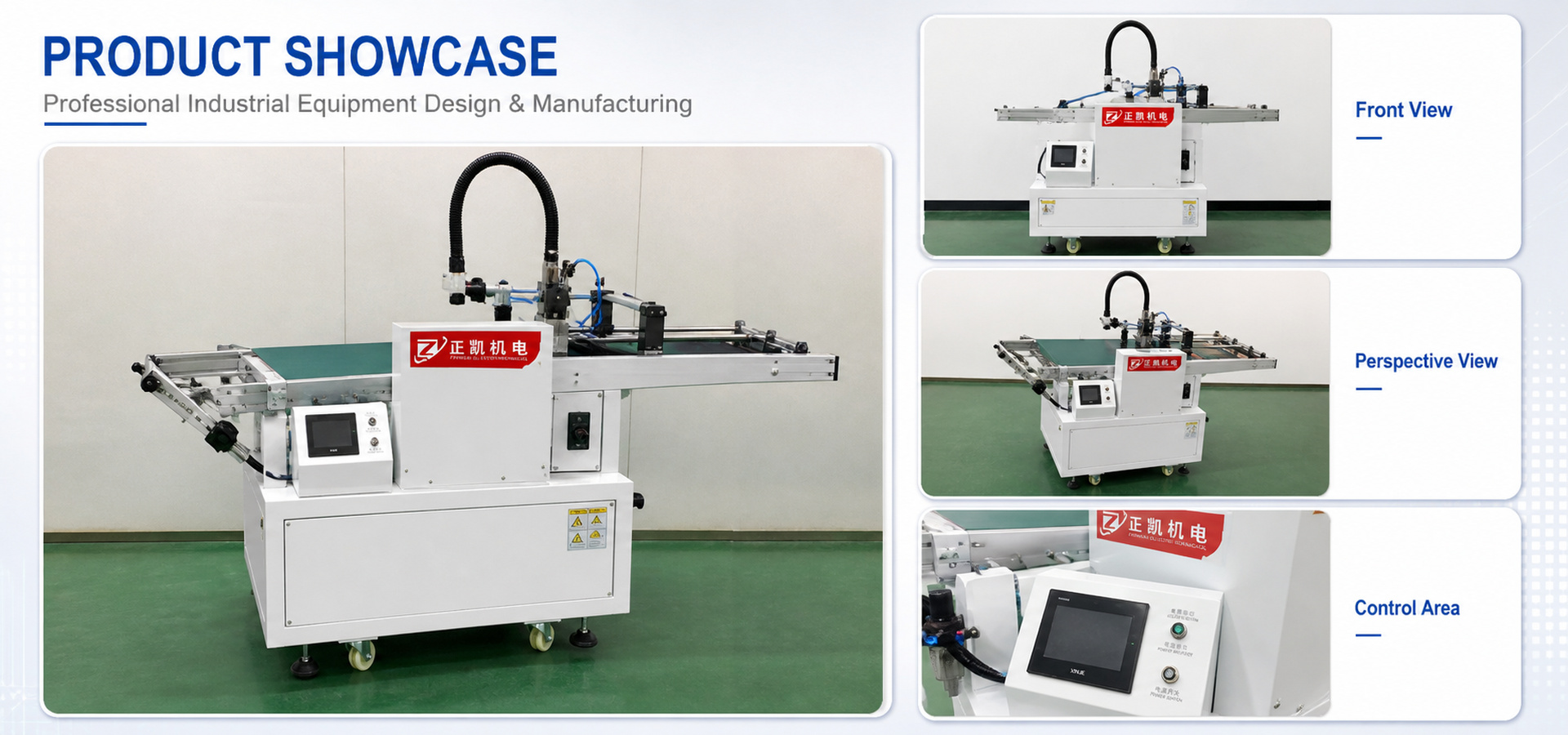

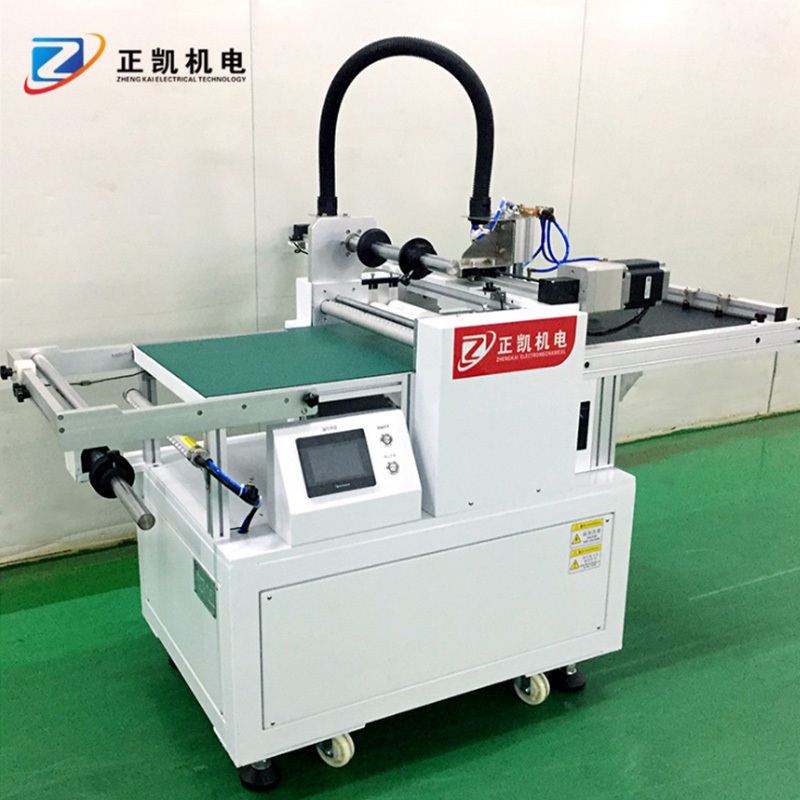

Product Images
Product Introduction
The ZKFM-300S2 applies protective film and cuts it into individual pieces for touch-panel production, with handling provisions for products carrying FPC tails.
The documented configuration uses a stepper-driven film cutter, manually lifted upper rollers and antistatic support plates around the FPC path. Upper and lower film positions each have an ionizing bar.
At the outlet, a sensor detects the product and a suction handling mechanism transfers it to an adjacent conveyor. PLC and operator-interface controls support setup. Provide panel dimensions and FPC geometry to confirm clearances and transfer requirements.
Features and Operation
- Stepper-driven protective-film cutter
- Antistatic support for FPC tails
- Suction transfer at the outlet
Technical Specifications
- Cut length
- 200–600 mm
- Cutting speed
- 0–10 m/min
- Maximum roll diameter
- 160 mm
- Film allowance at leading/trailing edges
- 5–10 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 1 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
