Dual-Belt IR and Hot-Air Tunnel Furnace
The ZKLCO-55-2 bakes printed ink on glass cover plates. Trays enter from the printing process, travel through infrared and hot-air heating, then pass through cooling before manual collection.
- Dual-belt conveyor with a central divider.
- Separately controlled infrared and hot-air heating.
- Powered heating-cover opening and conveyor cleaning roller.

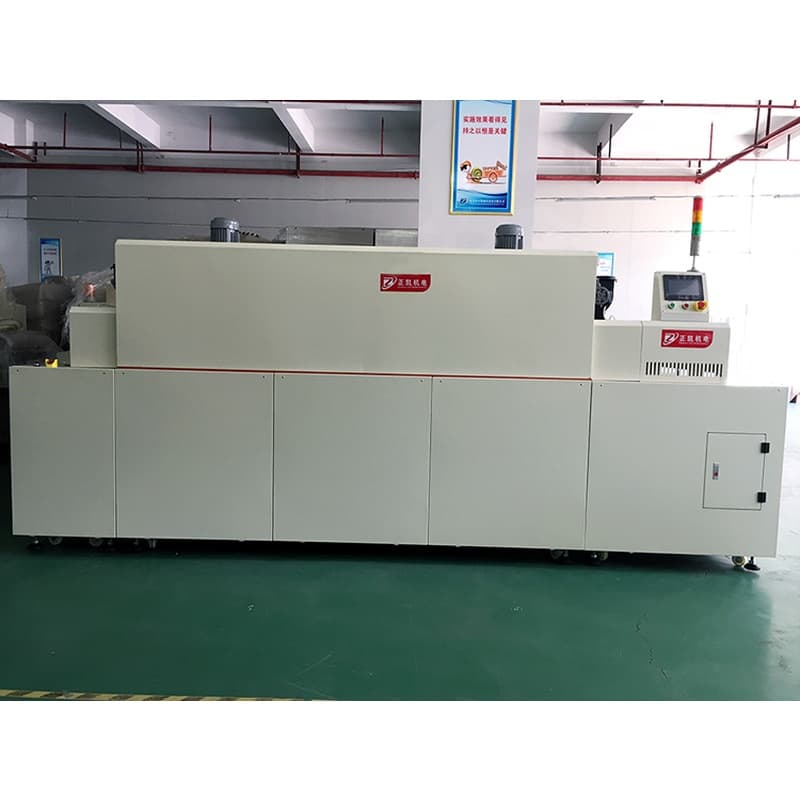

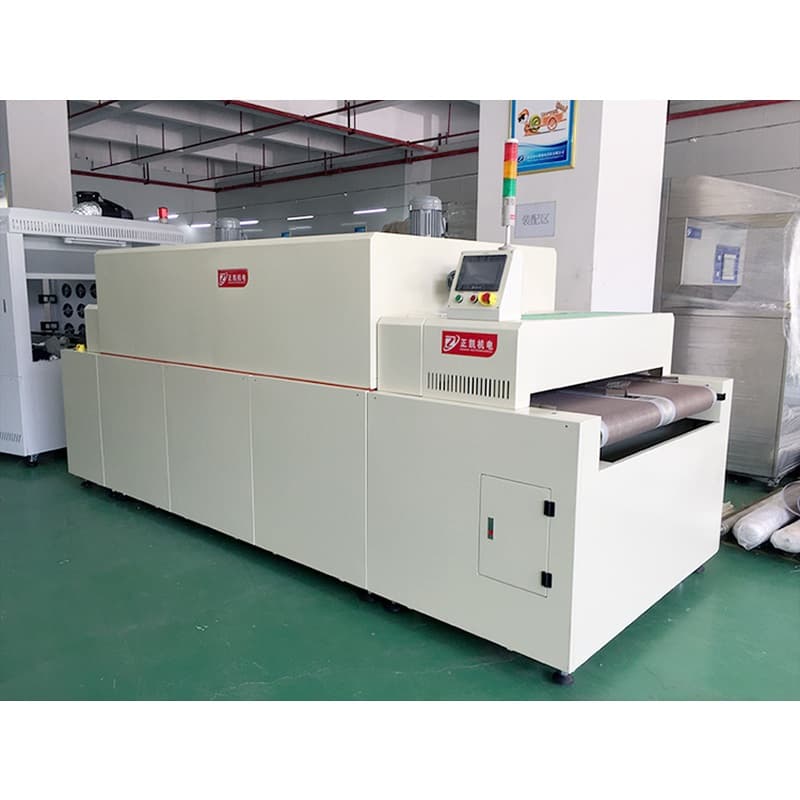

Product Images
Product Introduction
The ZKLCO-55-2 bakes printed ink on glass cover plates. Trays enter from the printing process, travel through infrared and hot-air heating, then pass through cooling before manual collection.
The furnace has two conveyor belts with a central divider. Infrared and hot-air output can be controlled separately. Filtered air flows down towards the products and returns at the ends of the heating section.
The heating cover opens with an electric cylinder for maintenance. A conveyor cleaning roller and an inlet dust cover support routine cleaning. Provide the tray dimensions, ink type and required cure profile for process review.
Features and Operation
- Dual-belt conveyor with a central divider.
- Separately controlled infrared and hot-air heating.
- Powered heating-cover opening and conveyor cleaning roller.
Technical Specifications
- Supported tray sizes
- 500 × 400 or 470 × 320 mm
- Tray clearance
- 50 mm
- Conveyor width
- 550 mm, dual-belt arrangement
- Conveyor speed
- 0.5–3 m/min
- Heating section length
- 2500 mm
- Cooling section length
- 450 mm
- Maximum chamber setpoint
- 200 °C
- Typical product surface temperature
- 150 °C
Specifications describe the documented configuration. Confirm the final configuration for your application.
