Three-Level Tunnel Furnace for Glass Lamination

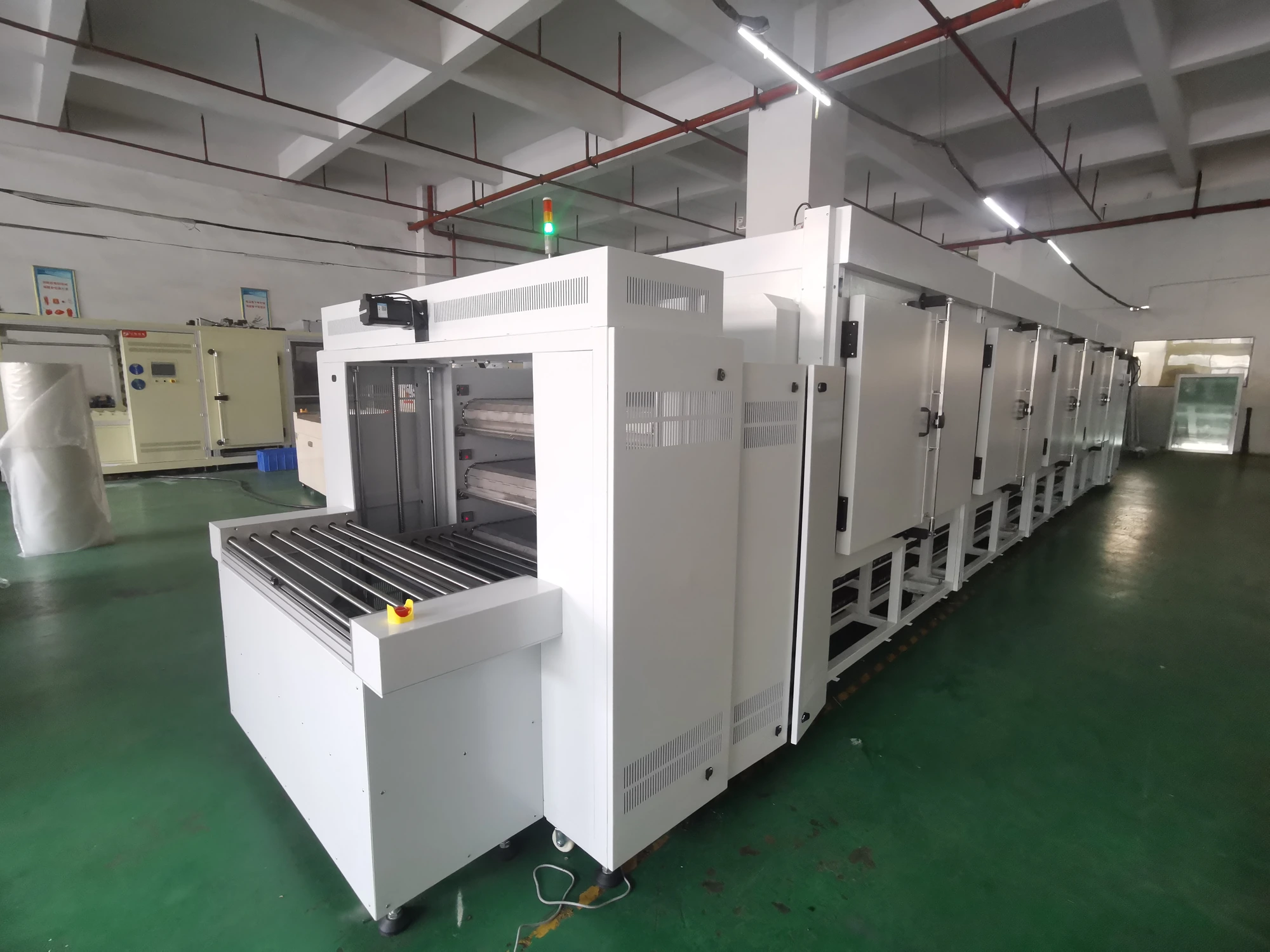

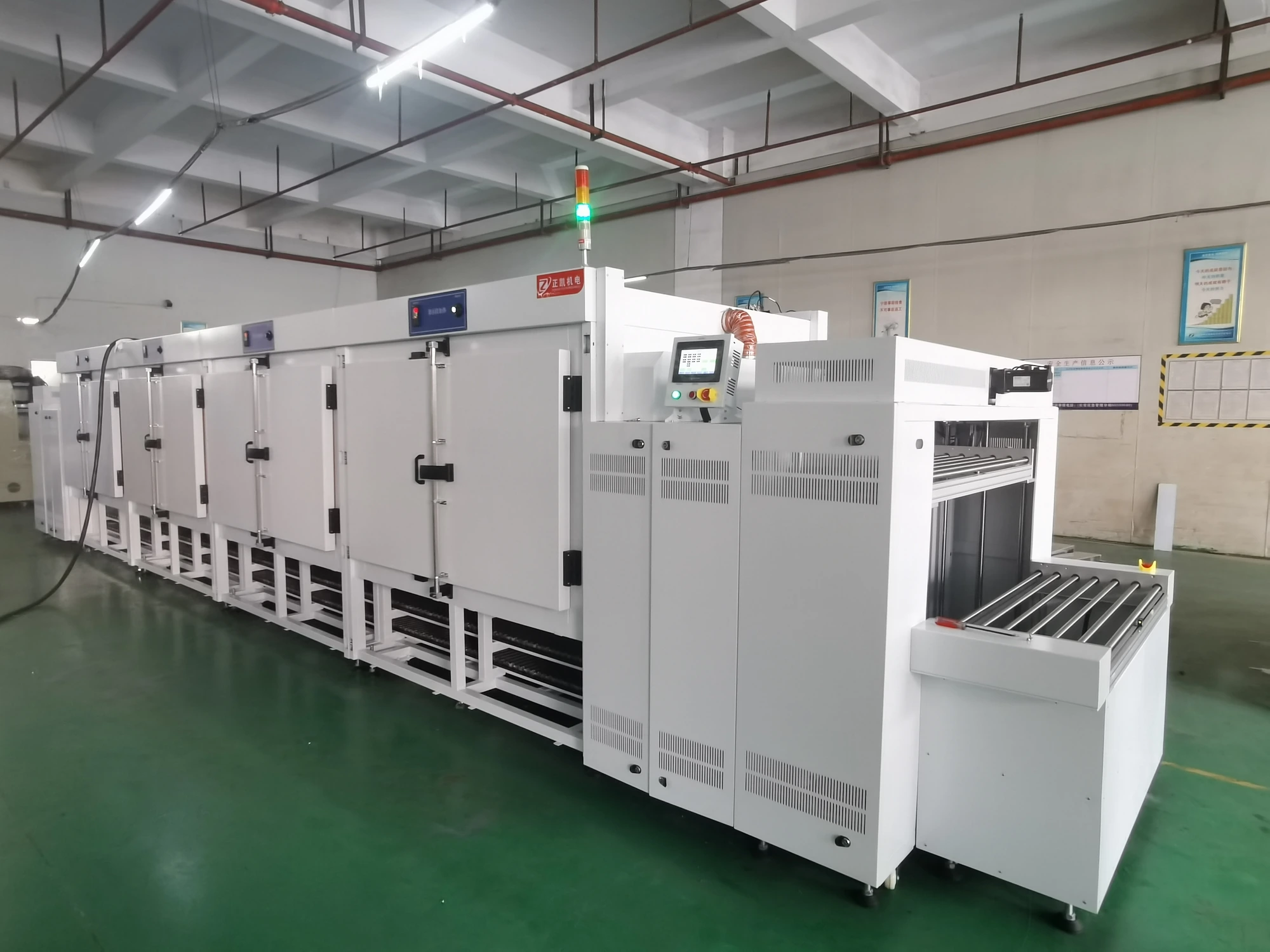

The ZKCO-12-4 is a three-level tunnel furnace for baking laminated glass. A lifting platform transfers products onto three independently driven conveyor levels.
- Three independently driven conveyor levels
- Lifting-platform loading
- Hot-air circulation with PID control
Product Images
Product Introduction
The ZKCO-12-4 is a three-level tunnel furnace for baking laminated glass. A lifting platform transfers products onto three independently driven conveyor levels.
The documented effective conveyor width is 1200 mm, with transport speed adjustable from 0.2 to 5 m/min. Each level has a 7.5-metre heating section, giving a combined heating path of 22.5 metres across all three levels.
Hot-air circulation, PID temperature controllers and SSR output support heating. The maximum furnace temperature setting is 150 °C. Provide the laminated-glass construction, required heating profile and loading arrangement to confirm the configuration.
Features and Operation
- Three independently driven conveyor levels
- Lifting-platform loading
- Hot-air circulation with PID control
Technical Specifications
- Effective conveyor width
- 1200 mm
- Conveyor speed
- 0.2–5 m/min
- Conveyor levels
- 3
- Heating length per level
- 7.5 m
- Combined heating path, all levels
- 22.5 m
- Maximum furnace temperature setting
- 150 °C
Specifications describe the documented configuration. Confirm the final configuration for your application.
