PET Dust-Cleaning, Laminating and Sheet Cutting Machine
This ZKR2R-600 configuration removes dust from PET/ITO film, applies protective film to one side and cuts the roll material into sheets for automatic collection.
- Double-sided dust removal before single-sided lamination
- Servo feed and guillotine cutting
- Automatic vacuum sheet collection

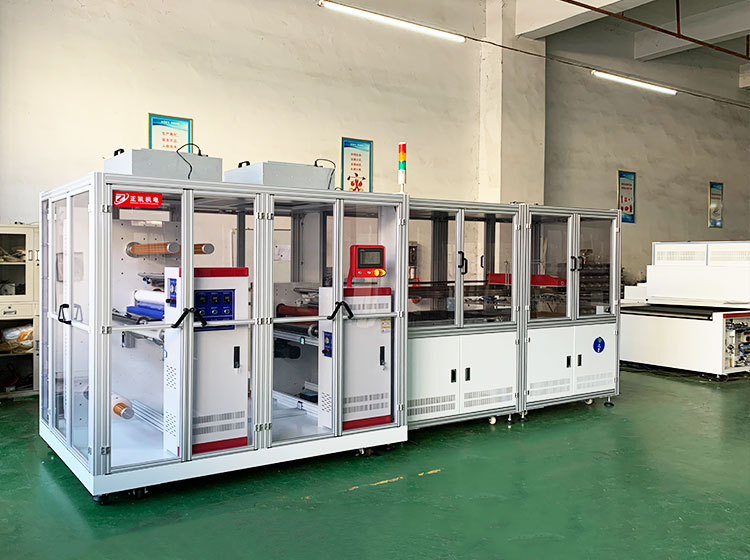

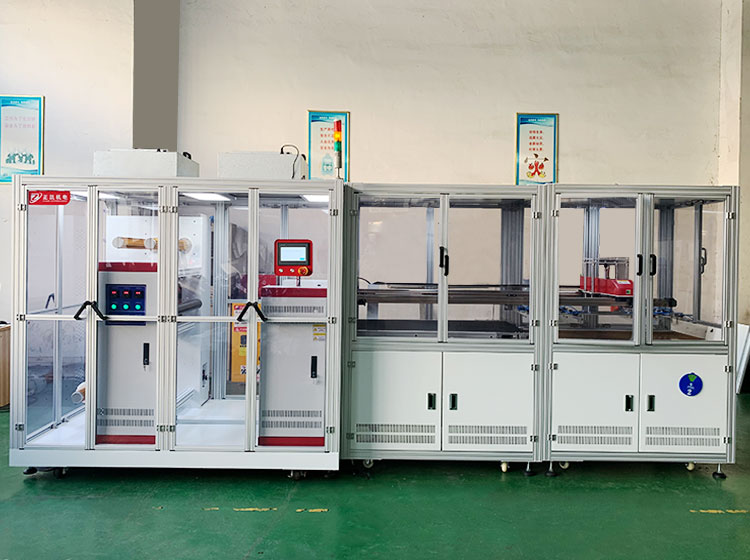

Product Images
Product Introduction
This ZKR2R-600 configuration removes dust from PET/ITO film, applies protective film to one side and cuts the roll material into sheets for automatic collection.
Double-sided dust-removal rollers clean the substrate before single-sided lamination. The maximum material width is 600 mm and material thickness is 0.1–0.5 mm. Laminating speed is adjustable from 0 to 5 m/min, with cut lengths from 100 to 1200 mm.
Servo-driven feed positions the material for a guillotine cut. A vacuum handling unit stacks the finished sheets, while PLC touchscreen controls support operation. Provide the substrate, protective-film construction and sheet dimensions to confirm the configuration.
Features and Operation
- Double-sided dust removal before single-sided lamination
- Servo feed and guillotine cutting
- Automatic vacuum sheet collection
Technical Specifications
- Maximum material width
- 600 mm
- Material thickness
- 0.1–0.5 mm
- Laminating speed
- 0–5 m/min
- Cut length
- 100–1200 mm
- Material roll diameter
- 300 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
