ITO-Film Protective Laminating and Cutting Machine
The ZKFM-650 applies protective film to ITO film after printed silver circuits have passed through an IR curing furnace, then cuts the material into individual sheets.
- Protective lamination after ITO-film circuit curing
- Traversing film cutter
- Vacuum holding platform at the cutter

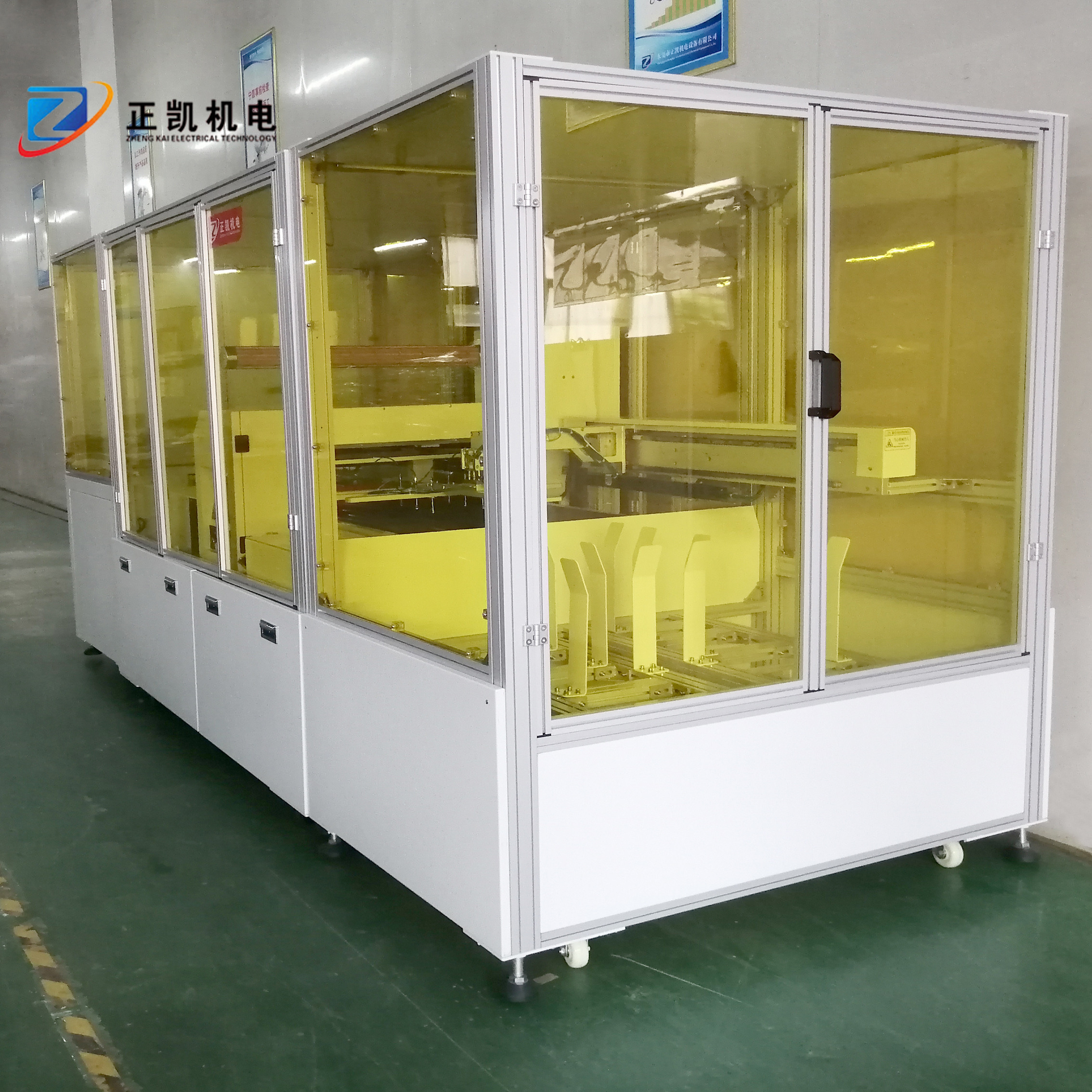

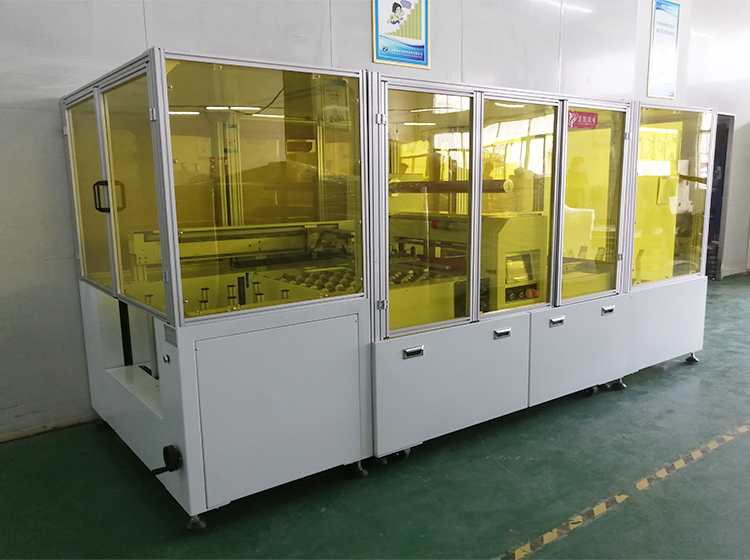

Product Images
Product Introduction
The ZKFM-650 applies protective film to ITO film after printed silver circuits have passed through an IR curing furnace, then cuts the material into individual sheets.
The documented cutting width is 200–600 mm for material 0.1–1 mm thick. Laminating speed is adjustable from 0 to 3 m/min. The film supply uses an air-expanding shaft and magnetic-powder braking.
A traversing blade cuts the protective film above a vacuum holding platform. The configuration also includes material alignment, pneumatically lifted upper rollers and air jets ahead of the laminating rollers. PLC and operator-interface controls support setup. Share the substrate, sheet size and film requirements to confirm the process.
Features and Operation
- Protective lamination after ITO-film circuit curing
- Traversing film cutter
- Vacuum holding platform at the cutter
Technical Specifications
- Cut width
- 200–600 mm
- Material thickness
- 0.1–1 mm
- Protective-film thickness
- 15–76 μm
- Laminating speed
- 0–3 m/min
- Conveyor height
- 850 ± 20 mm
- Film allowance at leading/trailing edges
- 10 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 1 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
