Double-Sided Sheet Cleaning Machine
The ZKCC-650 cleans dust and static from ITO film and glass sheets used in touch-panel production. Sheets travel through cleaning rollers on an antistatic PU belt, with cleaning applied to both sides.
- Double-sided roller cleaning with two dust-collection rollers.
- Static-elimination bars at both inlet and outlet.
- Antistatic PU conveyor belts and anti-wrap mechanism.

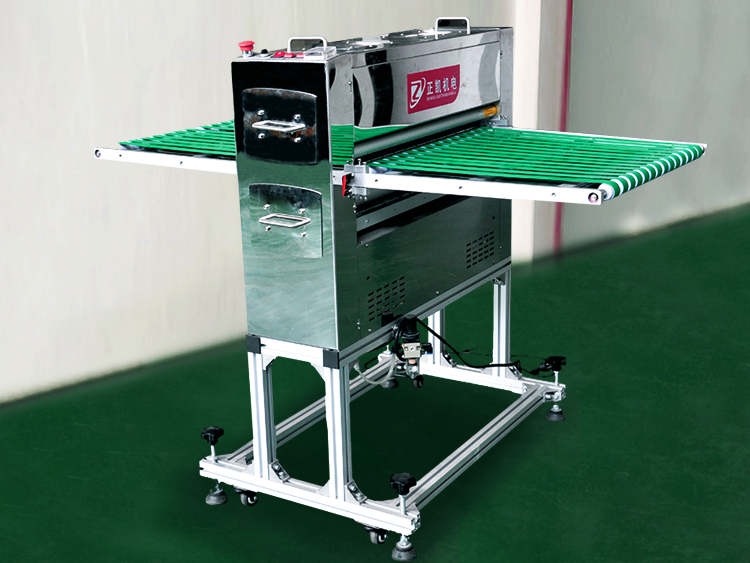

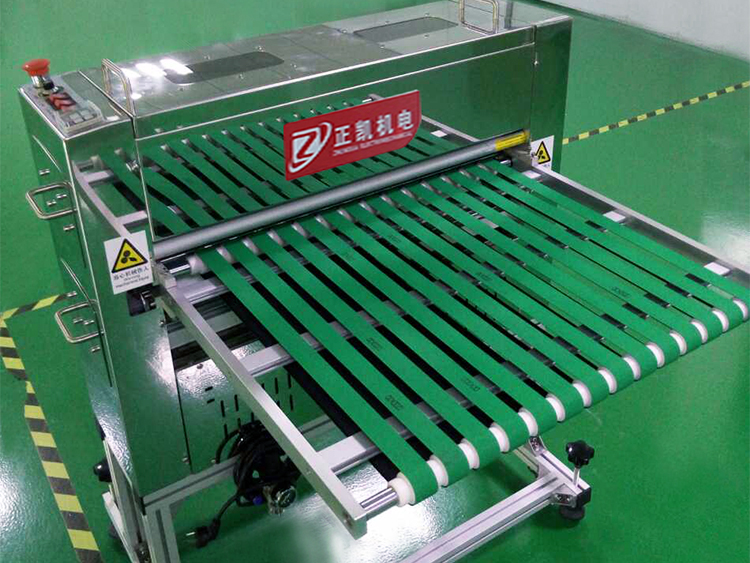

Product Images
Product Introduction
The ZKCC-650 cleans dust and static from ITO film and glass sheets used in touch-panel production. Sheets travel through cleaning rollers on an antistatic PU belt, with cleaning applied to both sides.
Four cleaning rollers transfer dust to two washable collection rollers. Static-elimination bars are positioned at the inlet and outlet, and an anti-wrap mechanism supports sheet handling. Conveyor speed is adjustable for the material.
Provide the sheet material, dimensions, thickness and contamination level for selection. Cleaning performance should be assessed using the actual sheets and the required downstream process.
Features and Operation
- Double-sided roller cleaning with two dust-collection rollers.
- Static-elimination bars at both inlet and outlet.
- Antistatic PU conveyor belts and anti-wrap mechanism.
Technical Specifications
- Maximum sheet width
- 650 mm
- Sheet thickness
- 0.075–3.2 mm
- Conveyor speed
- 0–20 m/min
- Cleaning rollers
- 4
- Dust-collection rollers
- 2
- Static-elimination bars
- 2
- Power supply
- AC 220 V, single-phase, 50 Hz
- Installed power
- 200 W
Specifications describe the documented configuration. Confirm the final configuration for your application.
