Automatic Protective-Film Laminating and Cutting Machine
The ZKFM-500CQS applies protective film to composite panels and cuts the laminated material into individual pieces.
- Automatic composite-panel alignment
- Guillotine cutting
- Protective-film runout detection

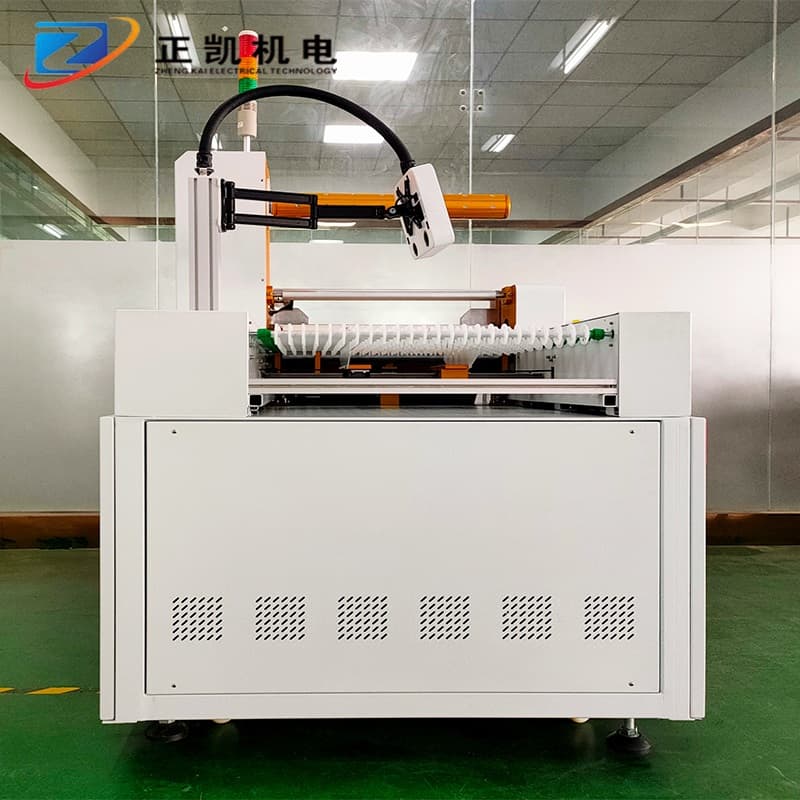

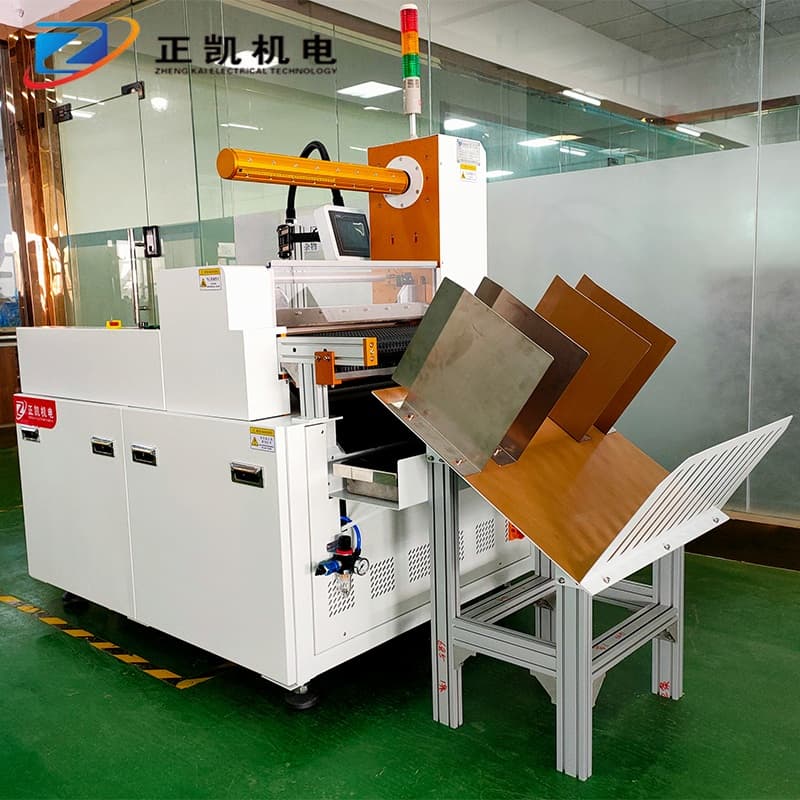

Product Images
Product Introduction
The ZKFM-500CQS applies protective film to composite panels and cuts the laminated material into individual pieces.
The documented processing range is 250–500 mm in length and 200–500 mm in width, for material 0.1–1 mm thick. Laminating speed is adjustable from 0 to 5 m/min. Automatic alignment centers the material before lamination.
An air-expanding shaft and magnetic-powder brake manage the film supply. The configuration includes pneumatically lifted upper rollers, a guillotine cutter, a receiving tray and a film-runout alarm. Provide the panel and film requirements to confirm the setup.
Features and Operation
- Automatic composite-panel alignment
- Guillotine cutting
- Protective-film runout detection
Technical Specifications
- Cut length
- 250–500 mm
- Cut width
- 200–500 mm
- Material thickness
- 0.1–1 mm
- Laminating speed
- 0–5 m/min
- Film thickness
- 15–76 μm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 1 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
