Roll-to-Roll System for FMM and Metal Etching
The ZKFMM-RTR-600 handles metal coils for fine metal mask (FMM) and metal-etching wet processes, integrating with pretreatment, developing, etching or thinning lines.
- FMM and metal-etching coil handling
- Unwinding and rewinding web guidance
- Manual and linked automatic modes

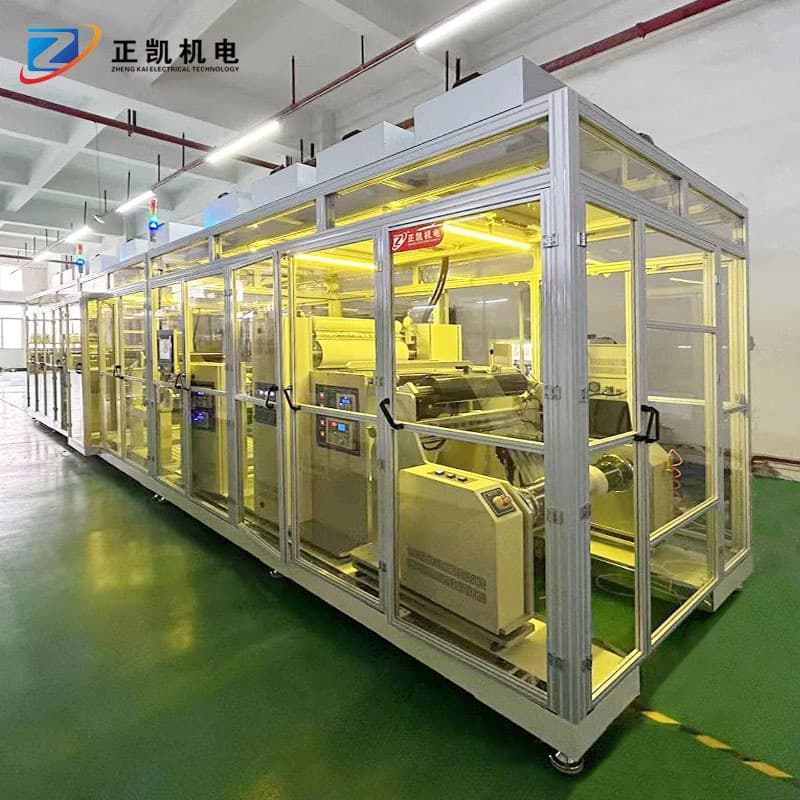

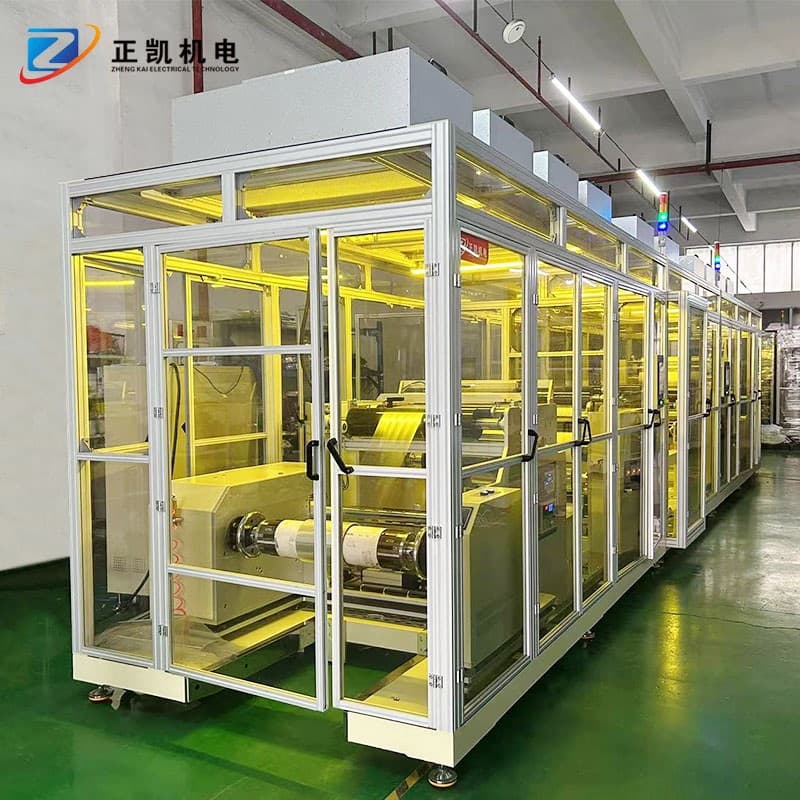

Product Images
Product Introduction
The ZKFMM-RTR-600 handles metal coils for fine metal mask (FMM) and metal-etching wet processes, integrating with pretreatment, developing, etching or thinning lines.
The documented material is INVAR36, with thickness 10–200 μm and width 150–600 mm. The configuration specifies a 1000 mm coil diameter and a 6-inch core. Loading and unloading use manual handling assisted by an electric hydraulic forklift.
Unwinding and rewinding positions have web-guiding devices and splice tables. Manual standalone and automatic linked operation are described. Conveyor height is matched to the wet-process line; provide the coil requirements and line interface for configuration review.
Features and Operation
- FMM and metal-etching coil handling
- Unwinding and rewinding web guidance
- Manual and linked automatic modes
Technical Specifications
- Documented material
- INVAR36
- Material thickness
- 10–200 μm
- Material width
- 150–600 mm
- Documented coil diameter
- 1000 mm
- Core diameter
- 6 in
Specifications describe the documented configuration. Confirm the final configuration for your application.
