Composite-Panel Laminating and Cutting Machine
The ZKFM-500 applies protective film to composite panels and cuts the laminated material into individual pieces.
- Protective-film application for composite panels
- Automatic material alignment
- Guillotine cutting and receiving tray

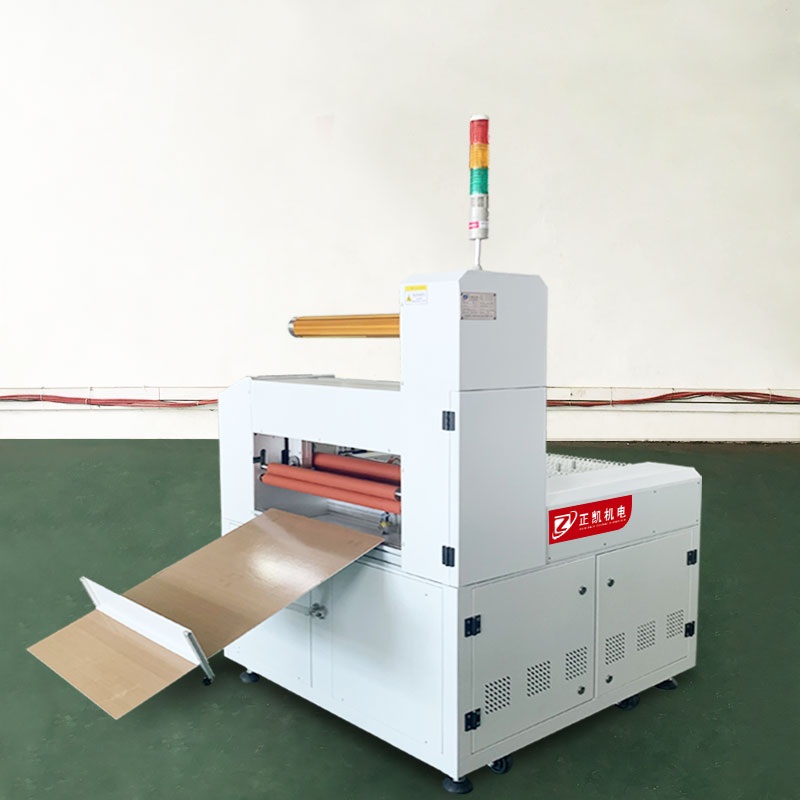

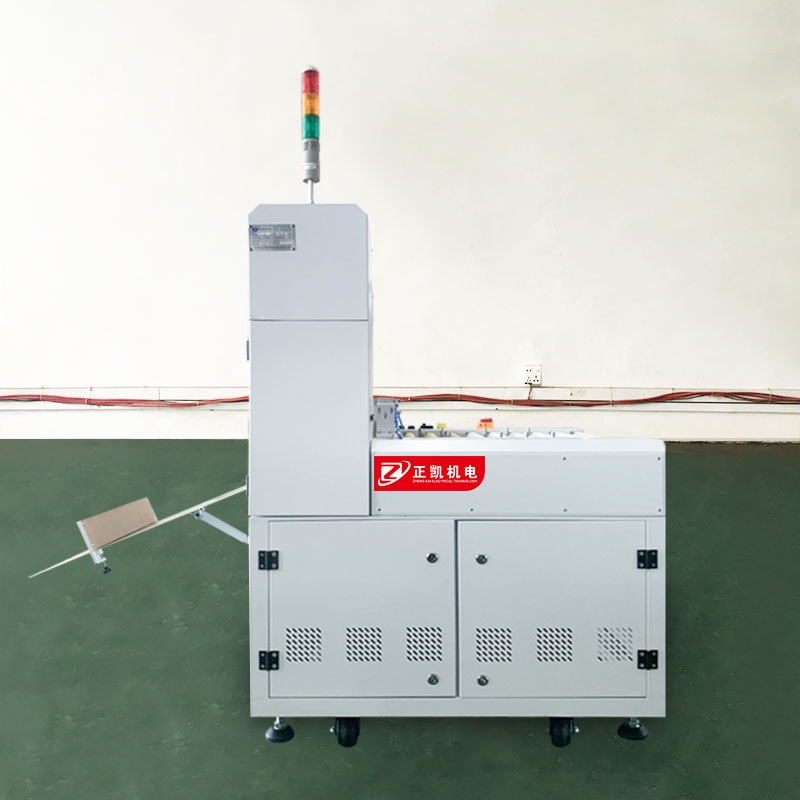

Product Images
Product Introduction
The ZKFM-500 applies protective film to composite panels and cuts the laminated material into individual pieces.
The documented processing range is 250–500 mm in length and 200–500 mm in width, for material 0.4–1 mm thick. Laminating speed is adjustable from 0 to 10 m/min. Output depends on the cutting length and workpiece conditions.
The configuration includes automatic alignment, an air-expanding film shaft with magnetic-powder braking, pneumatically lifted upper rollers and a guillotine cutter. Finished pieces pass into a receiving tray. PLC and operator-interface controls support setup; provide panel dimensions and film requirements for review.
Features and Operation
- Protective-film application for composite panels
- Automatic material alignment
- Guillotine cutting and receiving tray
Technical Specifications
- Cut length
- 250–500 mm
- Cut width
- 200–500 mm
- Material thickness
- 0.4–1 mm
- Protective-film thickness
- 15–76 μm
- Laminating speed
- 0–10 m/min
- Conveyor height
- 900 ± 20 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 1 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
