Dual-Control Two-Chamber Oven
The ZKMOL-3DS is a two-chamber oven for thermal processing of touch-panel and LCD components and camera lenses. Each chamber measures W650 × D550 × H600 mm. Tubular stainless-steel heaters provide heat through the circulating airflow.
- Double-sided horizontal airflow.
- Digital PID control with SSR output.
- Two stacked chambers for batch loading.

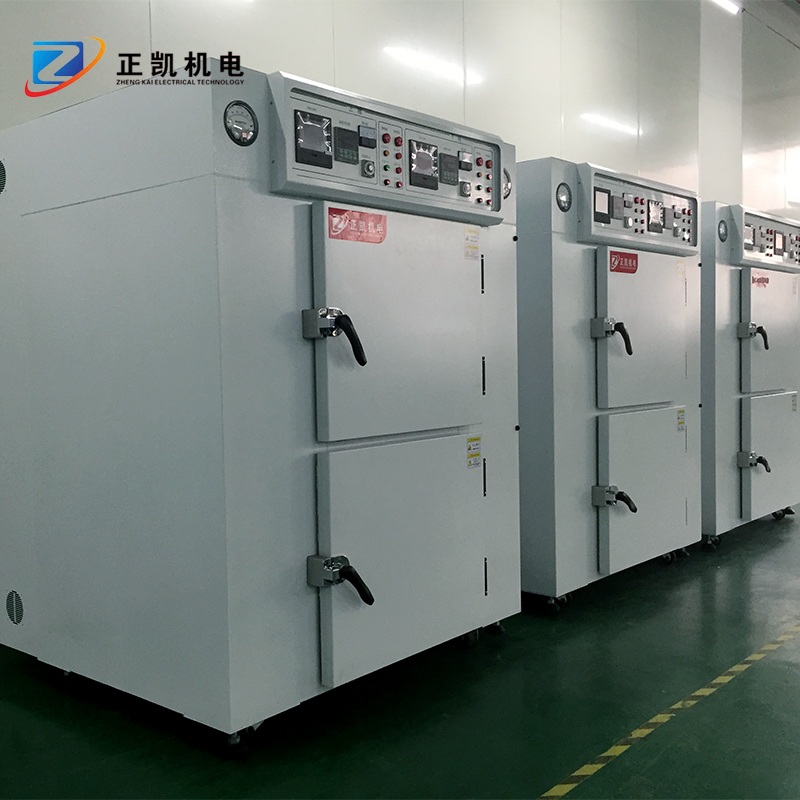

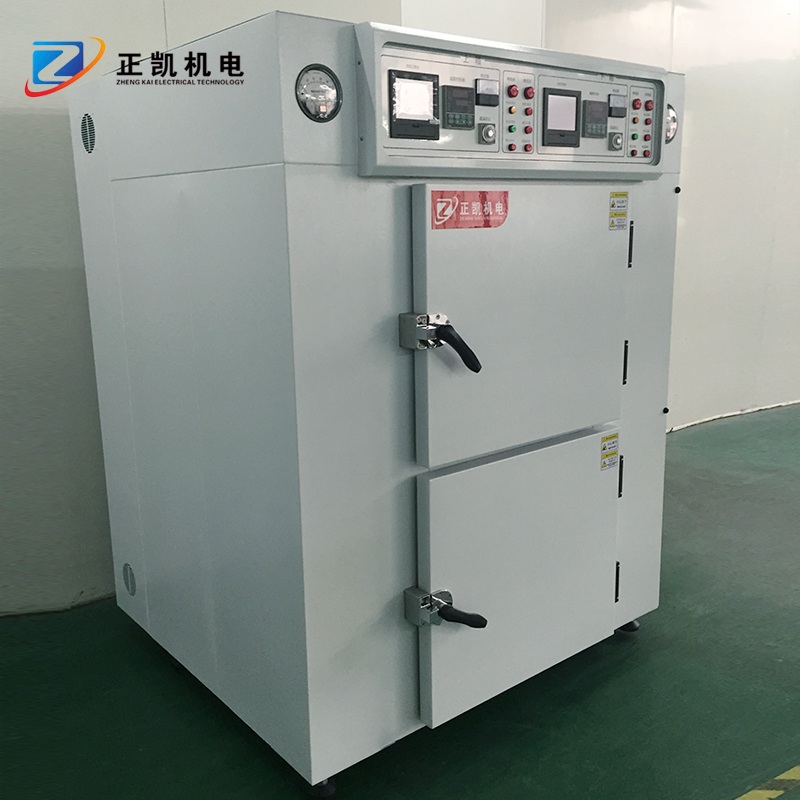

Product Images
Product Introduction
The ZKMOL-3DS is a two-chamber oven for thermal processing of touch-panel and LCD components and camera lenses. Each chamber measures W650 × D550 × H600 mm. Tubular stainless-steel heaters provide heat through the circulating airflow.
The two chambers have separate controls. SUS304 stainless-steel chambers and air ducts work with filtered airflow from both sides. The specification includes six-point temperature-curve monitoring.
The documented temperature setting range is ambient temperature plus 25 °C up to 150 °C. Provide the material, tray arrangement, batch load and required temperature profile to review the configuration and monitoring requirements.
Features and Operation
- Double-sided horizontal airflow.
- Digital PID control with SSR output.
- Two stacked chambers for batch loading.
Technical Specifications
- Chambers
- 2
- Dimensions per chamber
- W650 × D550 × H600 mm
- Temperature setting range
- Ambient +25 °C to 150 °C
- Airflow
- Double-sided horizontal
- Power supply
- AC 380 V, three-phase, 50 Hz
- Installed power
- 14 kW
- Temperature monitoring points
- 6
Specifications describe the documented configuration. Confirm the final configuration for your application.
