Vacuum Screen Exposure Machine

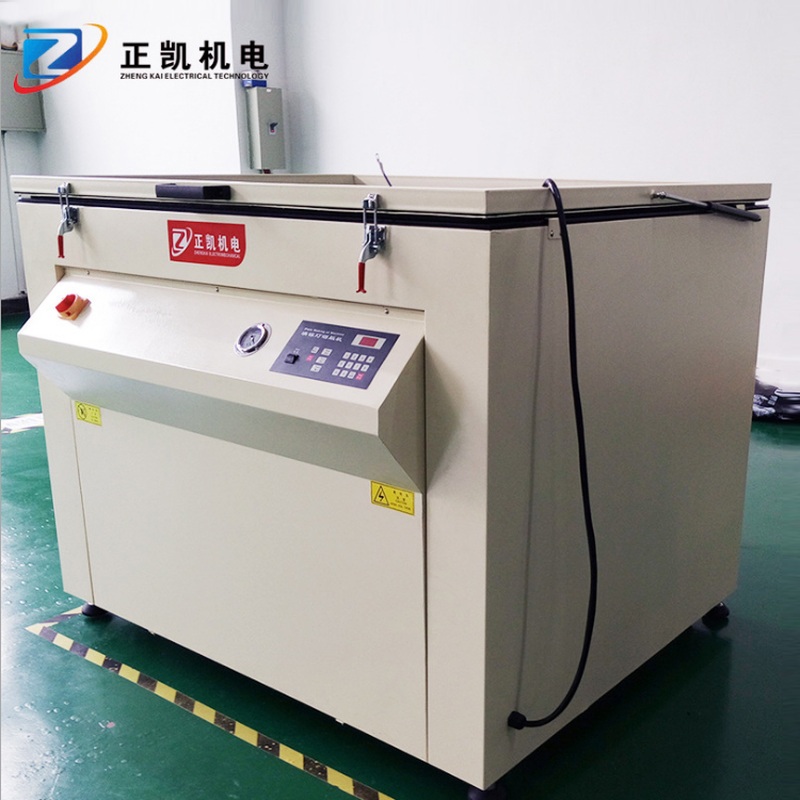

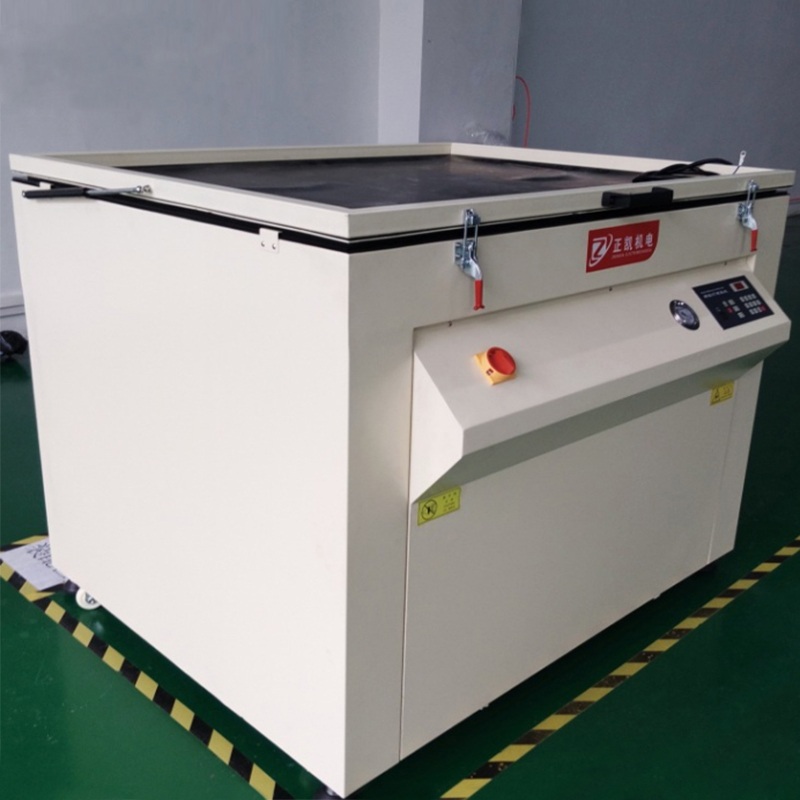

The ZKUE-3KA exposes photosensitive screen-printing screens using a UV lamp and vacuum contact. The documented exposure area is 1000 × 1200 mm, with one 3 kW exposure lamp.
- Vacuum-contact screen exposure.
- Independently set vacuum and exposure times.
- Manual and automatic operating modes.
Product Images
Product Introduction
The ZKUE-3KA exposes photosensitive screen-printing screens using a UV lamp and vacuum contact. The documented exposure area is 1000 × 1200 mm, with one 3 kW exposure lamp.
The control panel allows vacuum time and exposure time to be set. Manual and automatic operation are available. A rubber blanket and vane vacuum pump hold the screen assembly in contact during the exposure process.
Provide the screen frame size, photosensitive emulsion and required image detail to select the exposure conditions. Exposure time should be established for the actual screen and emulsion.
Features and Operation
- Vacuum-contact screen exposure.
- Independently set vacuum and exposure times.
- Manual and automatic operating modes.
Technical Specifications
- Exposure area
- 1000 × 1200 mm
- Exposure lamp power
- 3 kW
- Exposure lamps
- 1
- Equipment dimensions
- Approx. W1520 × D1350 × H1160 mm
- Installed power
- 3.5 kW
- Power supply
- AC 220 V, single-phase, 50 Hz
Specifications describe the documented configuration. Confirm the final configuration for your application.
