Roll-to-Roll System for Stainless-Steel Etching Lines
The ZK-R2R-500 unwinds and rewinds stainless-steel strip in coordination with a DES cleaning line used in metal etching.
- Stainless-steel strip handling for DES lines
- Web guidance at unwinder and rewinder
- Splice platform and enclosed frame

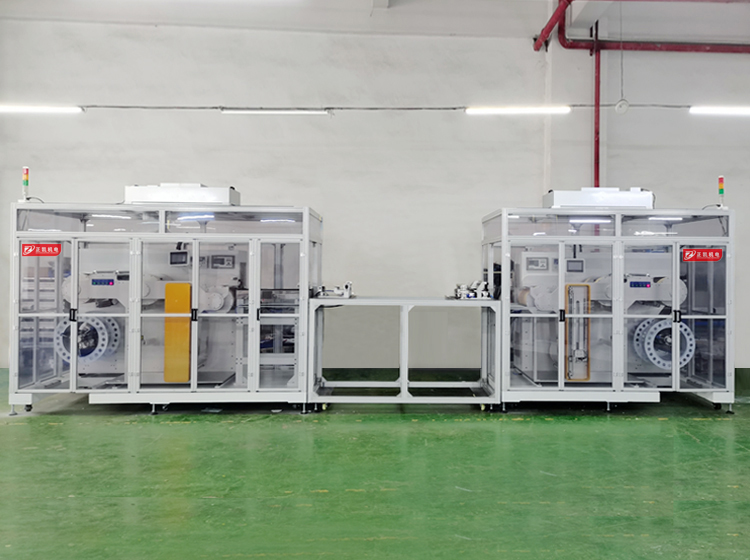

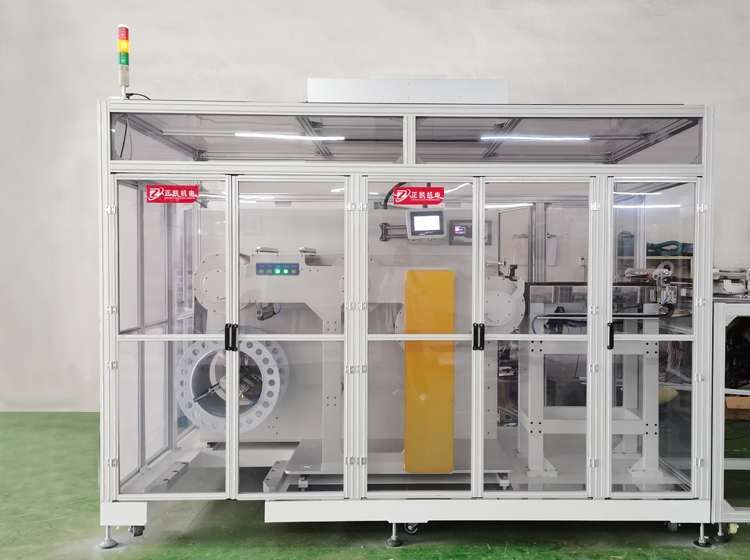

Product Images
Product Introduction
The ZK-R2R-500 unwinds and rewinds stainless-steel strip in coordination with a DES cleaning line used in metal etching.
The documented strip width is 100–500 mm, with thickness from 0.02 to 0.03 mm and a maximum roll diameter of 500 mm. Transport speed is adjustable from 0.5 to 3 m/min and must follow the connected cleaning line.
The configuration includes web guidance at unwinding and rewinding positions, a splice platform and an enclosed frame with fan-filter units. Manual and linked automatic modes are described. Provide the strip, core dimensions, coil weight and line interfaces to confirm the configuration.
Features and Operation
- Stainless-steel strip handling for DES lines
- Web guidance at unwinder and rewinder
- Splice platform and enclosed frame
Technical Specifications
- Material width
- 100–500 mm
- Material thickness
- 0.02–0.03 mm
- Maximum roll diameter
- 500 mm
- Transport speed
- 0.5–3 m/min
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
