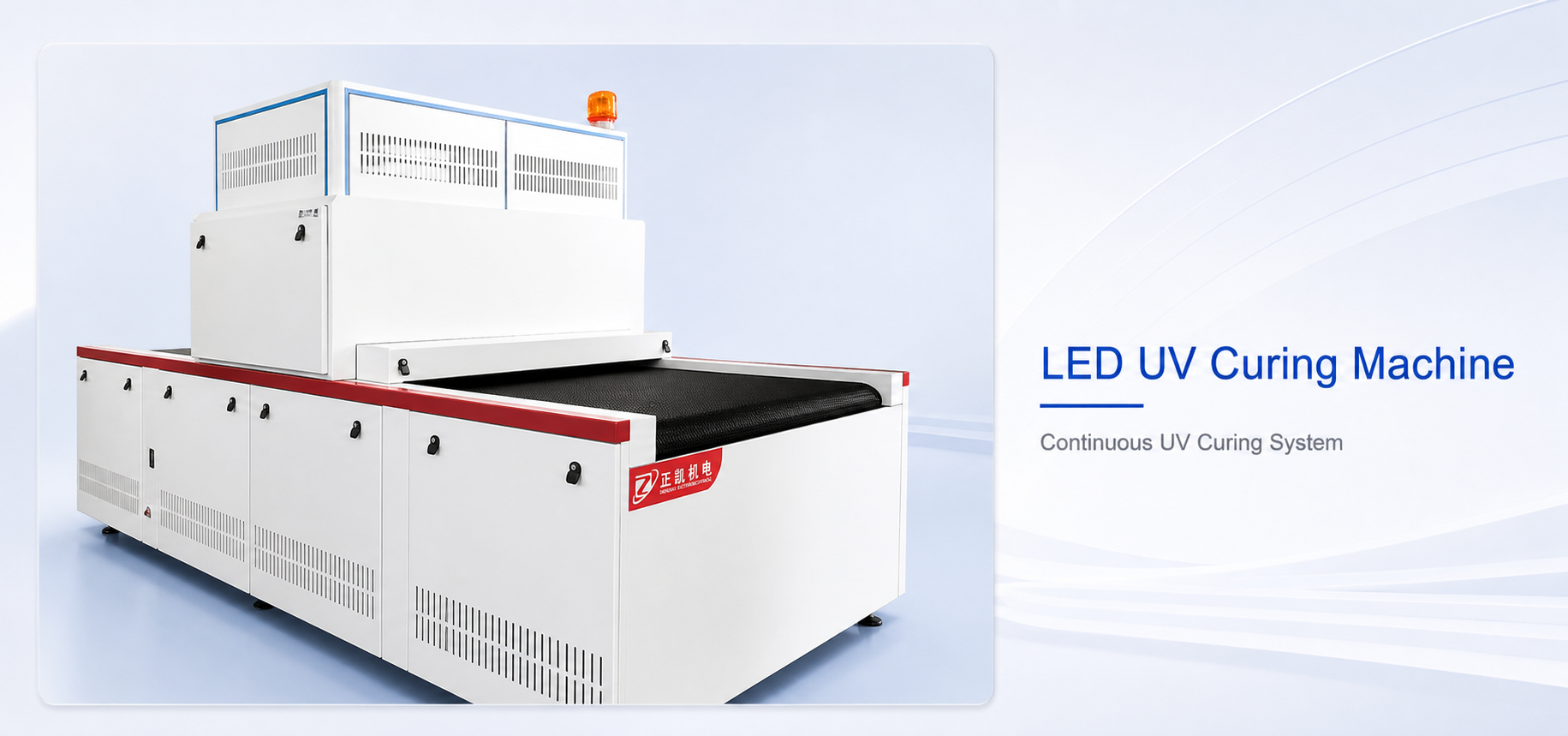

1200 mm LED UV Curing Conveyor
The ZKLED-1200-300 provides LED UV curing for touch-panel full-lamination and post-print processes across a 1200 mm curing width.
- 1200 mm curing width
- Two independently controlled LED heads
- Adjustable irradiation distance

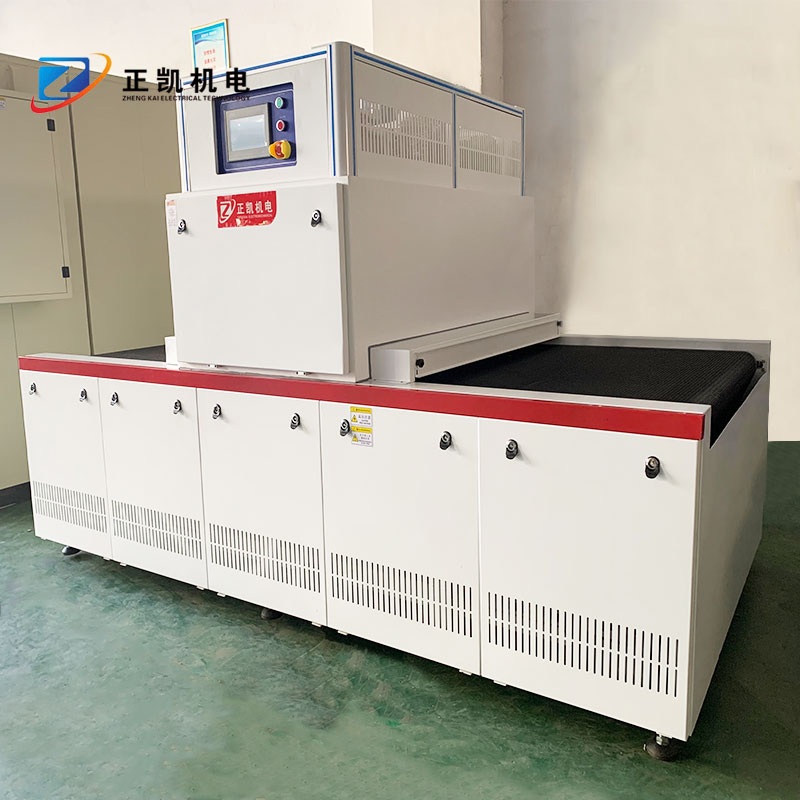

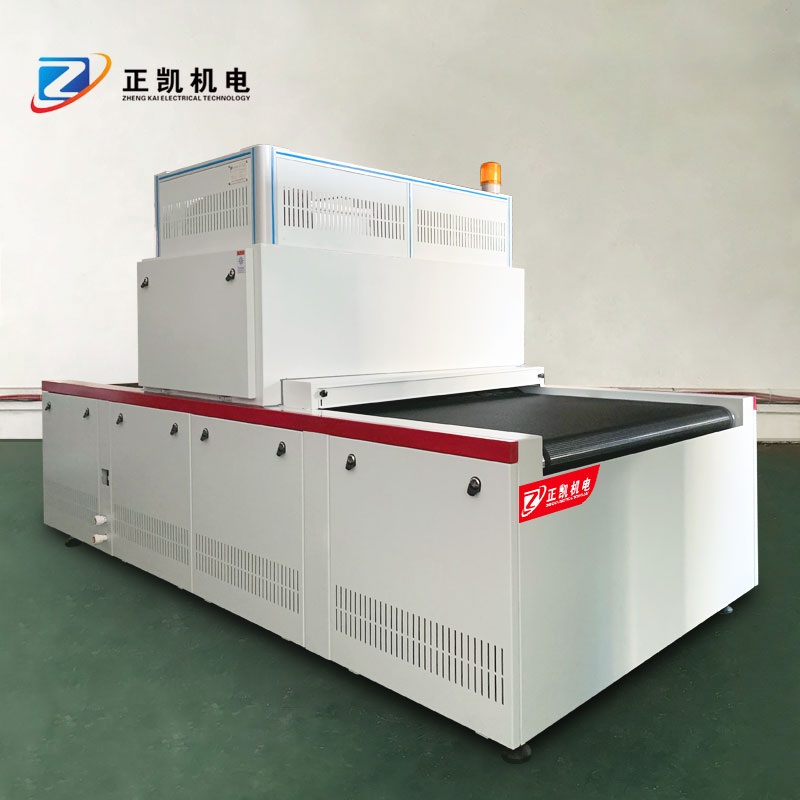

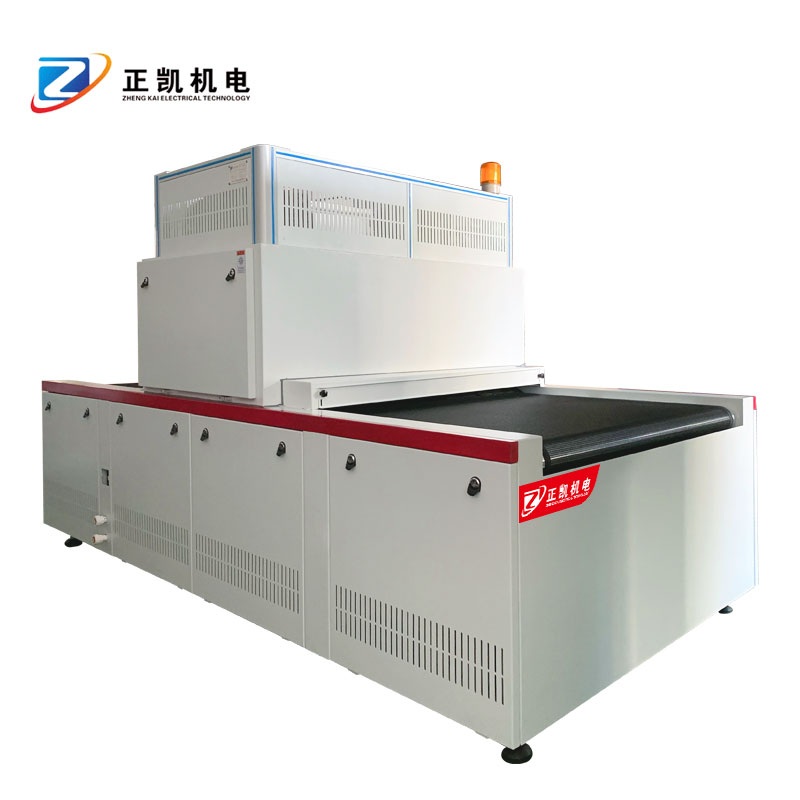

Product Images
Product Introduction
The ZKLED-1200-300 provides LED UV curing for touch-panel full-lamination and post-print processes across a 1200 mm curing width.
The documented configuration has two LED emitting areas, each measuring 1200 × 150 mm, at a peak wavelength of 365 ± 5 nm. Conveyor speed is adjustable from 1 to 5 m/min.
Each irradiation head can be controlled separately. A manual screw mechanism adjusts irradiation distance from 5 to 50 mm, with a digital position display. LED overtemperature and disconnection alarms are described. Provide the ink or adhesive, panel dimensions and required exposure to confirm the process settings.
Features and Operation
- 1200 mm curing width
- Two independently controlled LED heads
- Adjustable irradiation distance
Technical Specifications
- Curing width
- 1200 mm
- Emitting area per head
- 1200 × 150 mm
- LED head count
- 2
- Peak wavelength
- 365 ± 5 nm
- Conveyor speed
- 1–5 m/min
- Irradiation distance adjustment
- 5–50 mm
- Power supply
- 380 V AC, 50 Hz
- Connected power
- 13 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
