Automatic Roll-to-Sheet Cutting Machine
The ZKL-550 converts roll material into individual sheets for the early stages of touch-panel production.
- 550 mm maximum effective width
- PLC and servo control
- Protective-film application function

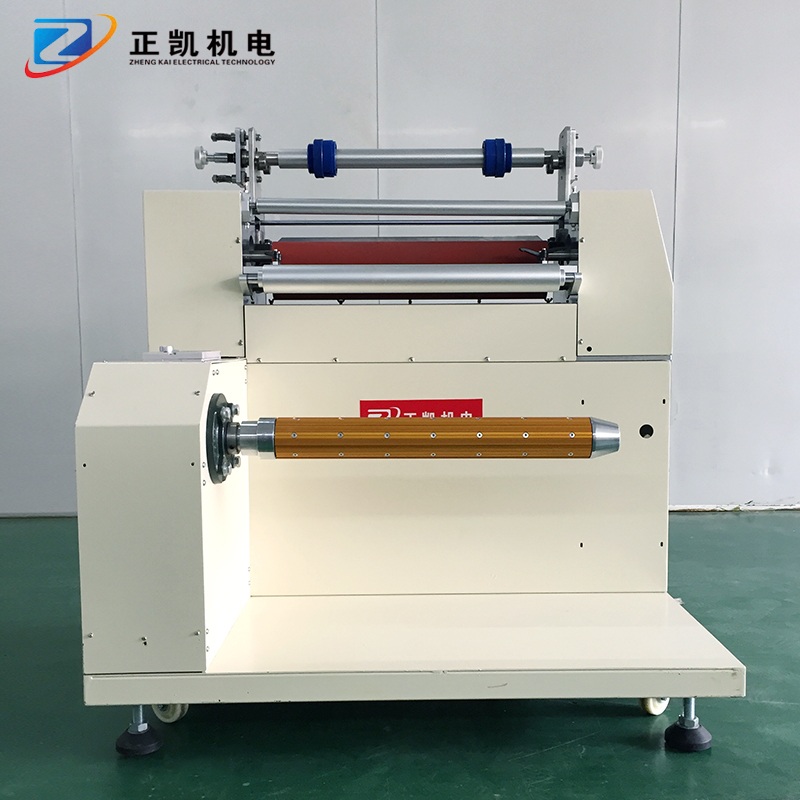

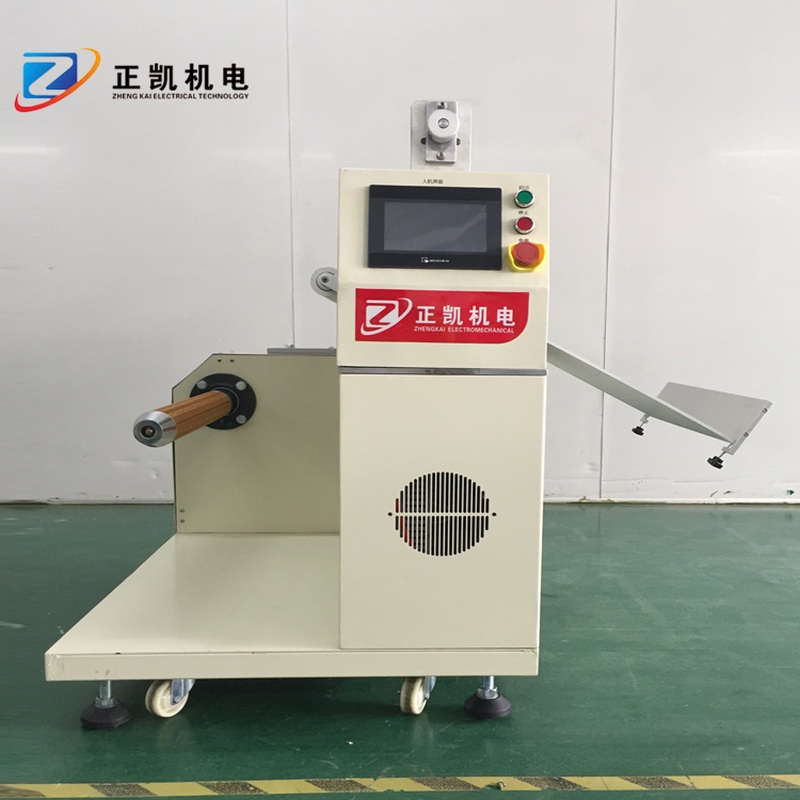

Product Images
Product Introduction
The ZKL-550 converts roll material into individual sheets for the early stages of touch-panel production.
The documented maximum effective width is 550 mm. An operator interface, PLC and servo system control setup, while the material feed uses a variable-speed drive, electromagnetic brake, air-expanding shaft and sensing.
The cutter mechanism combines a high-speed motor, electromagnetic clutch and linkage-driven blade holder. Protective-film application is included in the documented configuration. Send the material type, thickness and required sheet dimensions for capability confirmation.
Features and Operation
- 550 mm maximum effective width
- PLC and servo control
- Protective-film application function
Technical Specifications
- Maximum effective width
- 550 mm
- Shaft core size
- 3 in
- Control system
- Operator interface, PLC and servo
- Power supply
- 220 V AC, 50 Hz
Specifications describe the documented configuration. Confirm the final configuration for your application.
