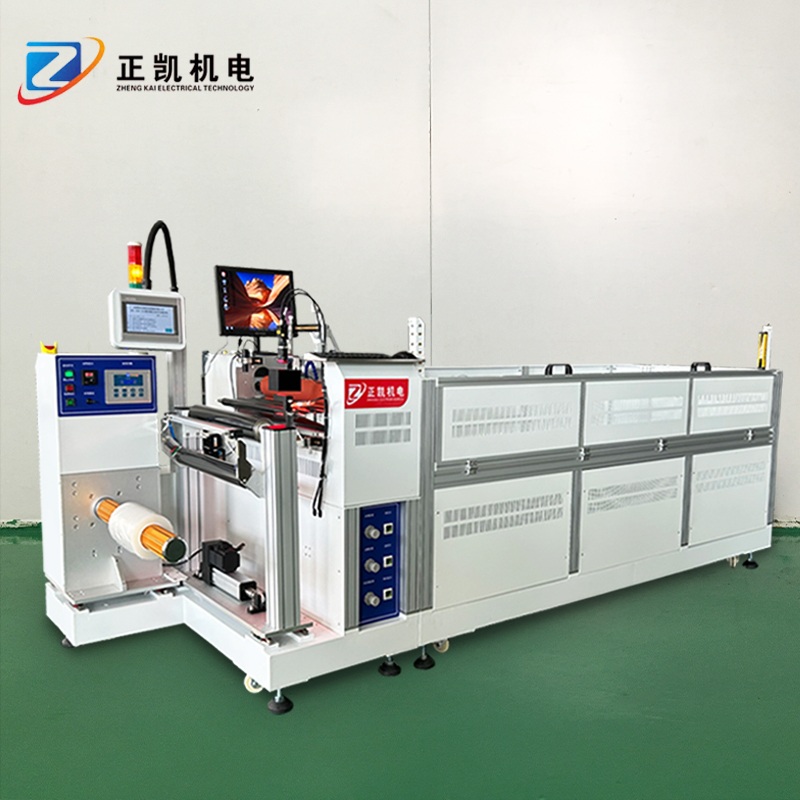

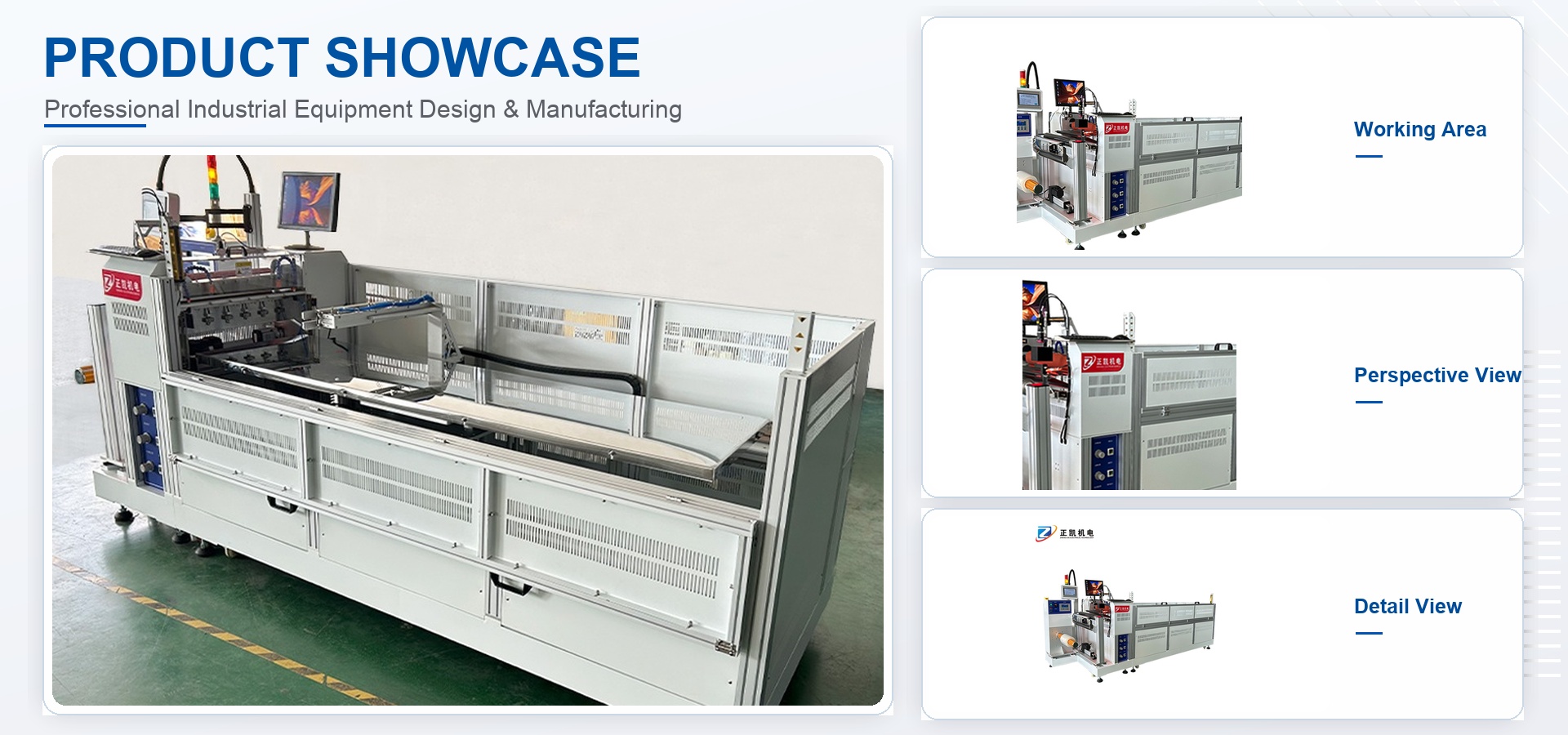

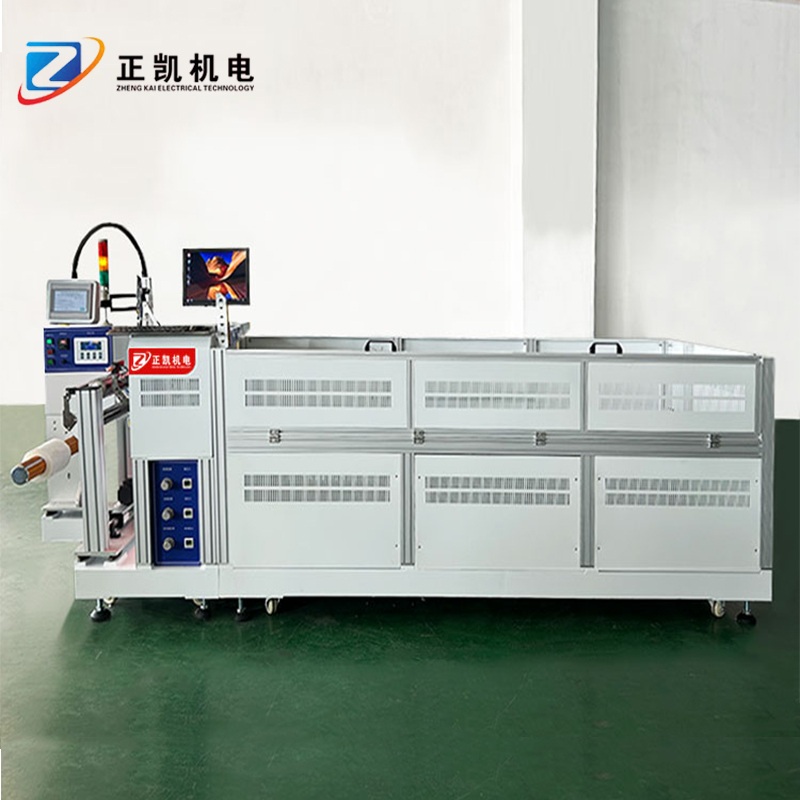

CCD-Registered FPC Roll-to-Sheet Cutting Machine
The ZKL-500-CCD cuts patterned FPC roll material into sheets. The documented material is polyimide film with copper, with thickness from 0.1 to 0.5 mm.
- CCD vision registration and servo feed
- Guillotine roll-to-sheet cutting
- Automatic sheet stacking
Product Images
Product Introduction
The ZKL-500-CCD cuts patterned FPC roll material into sheets. The documented material is polyimide film with copper, with thickness from 0.1 to 0.5 mm.
The machine handles a maximum web width of 500 mm and cut lengths from 500 to 2100 mm. Servo-driven feed and CCD vision registration position the material before a guillotine cut. An EPC web guide is fitted at the unwinder.
An automatic handling unit stacks the cut sheets, with a documented collection height of 150 mm. Process recipes can be saved for repeat jobs. Provide the FPC construction, registration marks and sheet dimensions to confirm the configuration.
Features and Operation
- CCD vision registration and servo feed
- Guillotine roll-to-sheet cutting
- Automatic sheet stacking
Technical Specifications
- Maximum material width
- 500 mm
- Material thickness
- 0.1–0.5 mm
- Cut length
- 500–2100 mm
- Cutting speed
- 0.5–8 m/min
- Roll diameter
- 300 mm
- Core diameter
- 3 in
- Stack collection height
- 150 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
