405 nm LED Curing Conveyor

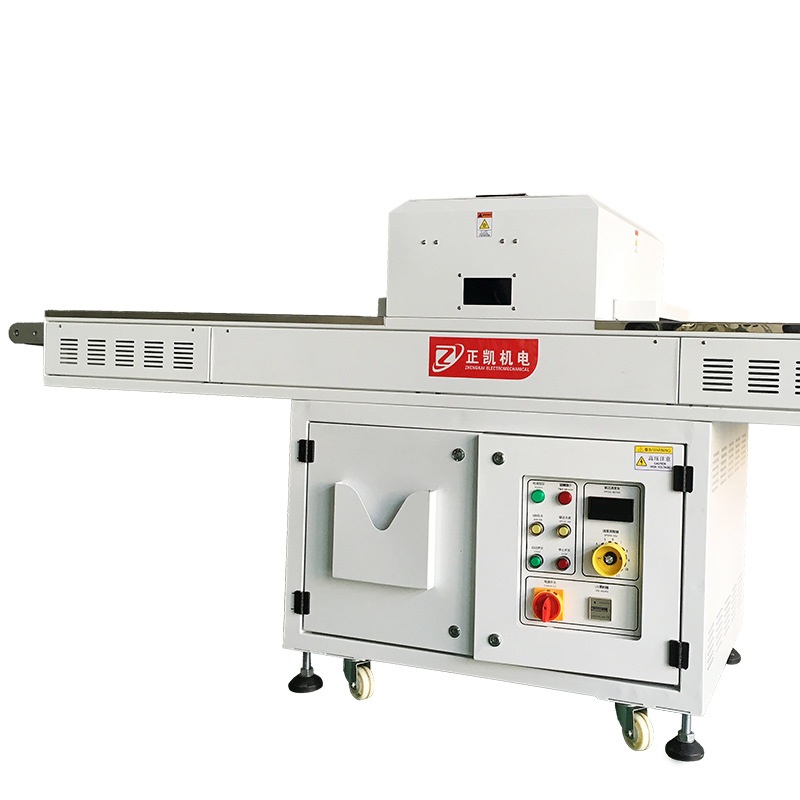

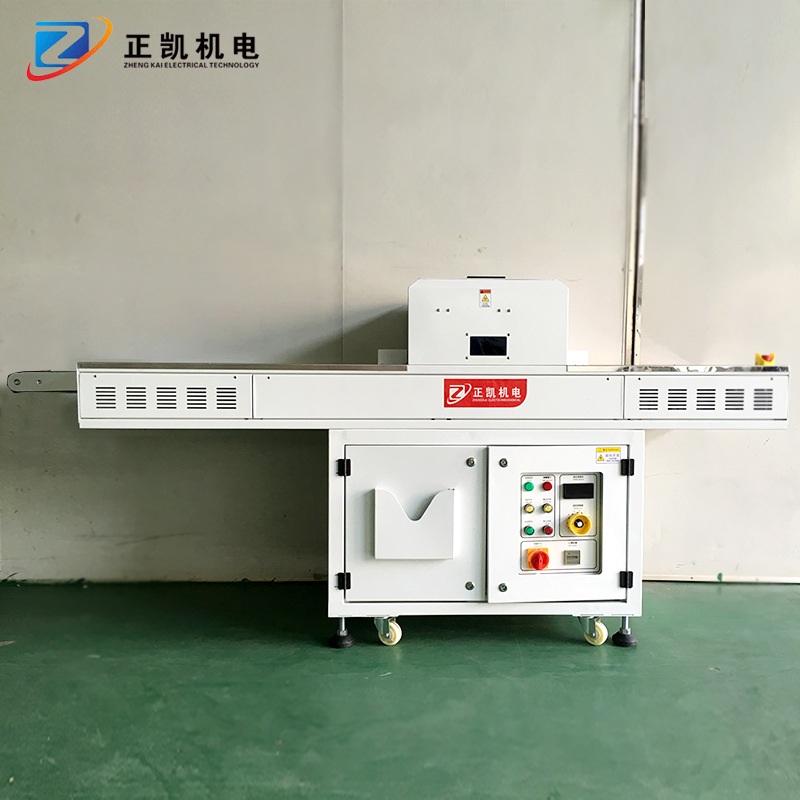

The ZKED-3015H is an LED curing conveyor for touch-panel and other UV adhesive dispensing processes. One LED irradiation head is positioned above the conveyor, with a 70 mm effective irradiation width and a 405 ±5 nm wavelength.
- One top-irradiation LED head.
- Adjustable irradiation distance and conveyor speed.
- PLC and operator interface.
Product Images
Product Introduction
The ZKED-3015H is an LED curing conveyor for touch-panel and other UV adhesive dispensing processes. One LED irradiation head is positioned above the conveyor, with a 70 mm effective irradiation width and a 405 ±5 nm wavelength.
The irradiation distance can be adjusted for the workpiece. Conveyor speed controls the time spent under the light source. A fixture-detection sensor at the discharge position can stop transport to help prevent fixtures from falling from the outlet.
For selection, provide the adhesive specification, workpiece and fixture dimensions, required UV dose and allowable surface temperature. The adhesive response and curing settings should be established with the actual material.
Features and Operation
- One top-irradiation LED head.
- Adjustable irradiation distance and conveyor speed.
- PLC and operator interface.
Technical Specifications
- Effective irradiation width
- 70 mm
- LED wavelength
- 405 ±5 nm
- LED irradiation heads
- 1
- Conveyor width
- 260 mm
- Conveyor speed
- 1–5 m/min
- Irradiation distance
- 10–100 mm
- Maximum conveyor load
- 2 kg
- Power supply
- AC 220 V, single-phase, 50 Hz; 2 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
