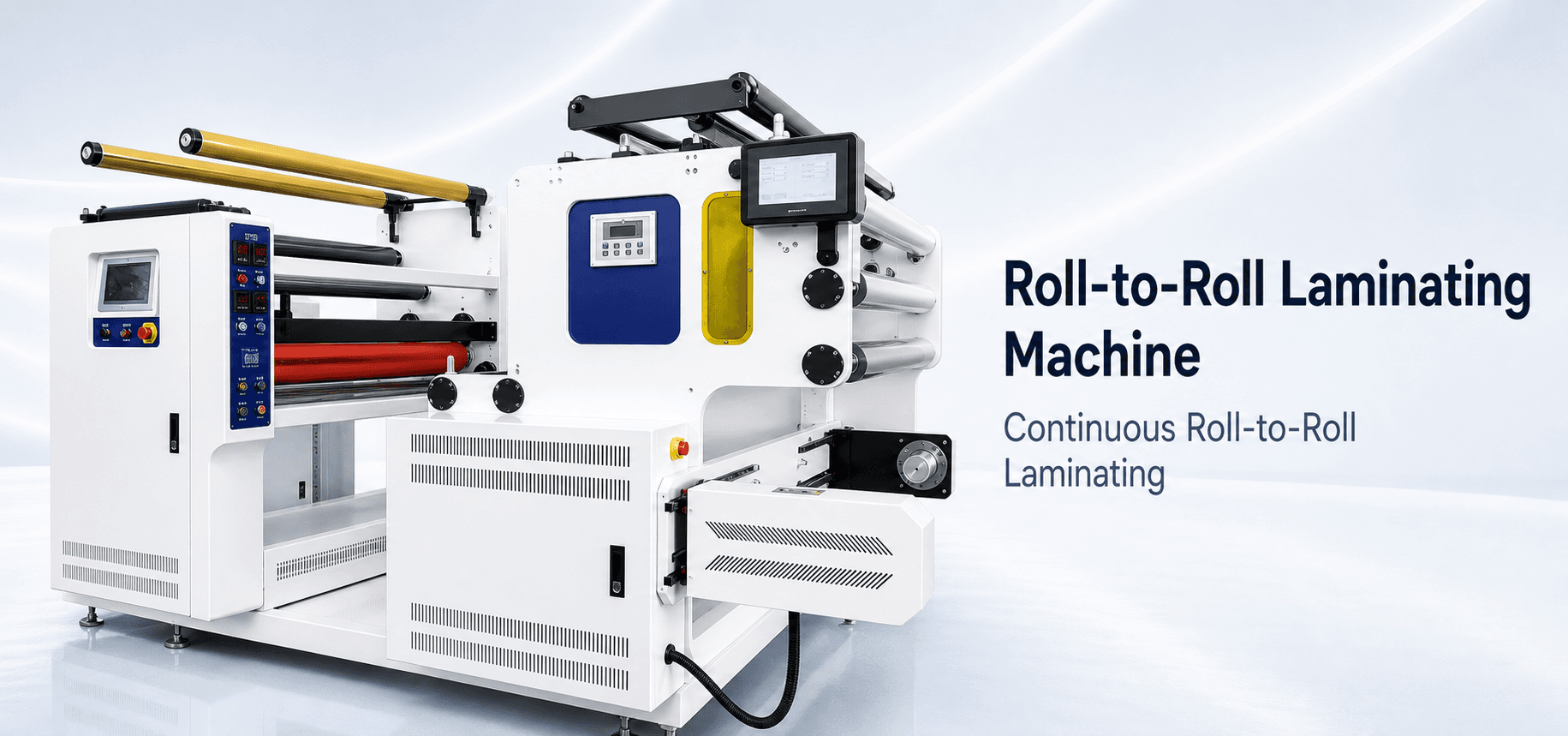

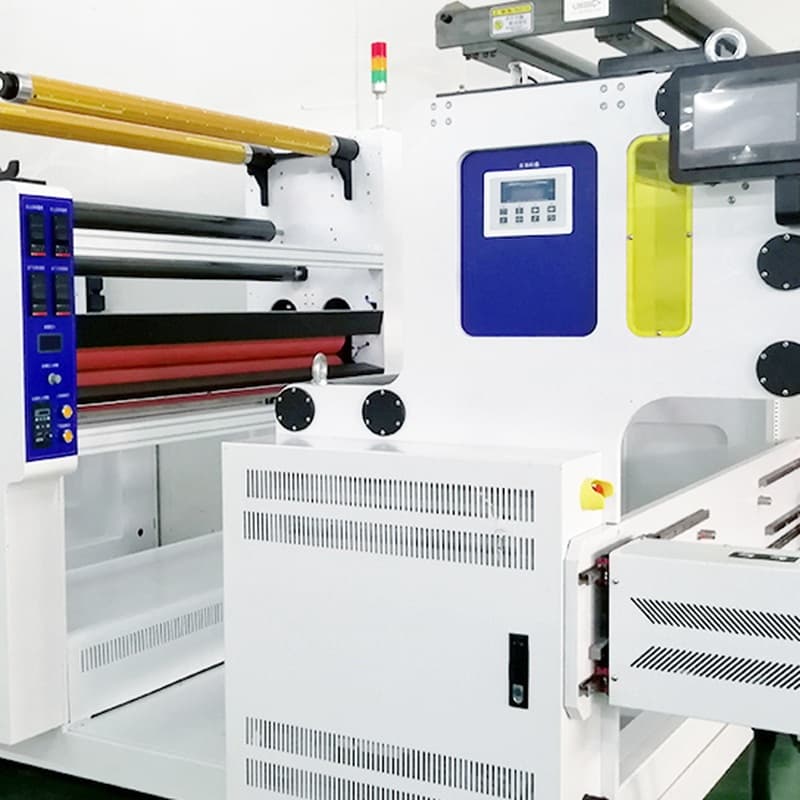

Roll-to-Roll Laminating Machine
Automatic double-side roll-to-roll lamination with web guiding, tension control and heated rollers.
- Continuous double-side lamination
- EPC web guiding and automatic tension control
- PLC, HMI and Ethernet control
Specifications
Specifications shown are based on a reviewed configuration. Final specifications are subject to project confirmation.
Swipe horizontally to view all specifications.
| Product Information | |
|---|---|
| Model | ZK-R2R-FM-1300 |
| Product Type | Automatic Double-Side R2R Laminating Machine |
| Material & Roll | |
| Material Width | 600–1300 mm |
| Material Thickness | 0.1–0.5 mm |
| Maximum Roll Diameter | 500 mm |
| Roll Core | 6 inches |
| Lamination | |
| Laminating Roller | Heated roller |
| Lamination Pressure | Adjustable |
| Line Speed | 0.5–5 m/min |
| Web Handling | |
| EPC Accuracy | ±1 mm |
| Tension Control | Automatic |
| Controls & Integration | |
| Control System | PLC + HMI |
| Communication | Ethernet |
| Utilities | |
| Compressed Air | 5 kg/cm²; 50 L/min |
| Total Power | 8 kW |

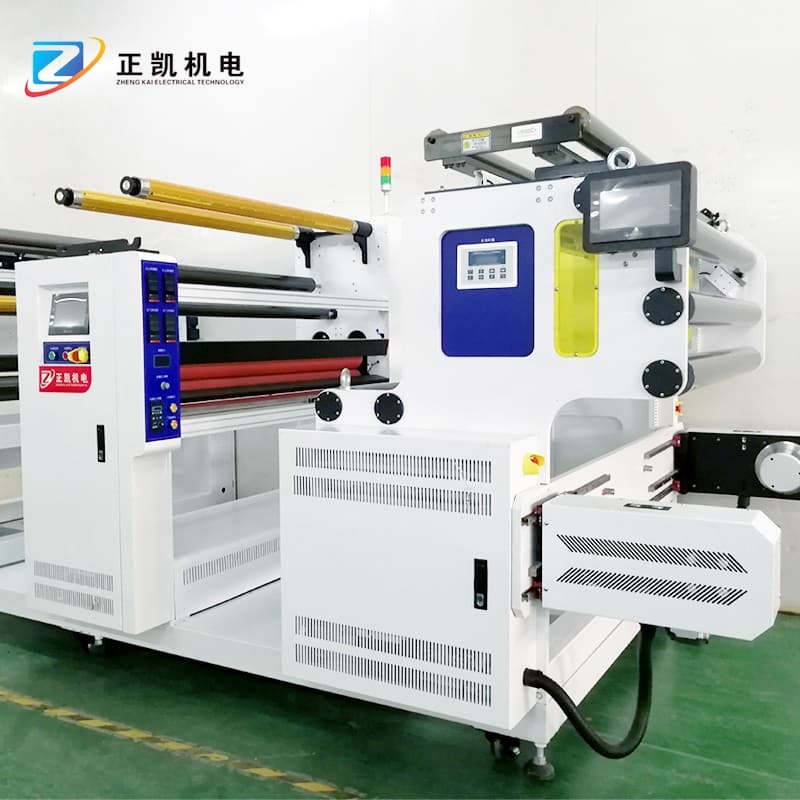

Product Details
The ZK-R2R-FM-1300 supports continuous double-side lamination for flexible materials used in electronics, PCB, FPC, semiconductor and optical-film production.
The line integrates unwinding, EPC web guiding, automatic tension control, heated lamination and rewinding. Material structure, working width, roll diameter, pressure and line speed define the final configuration.
Features
- Continuous double-side lamination
- EPC web guiding and automatic tension control
- PLC, HMI and Ethernet control
Product Advantages
- Continuous lamination workflow
- Web handling configured with the process
- Supports connection to downstream equipment

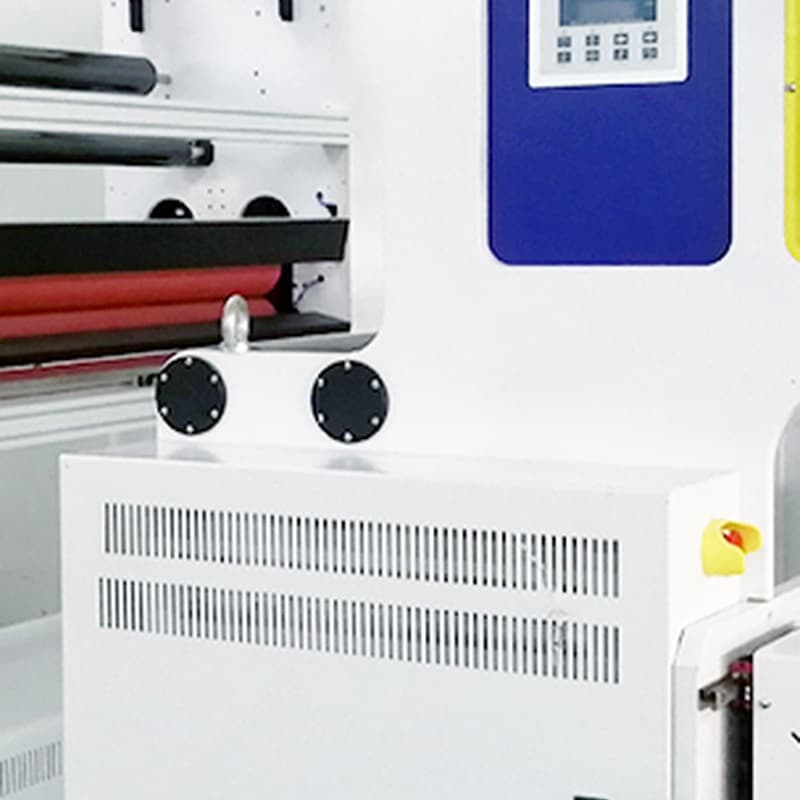

Automatic Double-Side Roll-to-Roll Lamination
The ZK-R2R-FM-1300 integrates unwinding, web guiding, tension control, heated double-side lamination and rewinding for continuous flexible-material production. It can laminate dry film on one side and protective film on the other side according to the process.

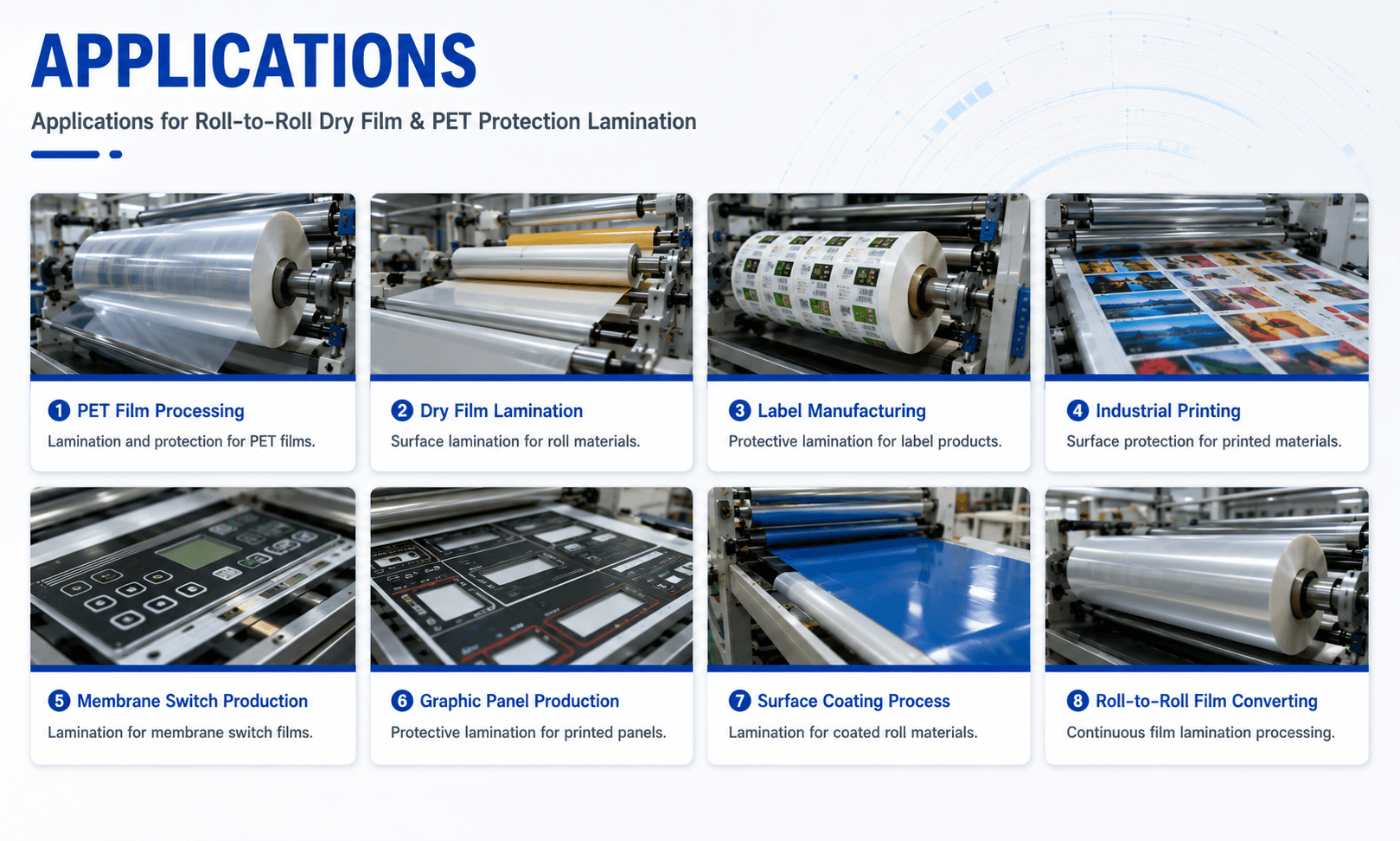

Materials and Applications
- Dry film and protective-film lamination.
- Flexible materials for PCB, FPC and electronics production.
- Optical film and other continuous web materials.
- Processes requiring controlled tension, alignment and heated lamination.
Web Handling and Line Control
EPC web guiding, automatic tension control, heated rollers and PLC/HMI control support stable continuous operation. Ethernet communication is available for production-line integration.
