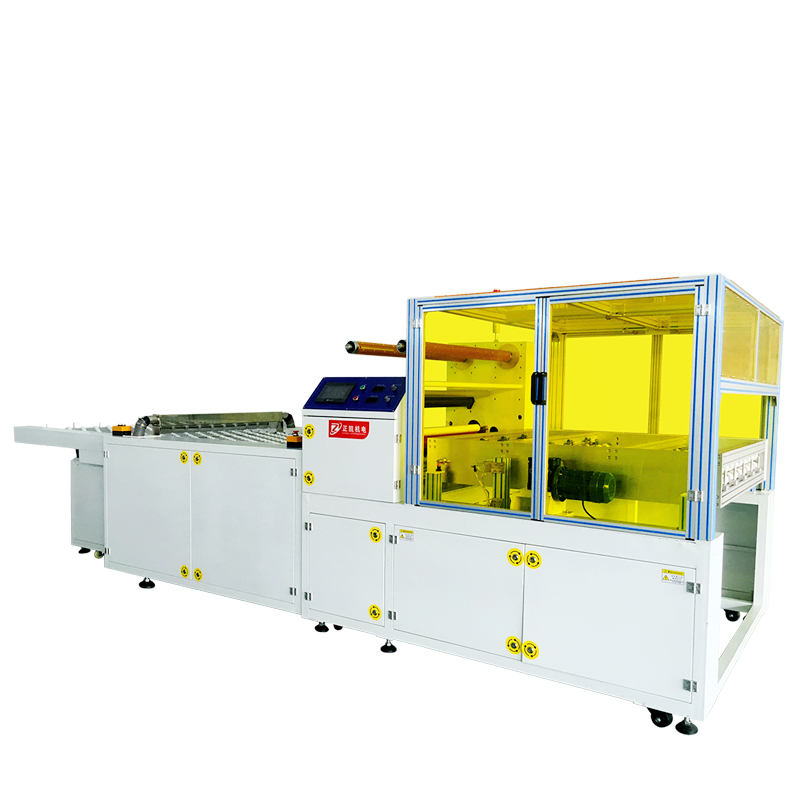

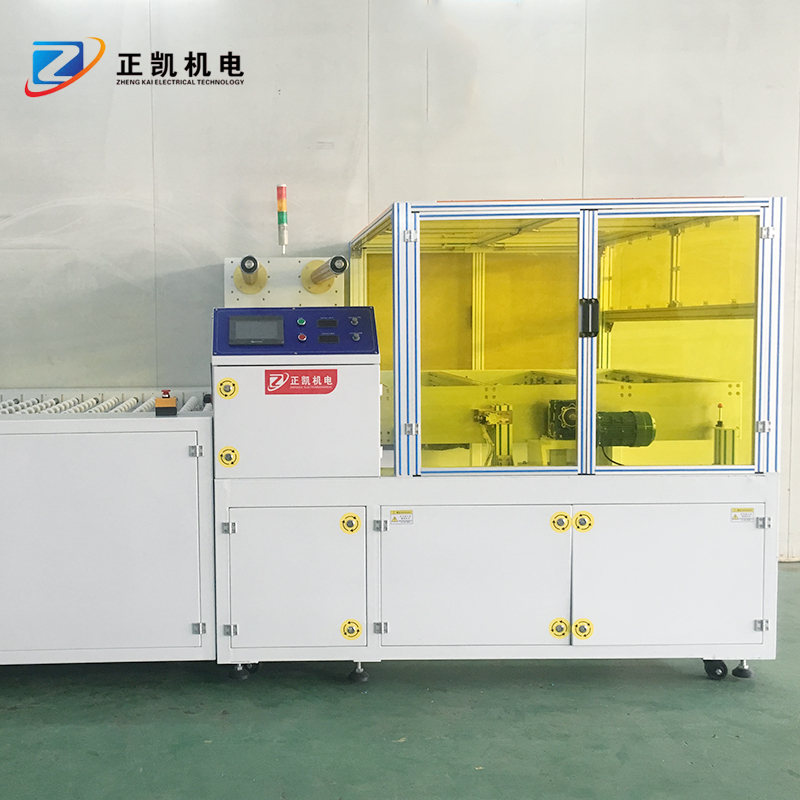

Single-Sided Glass Film Laminating and Cutting Machine
The ZKFM-1100-2 applies high-adhesion, acid-resistant protective film to one surface of flat glass and cuts the film between pieces.
- Single-sided protective film for flat glass
- Servo-driven glass alignment
- Rotary film cutting and glass turning section
Product Images
Product Introduction
The ZKFM-1100-2 applies high-adhesion, acid-resistant protective film to one surface of flat glass and cuts the film between pieces.
The documented glass-size range is 450 × 550 mm to 1100 × 1300 mm, with glass thickness from 0.4 to 4 mm. The film has a release liner, a 300 mm roll diameter and a 3-inch core. Servo-driven alignment positions the glass before lamination.
A traversing rotary blade cuts the film. The described line arrangement includes a 180-degree turning section to present the protected face downward before downstream washing. Provide the glass dimensions, film construction and washing-line layout to confirm the supplied sections.
Features and Operation
- Single-sided protective film for flat glass
- Servo-driven glass alignment
- Rotary film cutting and glass turning section
Technical Specifications
- Documented glass size range
- 450 × 550 to 1100 × 1300 mm
- Glass thickness
- 0.4–4 mm
- Protective-film thickness
- 0.05–0.5 mm
- Film-roll outside diameter
- 300 mm
- Film core diameter
- 3 in
- Glass turning angle
- 180 °
Specifications describe the documented configuration. Confirm the final configuration for your application.
