Water-Cooled UV System for Offset Printing
The ZKUV-1802 is a water-cooled UV system designed for integration with an offset printing press.
- Two water-cooled lamp housings
- Pneumatic lamp shutters
- PLC and touchscreen controls
Product Images
Product Introduction
The ZKUV-1802 is a water-cooled UV system designed for integration with an offset printing press.
The documented configuration has two water-cooled lamp housings with pneumatic shutters, each containing one 13 kW lamp. Effective curing width is 1050 mm. Lamp output has high and low settings.

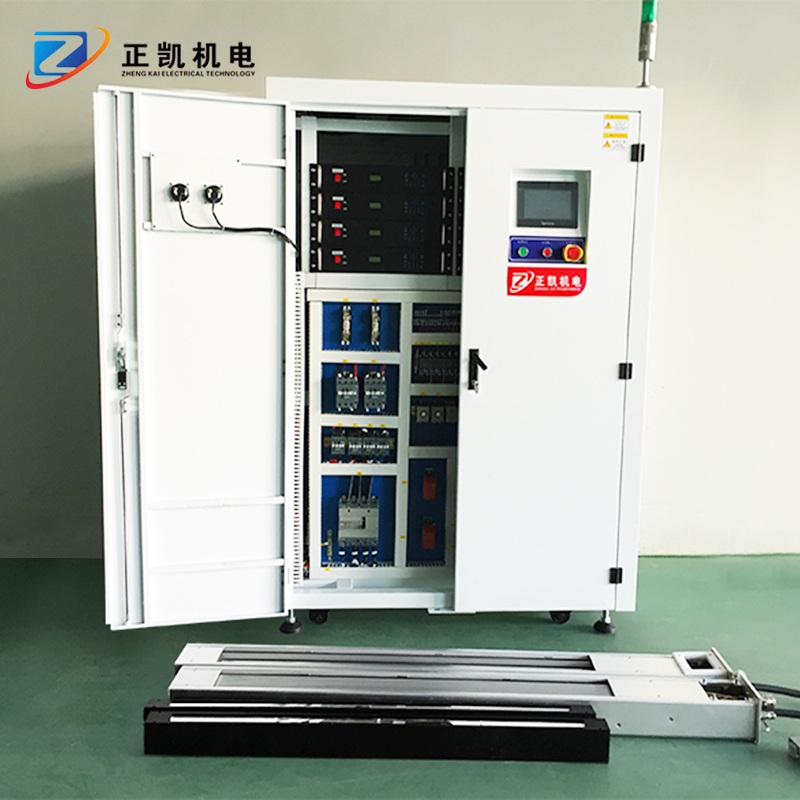

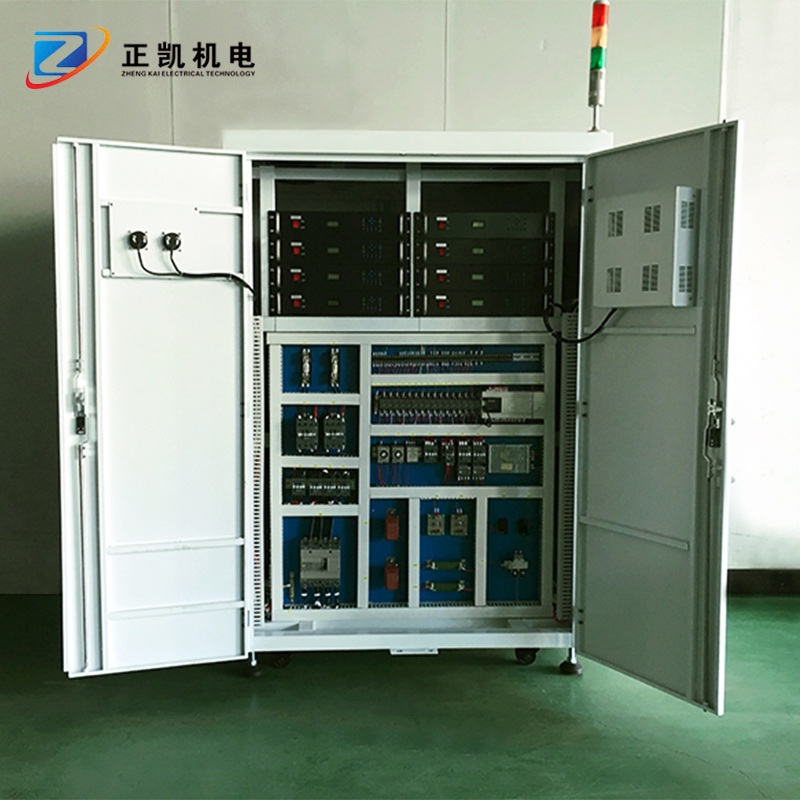

A chiller supplies cooling for the reflector plates; the customer provides an external cooling tower. PLC and touchscreen controls operate the system. The photographs show the control cabinet and lamp-housing components. Provide the press layout and available cooling utilities to confirm integration requirements.
Features and Operation
- Two water-cooled lamp housings
- Pneumatic lamp shutters
- PLC and touchscreen controls
Technical Specifications
- Effective curing width
- 1050 mm
- Lamp housings
- 2
- Lamp power per housing
- 13 kW
- Shutter actuation
- Pneumatic
- Control system
- PLC and touchscreen
- Reflector cooling
- Chiller; external cooling tower supplied by customer
Specifications describe the documented configuration. Confirm the final configuration for your application.
