Multi-Layer Thermal Curing Furnace
The ZKIR-9260-30HP connects to coating equipment to bake and cure coated glass. Aluminium carrier plates move through stacked preheating, main-curing and cooling sections.
- Stacked preheating, curing and cooling zones.
- Mechanical handling of aluminium carriers.
- Stored process recipes in the operator interface.

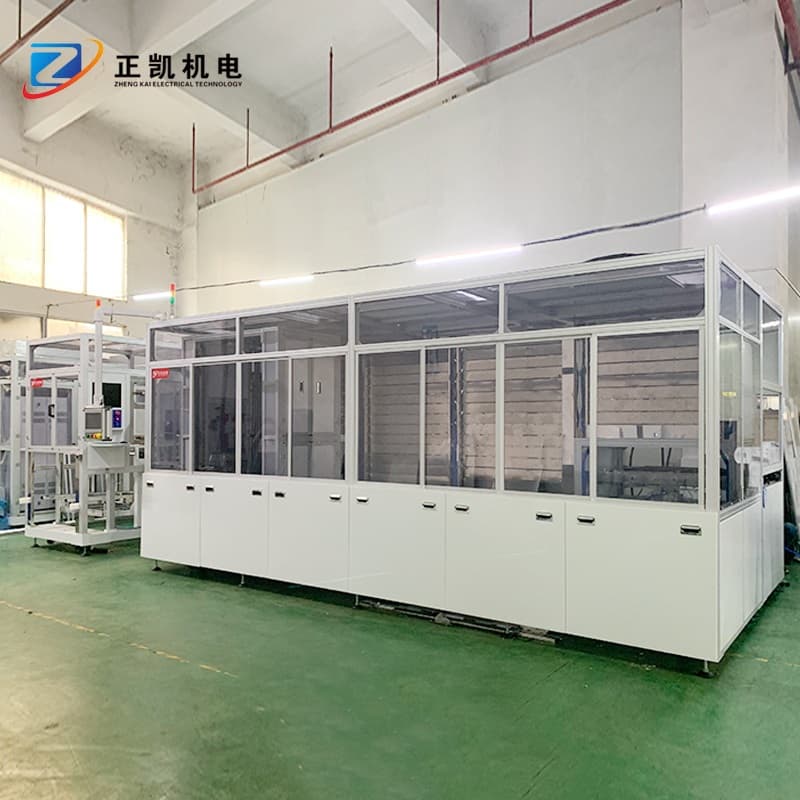

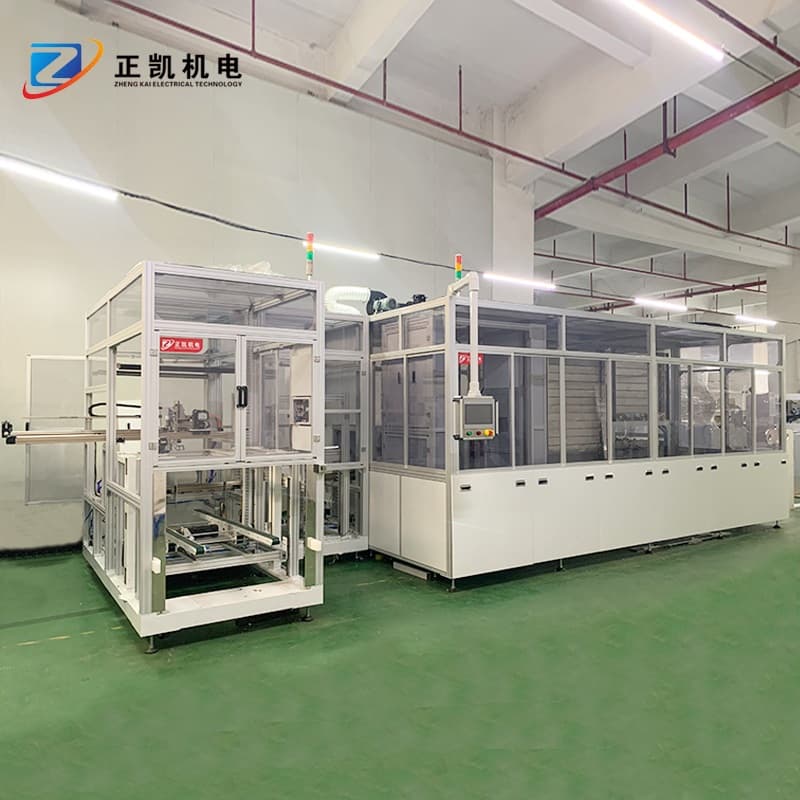

Product Images
Product Introduction
The ZKIR-9260-30HP connects to coating equipment to bake and cure coated glass. Aluminium carrier plates move through stacked preheating, main-curing and cooling sections.
The documented arrangement has eight preheating layers, thirty main-curing layers and eight cooling layers. Incoming rollers receive the carriers from upstream equipment. Internal handling supports the underside of each carrier; at the outlet, a manipulator transfers glass to the downstream washing line.
The PLC operator interface stores process recipes for different products. Provide the glass and carrier dimensions, coating cure profile and upstream/downstream layout to define the heating time and handling sequence.
Features and Operation
- Stacked preheating, curing and cooling zones.
- Mechanical handling of aluminium carriers.
- Stored process recipes in the operator interface.
Technical Specifications
- Carrier dimensions
- 920 × 800 × 5 mm
- Specified baking temperature
- 250 °C
- Typical baking temperature
- 220 °C
- Preheating layers
- 8
- Main curing layers
- 30
- Cooling layers
- 8
Specifications describe the documented configuration. Confirm the final configuration for your application.
