Thermal Leveling and LED UV Conveyor
The ZKED-4570+IR combines heating for adhesive leveling with LED UV curing after dispensing in touch-panel and related processes.
- Upper heating and underside LED irradiation
- Four LED irradiation heads
- 450 mm effective UV irradiation width

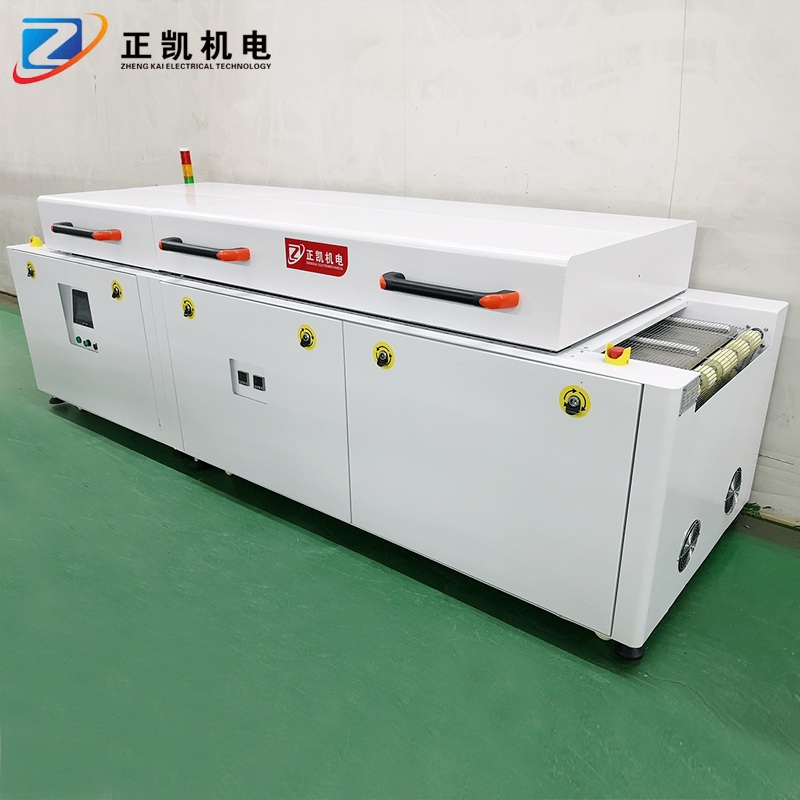

Product Images
Product Introduction
The ZKED-4570+IR combines heating for adhesive leveling with LED UV curing after dispensing in touch-panel and related processes.

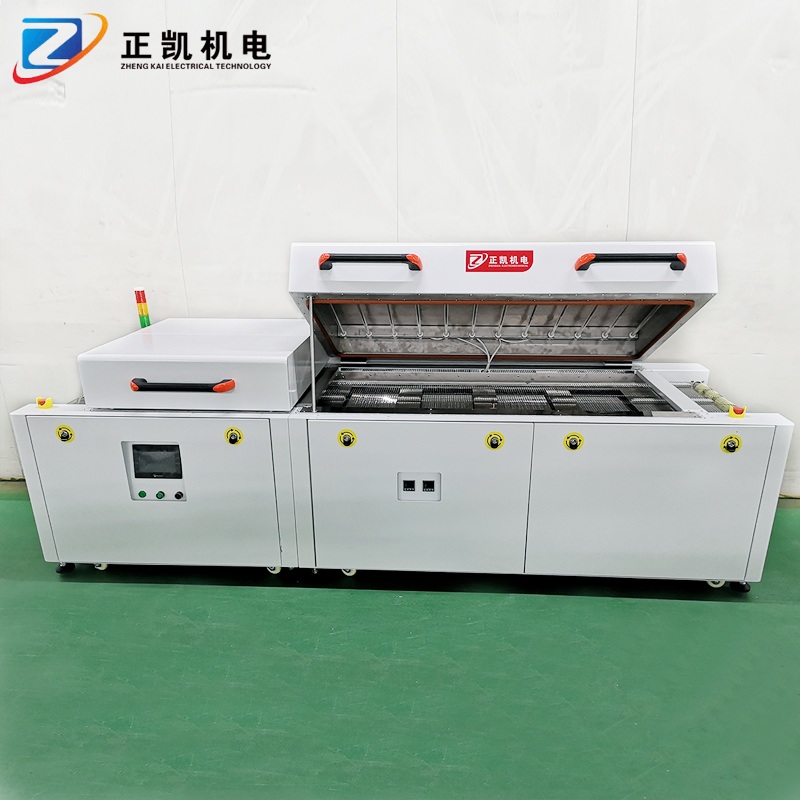

Heating tubes are positioned above the conveyor, while four LED heads illuminate the product from below. The conveyor width is 600 mm; effective UV irradiation width is 450 mm. The documented wavelength is 365 ± 5 nm.
The conveyor speed is adjustable from 1 to 3 m/min. PLC touchscreen control includes material detection and timed UV switching for idle periods. Provide the adhesive, workpiece geometry and exposure requirements to confirm the process.
Features and Operation
- Upper heating and underside LED irradiation
- Four LED irradiation heads
- 450 mm effective UV irradiation width
Technical Specifications
- Conveyor width
- 600 mm
- Effective UV irradiation width
- 450 mm
- LED wavelength
- 365 ± 5 nm
- LED head count
- 4
- Conveyor speed
- 1–3 m/min
- Heating temperature range
- Ambient to 100 °C
- Maximum inlet/outlet opening height
- 30 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
