Double-Sided PCB UV Curing Conveyor

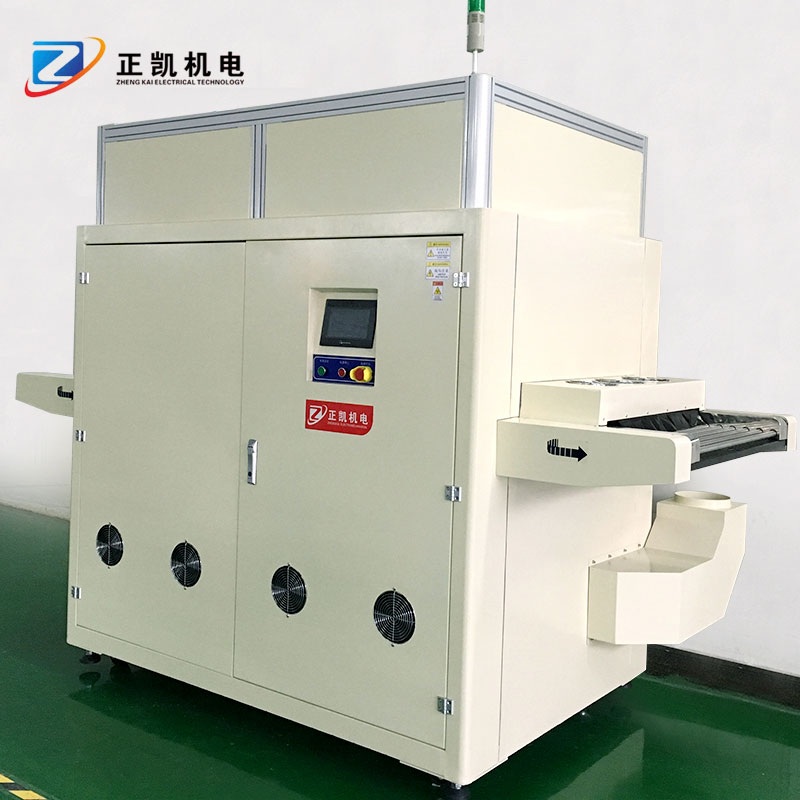

The ZKUV-754MD is a double-sided UV curing conveyor for simultaneous treatment of the upper and lower surfaces of printed PCBs.
- Simultaneous upper and lower surface treatment
- Four 7.5 kW lamps
- 700 mm effective width
Product Images
Product Introduction
The ZKUV-754MD is a double-sided UV curing conveyor for simultaneous treatment of the upper and lower surfaces of printed PCBs.
The documented configuration has four 7.5 kW lamps, a 700 mm effective width and a 50 mm inlet/outlet opening. Its layout combines a 500 mm loading section, an 1800 mm UV section and a 350 mm unloading section.

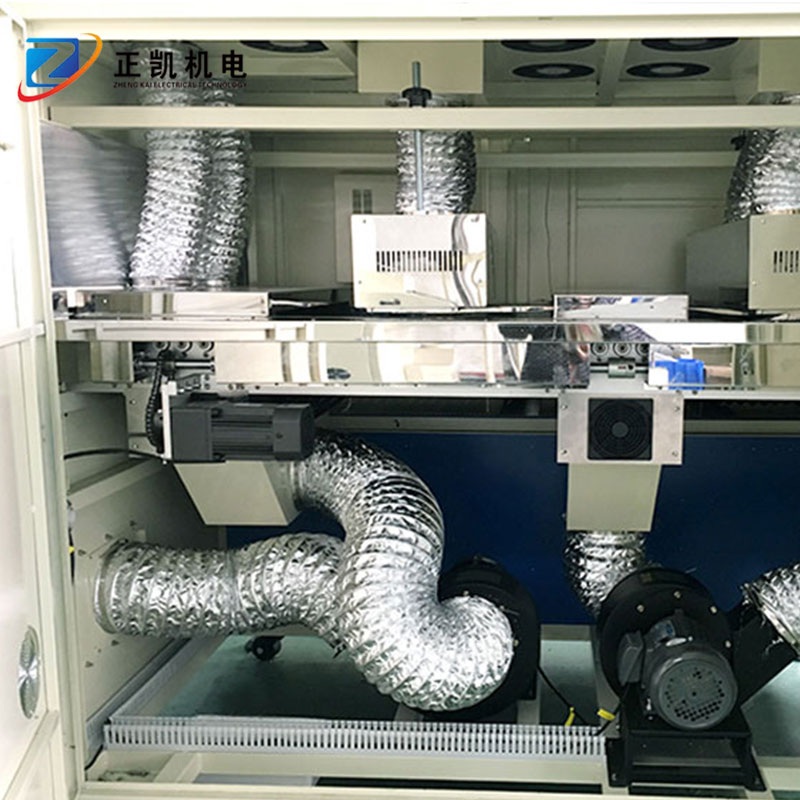

Upper and lower reflector assemblies provide the two-sided treatment arrangement. The conveyor uses shaft-driven transport with quartz glass at the lower-lamp positions. An operator interface and adjustable conveyor speed up to 3 m/min support process setup. Provide the PCB dimensions and ink requirements for configuration review.
Features and Operation
- Simultaneous upper and lower surface treatment
- Four 7.5 kW lamps
- 700 mm effective width
Technical Specifications
- Effective width
- 700 mm
- Lamp configuration
- 4 × 7.5 kW
- Maximum conveyor speed
- 3 m/min
- Inlet/outlet opening height
- 50 mm
- UV section length
- 1800 mm
- Conveyor height
- 1080 ± 20 mm
- Overall dimensions (L × W × H)
- Approx. 2650 × 1250 × 1950 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 32 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
