Three-Level Conveyor Furnace for Printed Panels

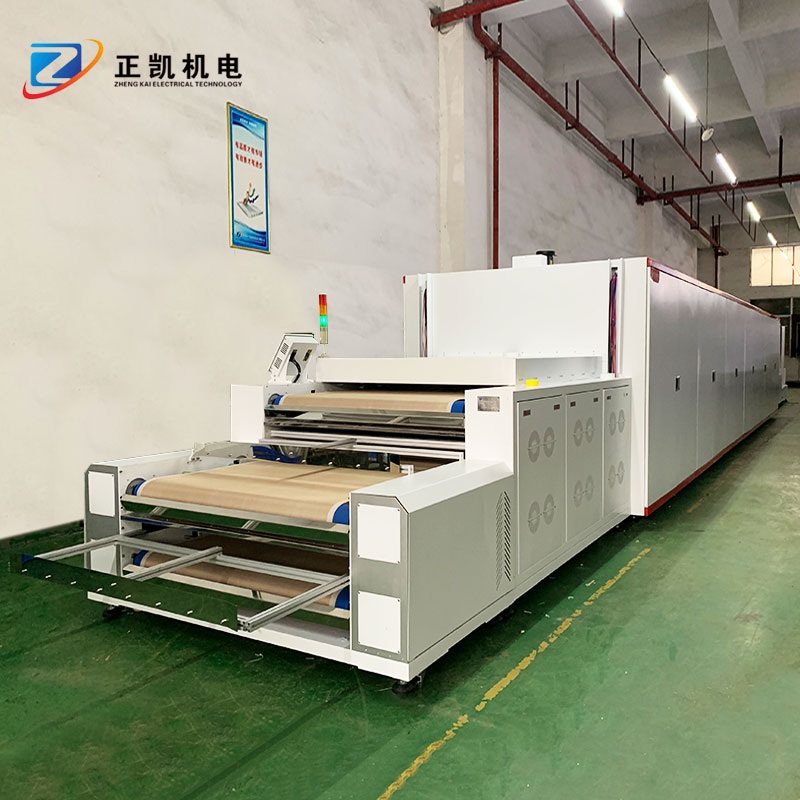

The ZKBCO-1100-3-6 dries printed inks on composite panels and PET surfaces using three conveyor levels.
- Three conveyor levels
- Loading platforms for printed panels
- Horizontal hot-air circulation with filtration
Product Images
Product Introduction
The ZKBCO-1100-3-6 dries printed inks on composite panels and PET surfaces using three conveyor levels.

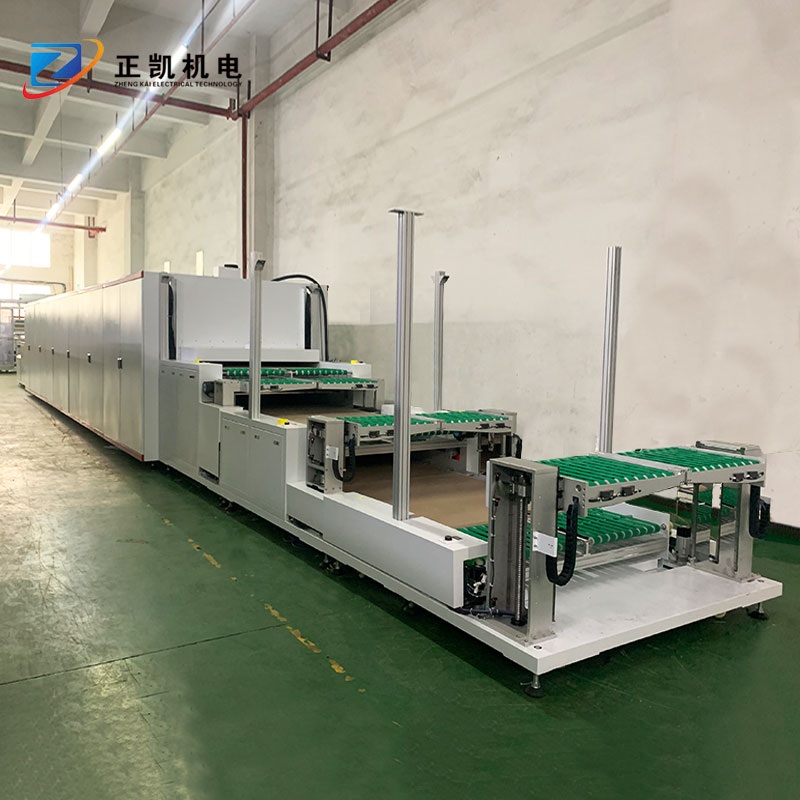

The documented conveyor width is 1100 mm, with speed adjustable from 0.5 to 5 m/min. Loading platforms transfer manually placed workpieces to the selected level. The 10-metre heating section is divided into six sections.
Horizontal hot-air circulation, air filtration and adjustable inlet and exhaust dampers support the heating process. The maximum furnace temperature setting is 120 °C. PLC and operator-interface controls support operation. Provide the printed material, drying profile and upstream layout to confirm the configuration.
Features and Operation
- Three conveyor levels
- Loading platforms for printed panels
- Horizontal hot-air circulation with filtration
Technical Specifications
- Conveyor width
- 1100 mm
- Conveyor speed
- 0.5–5 m/min
- Conveyor levels
- 3
- Heating section length
- 10000 mm
- Heating sections
- 6
- Maximum furnace temperature setting
- 120 °C
Specifications describe the documented configuration. Confirm the final configuration for your application.
