PET Preheating IR Tunnel Furnace
The ZKCO-RTR-10-6 preheats PET material using black ceramic long-wave infrared heating. Material travels through the heated section and then cools before collection; the furnace can also connect to unwinding and rewinding equipment.
- Long-wave infrared heating for PET preheating
- Six heating zones
- Connection to roll-handling equipment

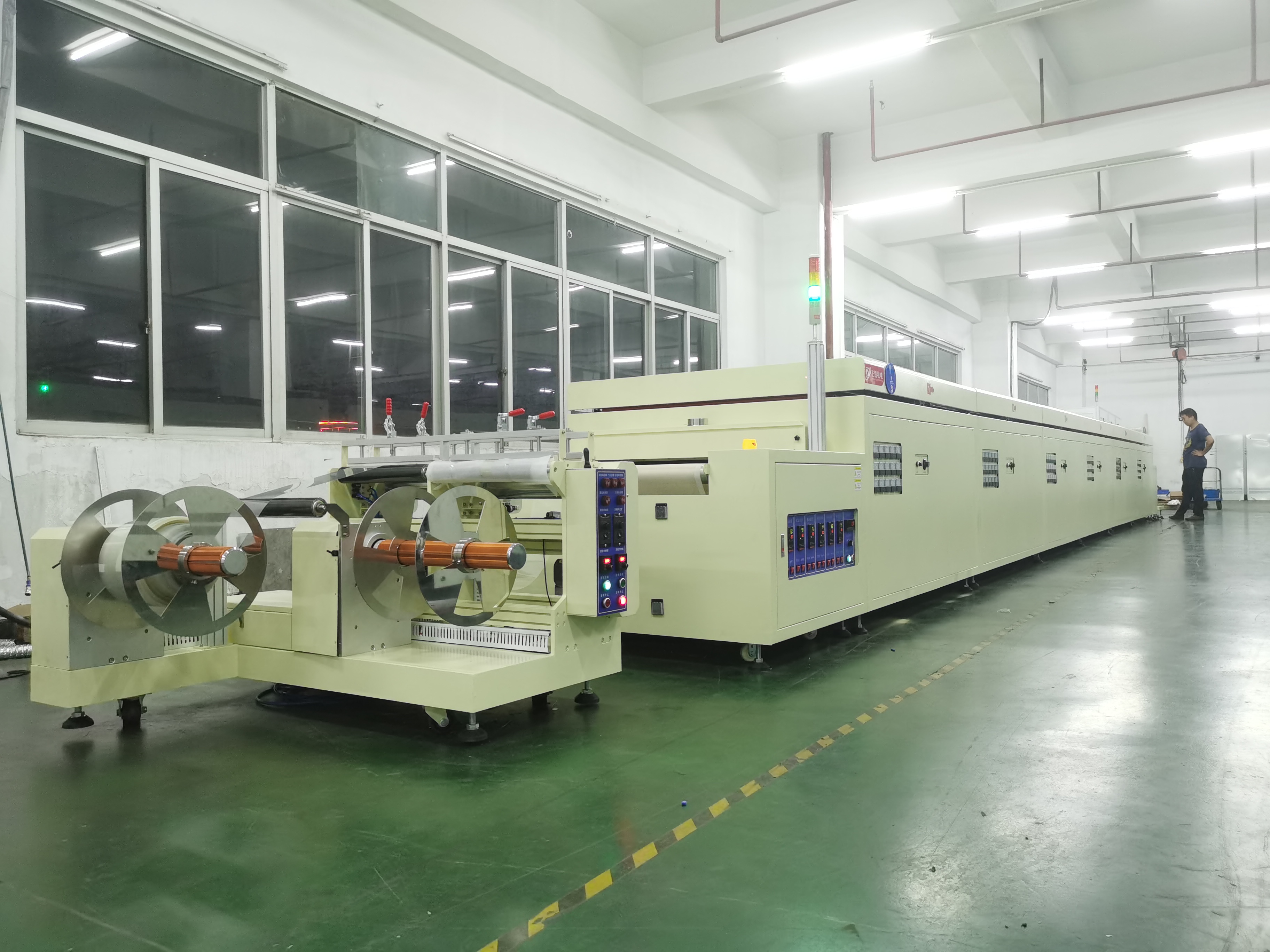

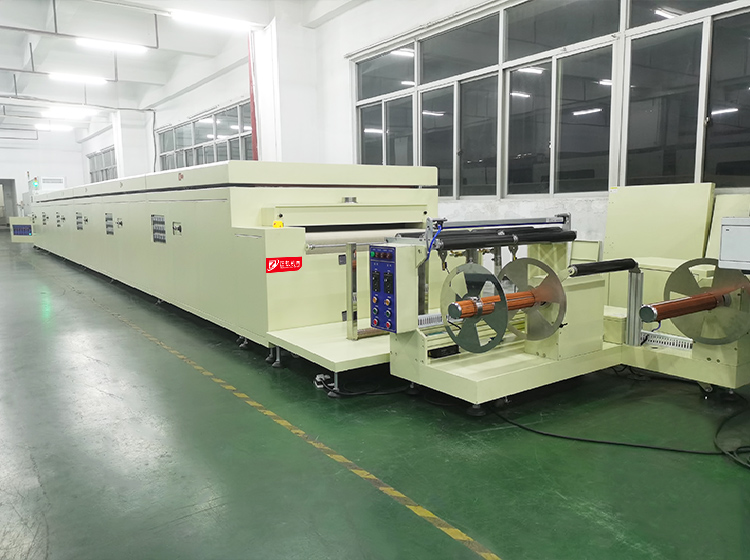

Product Images
Product Introduction
The ZKCO-RTR-10-6 preheats PET material using black ceramic long-wave infrared heating. Material travels through the heated section and then cools before collection; the furnace can also connect to unwinding and rewinding equipment.
The documented heating section is 12 metres long and divided into six 2-metre temperature zones. The maximum furnace temperature setting is 200 °C, with 180 °C listed as a common operating temperature.
The furnace body measures 13500 × 1680 × 1700 mm (length × width × height). The documented total line length including roll-handling equipment is 16900 mm. Provide the PET construction, required temperature profile and handling method to confirm the layout.
Features and Operation
- Long-wave infrared heating for PET preheating
- Six heating zones
- Connection to roll-handling equipment
Technical Specifications
- Heating section length
- 12000 mm
- Heating zones
- 6
- Length per heating zone
- 2000 mm
- Maximum furnace temperature setting
- 200 °C
- Furnace body (L × W × H)
- 13500 × 1680 × 1700 mm
- Total length with roll-handling equipment
- 16900 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
