Microcomputer-Controlled Screen Exposure Machine
The ZKUV-3KW is a microcomputer-controlled screen exposure machine for photosensitive screen-printing screens. The archived configuration has one 3 kW exposure lamp and a maximum exposure size of 1000 × 1200 mm.
- Microcomputer control of vacuum and exposure time.
- Single exposure lamp with vacuum-contact screen handling.
- Manual and automatic operating modes.

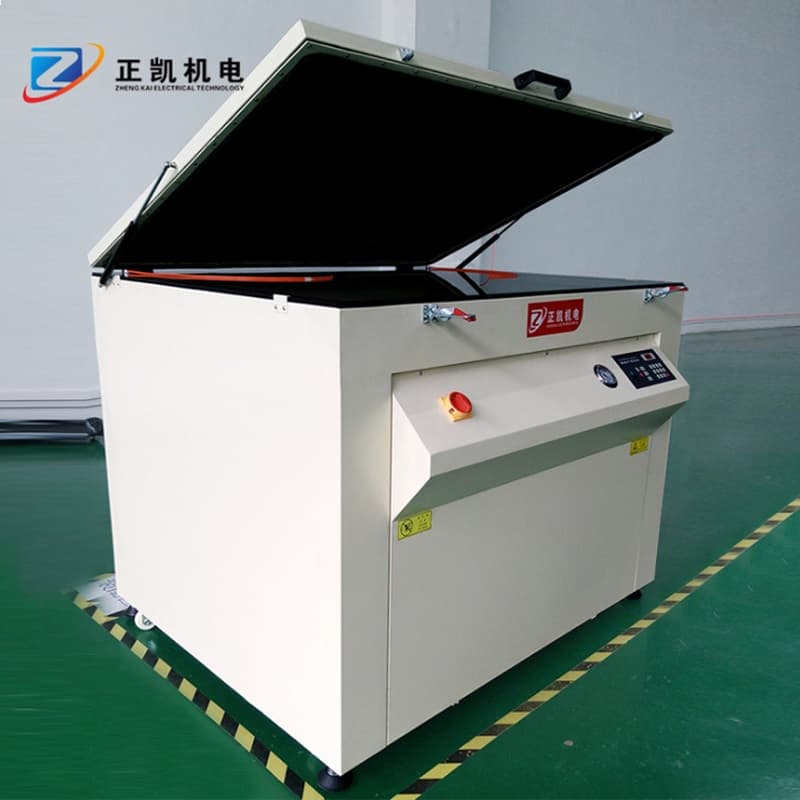

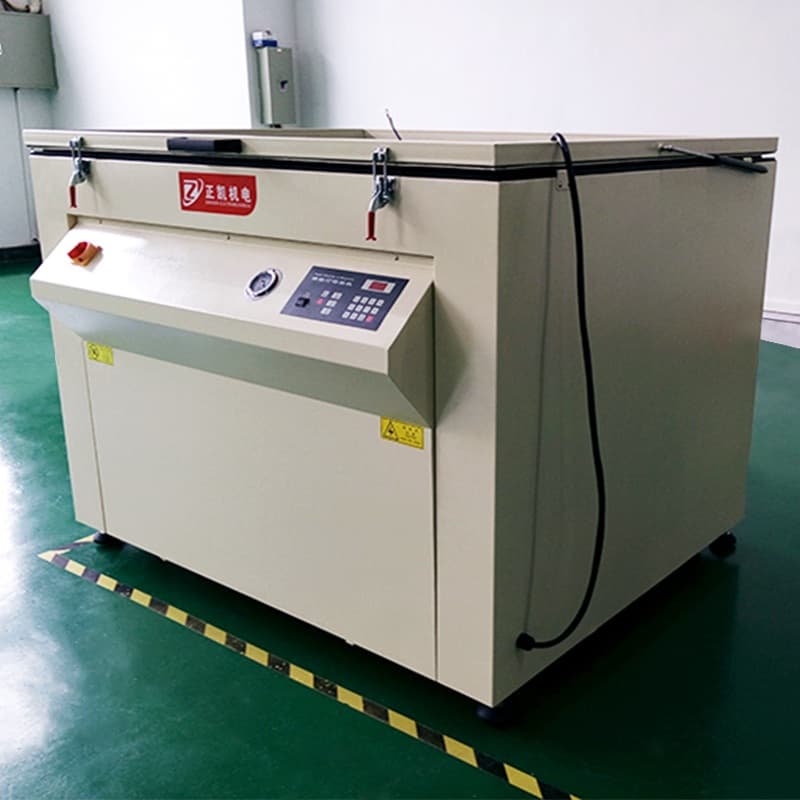

Product Images
Product Introduction
The ZKUV-3KW is a microcomputer-controlled screen exposure machine for photosensitive screen-printing screens. The archived configuration has one 3 kW exposure lamp and a maximum exposure size of 1000 × 1200 mm.
The operator sets vacuum time and exposure time through the control panel. A vane vacuum pump and rubber blanket support contact during exposure. Manual and automatic operating modes allow the exposure sequence to be set for the screen.
Provide the screen-frame dimensions, photosensitive emulsion and required image detail to select the operating conditions. Confirm the exposure time for the actual screen and emulsion.
Features and Operation
- Microcomputer control of vacuum and exposure time.
- Single exposure lamp with vacuum-contact screen handling.
- Manual and automatic operating modes.
Technical Specifications
- Maximum exposure size
- 1000 × 1200 mm
- Exposure lamp power
- 3 kW
- Exposure lamps
- 1
- Installed power
- 3.5 kW
- Power supply
- AC 220 V, single-phase, 50 Hz
Specifications describe the documented configuration. Confirm the final configuration for your application.
