Double-Sided Glass Laminating and Cutting Machine
The ZKFM-600-2 applies film to both sides of glass products and cuts the film to separate the pieces. The documented applications include cover glass and OGS products, including shaped parts.
- Double-sided glass film application
- Upper protective and lower high-adhesion film
- Traversing film cutter

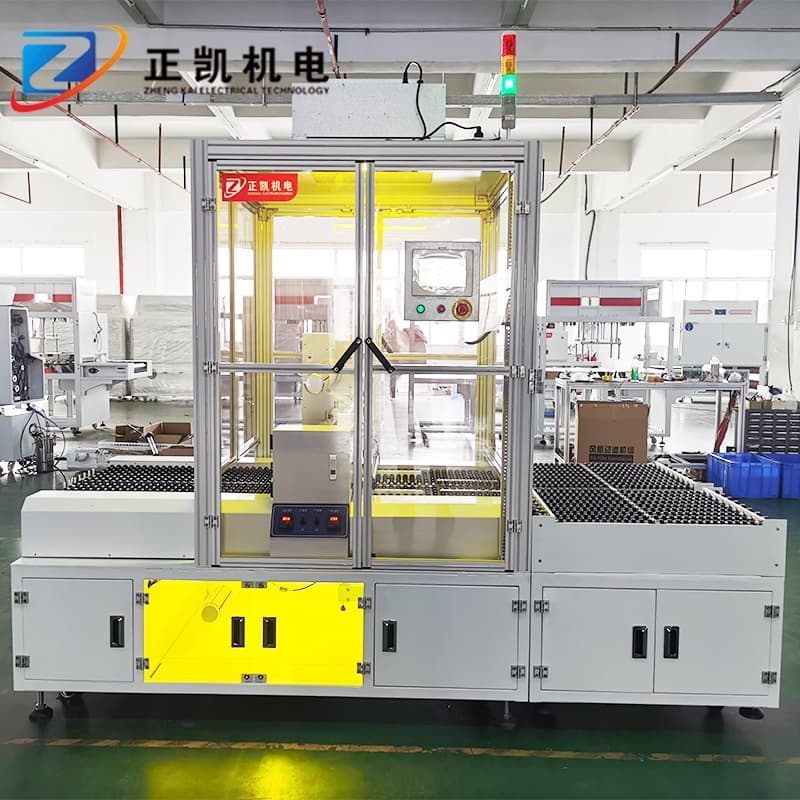

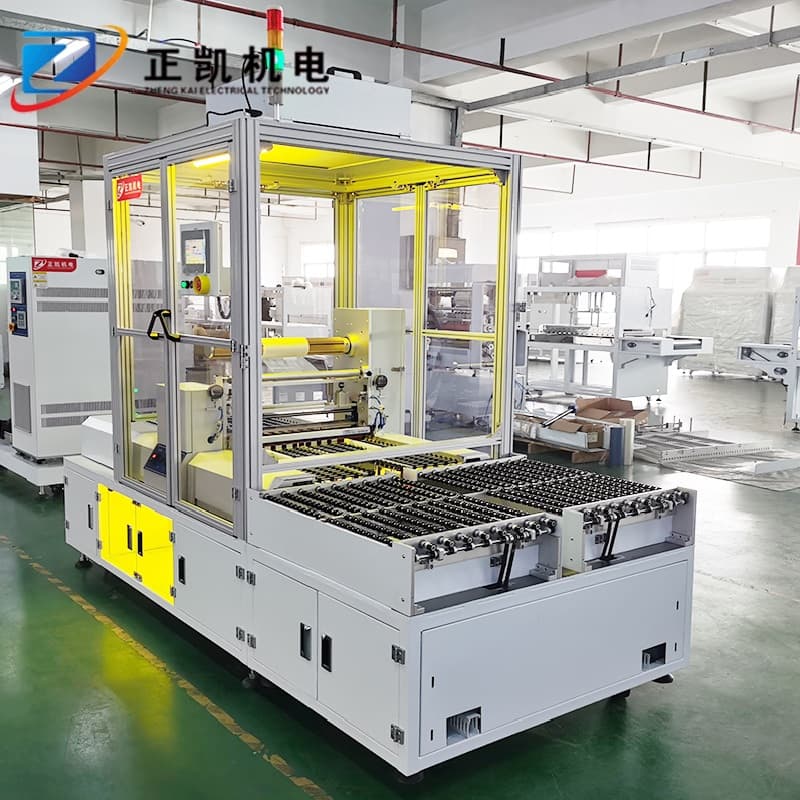

Product Images
Product Introduction
The ZKFM-600-2 applies film to both sides of glass products and cuts the film to separate the pieces. The documented applications include cover glass and OGS products, including shaped parts.
The configuration uses upper protective film and lower high-adhesion film, with 600 mm film rolls. Material thickness is 0.7–3 mm and laminating speed is adjustable from 0 to 4 m/min.
Automatic alignment positions the glass before lamination. A DC-motor-driven blade traverses the protective film, and UPE rollers convey the pieces through the inlet and outlet. Provide a product drawing and film construction to confirm size limits and the required layout.
Features and Operation
- Double-sided glass film application
- Upper protective and lower high-adhesion film
- Traversing film cutter
Technical Specifications
- Material thickness
- 0.7–3 mm
- Film-roll width
- 600 mm
- Maximum film-roll outside diameter
- 200 mm
- Core diameter
- 3 in
- Laminating speed
- 0–4 m/min
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 2 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
