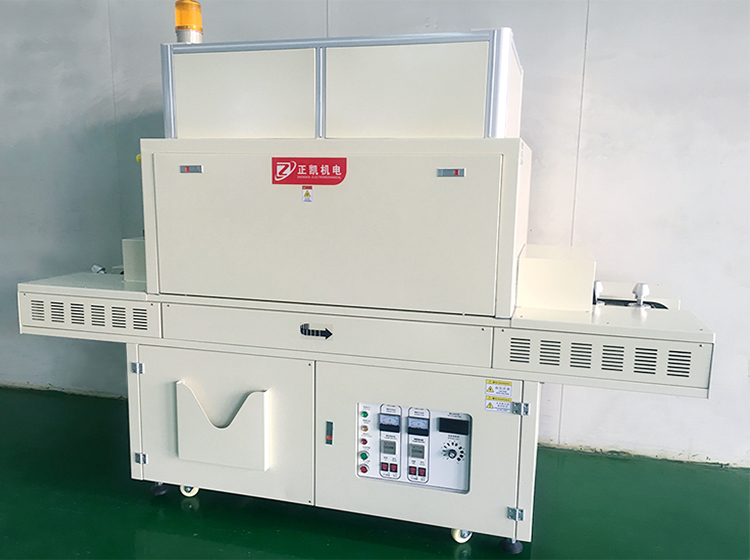

UV Curing Machine for Round Containers
The ZKUV-202 is a UV drying machine for round containers. Fixtures on a stainless-steel chain conveyor carry the containers through the UV section. The fixtures rotate through 360 degrees in that section, with a UV lamp installed on each side.
- Rotating fixtures for round containers.
- Two side-mounted UV lamps.
- Variable-speed chain conveyor.
Product Images
Product Introduction
The ZKUV-202 is a UV drying machine for round containers. Fixtures on a stainless-steel chain conveyor carry the containers through the UV section. The fixtures rotate through 360 degrees in that section, with a UV lamp installed on each side.

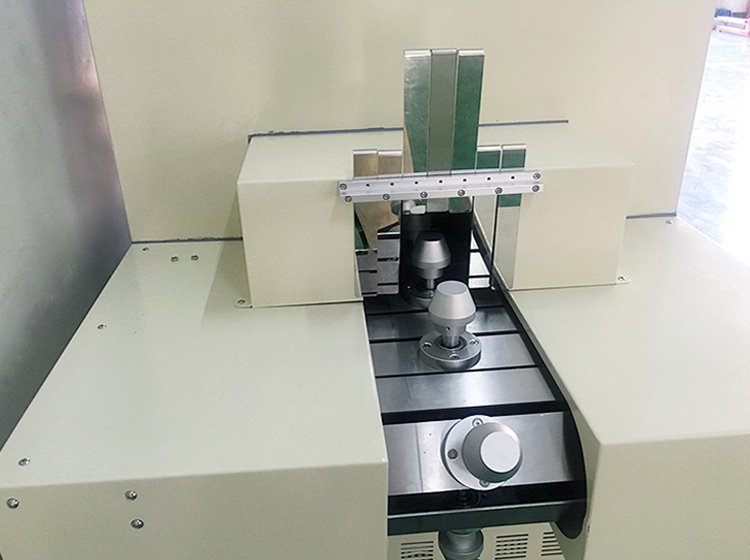

The fixture arrangement is intended for containers with a 40–55 mm internal diameter, an external diameter below 120 mm and a height below 100 mm. Container shape and coating requirements determine the final fixture and operating settings.
The controls include lamp current indication, operating-hour recording, speed indication and high/low lamp output selection. Send a container drawing, coating specification and output requirement to review the suitable configuration.
Features and Operation
- Rotating fixtures for round containers.
- Two side-mounted UV lamps.
- Variable-speed chain conveyor.
Technical Specifications
- Conveyor width
- 200 mm
- UV lamps
- 2 × 2 kW
- Lamp luminous length
- 250 mm
- Maximum conveyor speed
- 8 m/min
- Container internal diameter
- 40–55 mm
- Container external diameter
- <120 mm
- Container height
- <100 mm
- Power supply
- AC 380 V, three-phase, 50 Hz; 6 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
