Two-Sided PCB UV Curing Machine
The ZKUV-901MD is a two-sided UV curing machine for simultaneous treatment of the upper and lower surfaces of printed PCBs.
- Simultaneous upper and lower surface treatment
- Two 9 kW lamps
- 750 mm effective width

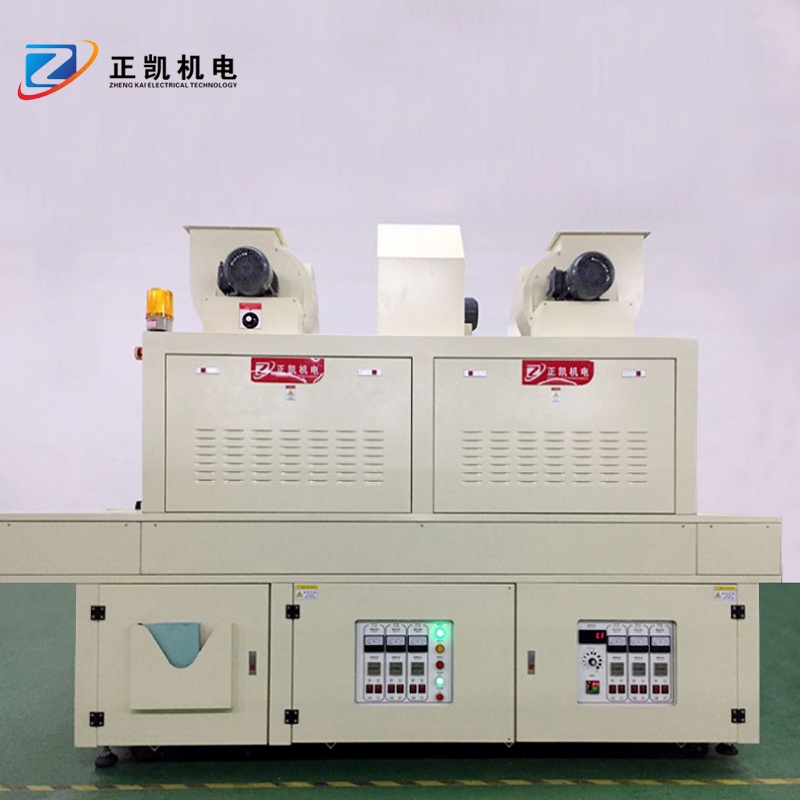

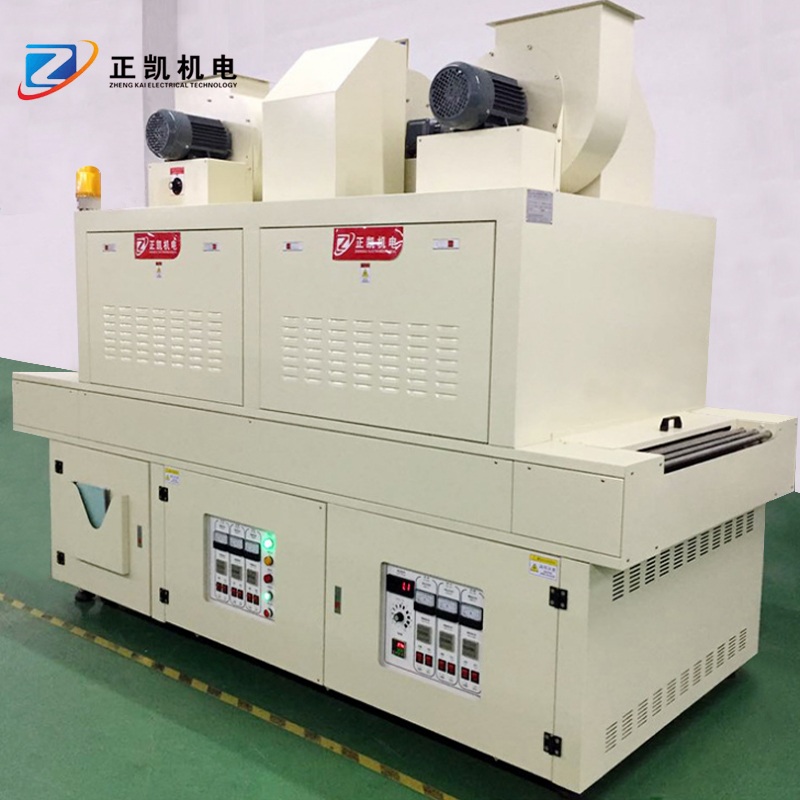

Product Images
Product Introduction
The ZKUV-901MD is a two-sided UV curing machine for simultaneous treatment of the upper and lower surfaces of printed PCBs.
Two 9 kW lamps serve a documented effective width of 750 mm. The machine has 50 mm inlet and outlet openings, a 500 mm loading section, a 1000 mm UV section and a 500 mm unloading section.
Upper and lower reflector assemblies support two-sided treatment. Shaft-driven transport and forced-air extraction are specified for this configuration. Share the PCB dimensions and ink system when requesting process and configuration confirmation.
Features and Operation
- Simultaneous upper and lower surface treatment
- Two 9 kW lamps
- 750 mm effective width
Technical Specifications
- Effective width
- 750 mm
- Lamp configuration
- 2 × 9 kW
- Inlet/outlet opening height
- 50 mm
- Lamp luminous length
- 750 mm
- UV section length
- 1000 mm
- Overall dimensions (L × W × H)
- Approx. 2000 × 1200 × 2040 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 20 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
