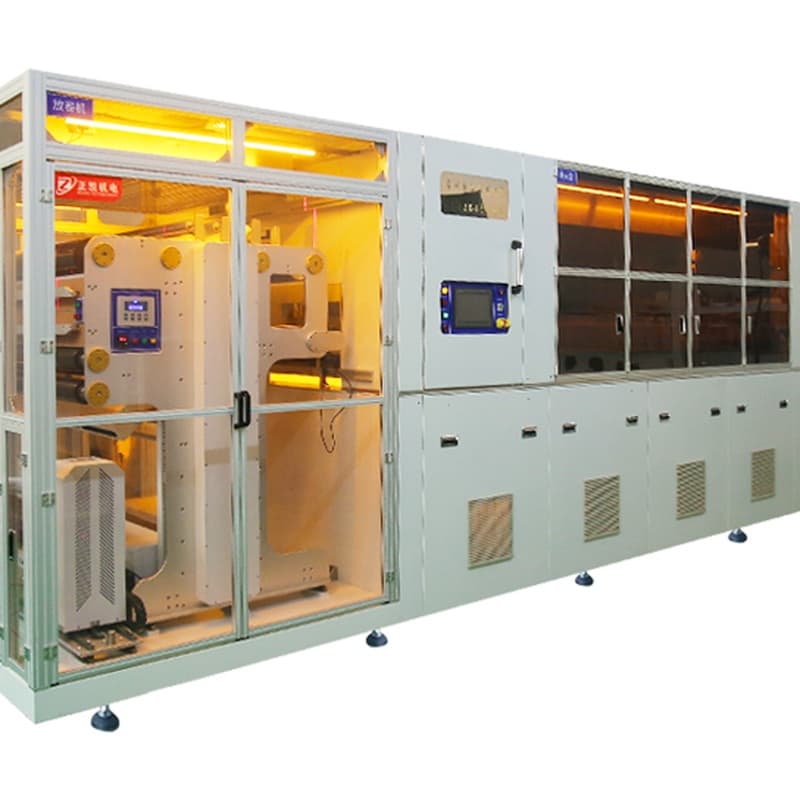

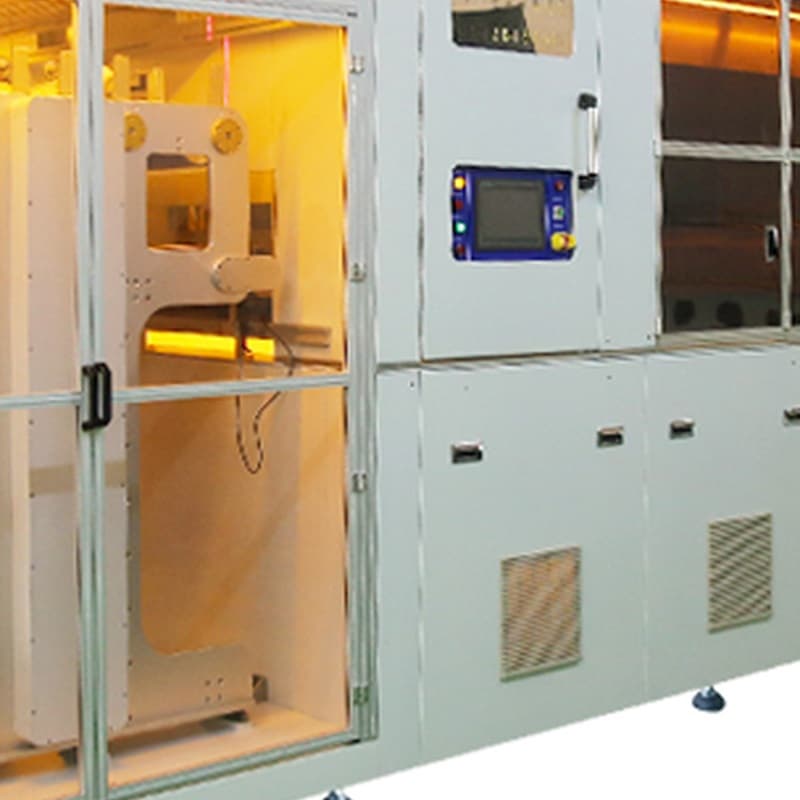

Large-Format Roll-to-Roll Exposure Machine
Large-format roll-to-roll LED exposure with unwinding, single-sided parallel scanning exposure and rewinding.
- Roll-to-roll unwind and rewind modules
- Bottom-up single-sided parallel scanning exposure
- 365 ±5 nm LED exposure source
Specifications
Specifications shown are based on a reviewed configuration. Final specifications are subject to project confirmation.
Swipe horizontally to view all specifications.
| Product Information | |
|---|---|
| Model | ZK-R2R-BG-1300 |
| Product Type | Large-Format Roll-to-Roll Exposure Machine |
| Reviewed Project Configuration | |
| Maximum Material Width | 1300 mm |
| Material Thickness | 0.1–0.5 mm |
| Maximum Roll Diameter | 650 mm |
| Roll Core | 6 inches |
| Approximate Roll Weight | 400 kg |
| Material Handling | |
| Typical Transport Speed | Approx. 5 m/min |
| Unwind / Rewind Guiding Accuracy | ±0.5 mm |
| Exposure System | |
| Effective Exposure Area | 2300 × 1300 mm |
| Exposure Method | Bottom-up single-sided parallel scanning |
| Reviewed Project Configuration | |
| Nominal Cycle | 90 s/sheet |
| Exposure System | |
| UV Wavelength | 365 ±5 nm |
| Initial Irradiance | 20 mW/cm² |
| Reviewed Project Configuration | |
| Exposure Resolution | 10 µm |
| Documented Line Geometry | 5–15 µm line width; 25 µm line spacing |
| Exposure System | |
| Parallel Half-Angle | <2° |
| Vacuum System | ≥400 mmHg |
| Controls & Integration | |
| Control System | PLC + HMI with RS485 interface in the reviewed project |
| Utilities | |
| Power Supply | AC 220 V, single-phase, 50 Hz |
| Installed Power | 12 kW |
Product Details
The ZK-R2R-BG-1300 handles flexible web material through single-axis unwinding, bottom-up single-sided parallel scanning exposure and single-axis rewinding. The reviewed project is configured for material up to 1300 mm wide.
The exposure section combines a 365 ±5 nm LED source, energy control through the HMI and a vacuum exposure table. Material, photo-process, film alignment, exposure energy, web tension and cycle requirements must be confirmed for each project.
Features
- Roll-to-roll unwind and rewind modules
- Bottom-up single-sided parallel scanning exposure
- 365 ±5 nm LED exposure source
- HMI exposure-energy control and vacuum table
Product Advantages
- Exposure and web handling integrated in one reviewed configuration
- HMI exposure-energy control
- Automatic guiding on unwind and rewind modules
Large-Format Roll-to-Roll Exposure

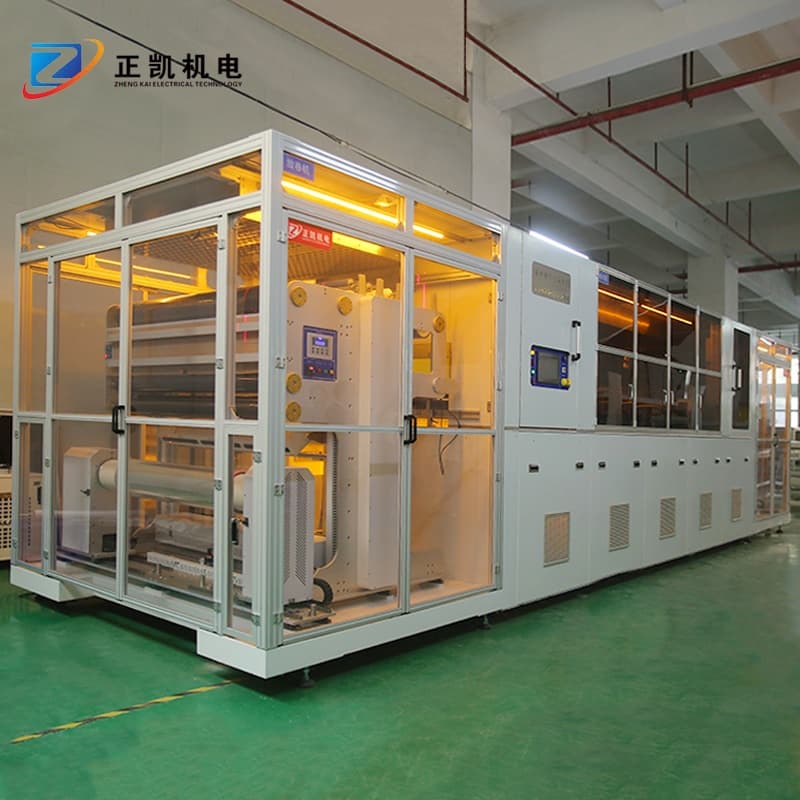

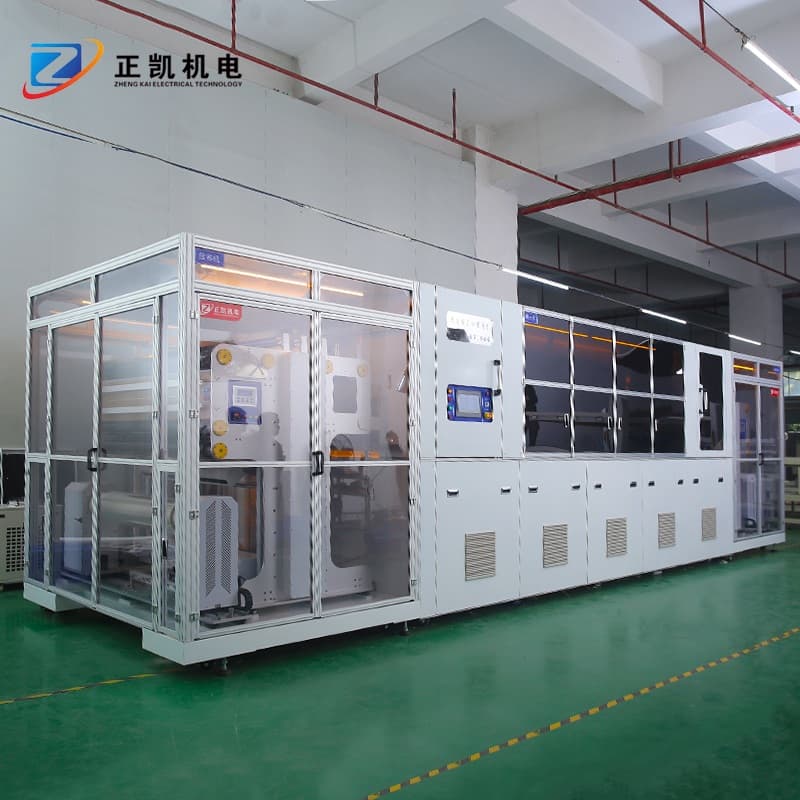

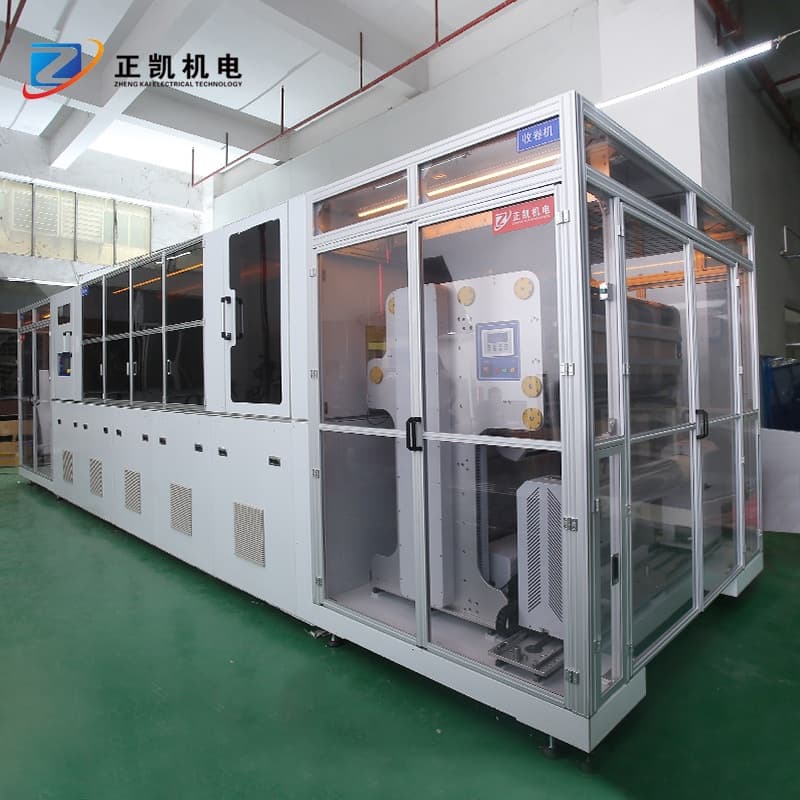

The ZK-R2R-BG-1300 combines independent unwind and rewind modules with a 2300 × 1300 mm exposure area. Web material is positioned on the vacuum table for bottom-up single-sided parallel scanning exposure.
Reviewed Exposure Configuration
- 365 ±5 nm LED source with HMI exposure-energy control.
- Automatic web guiding on the unwind and rewind modules.
- Vacuum table documented at 400 mmHg or higher.
- PLC control with an RS485 interface in the reviewed project.
Project Inputs
Provide the web material, thickness, roll dimensions and weight, photo-process, film dimensions, target line geometry, exposure energy, required cycle and factory interfaces. Published numerical values describe the reviewed project and must be reconfirmed.
Frequently Asked Questions
Can the UV Exposure Machine be configured for a specific process?
Yes. Configuration review begins with the workpiece or material, required process conditions, working dimensions, target capacity, utilities and factory layout.
What information is needed for equipment selection?
Provide the material, workpiece size, process target, operating conditions, production requirement and any available drawings, product photos or specifications.
Are the listed specifications final?
No. Published values are drawn from the available product package. Final dimensions, utilities, options and performance requirements are confirmed for each project.
