ITO Film Laminating and Cutting Machine
The ZKFM-600 applies protective film to ITO film after printed silver circuits have passed through an IR curing furnace, then separates the material into sheets.
- Protective-film application after silver-circuit curing
- Automatic material alignment
- Vacuum holding beneath the film cutter

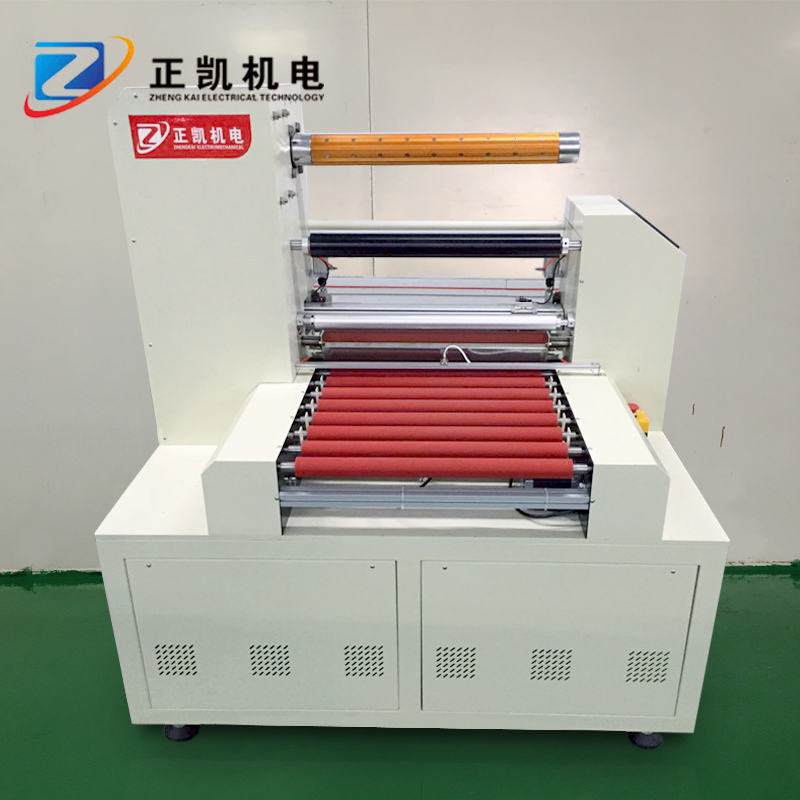

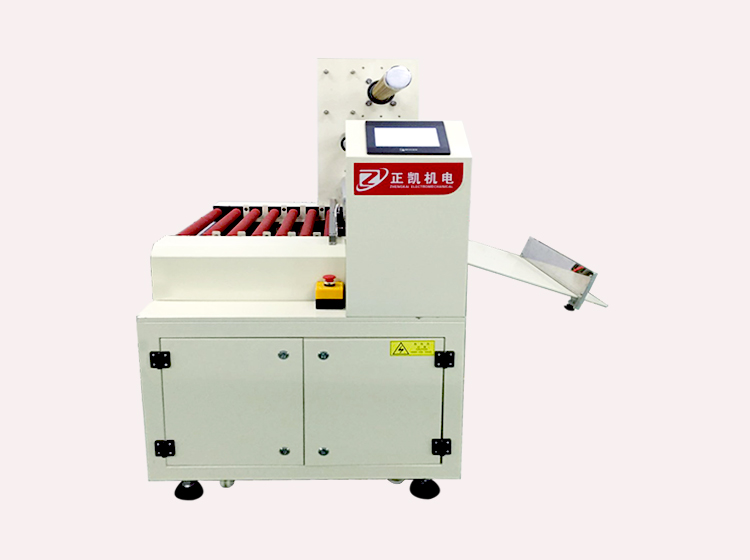

Product Images
Product Introduction
The ZKFM-600 applies protective film to ITO film after printed silver circuits have passed through an IR curing furnace, then separates the material into sheets.
The documented cutting width is 200–600 mm, for material 0.1–1 mm thick. Laminating speed is adjustable from 0 to 3 m/min. Automatic alignment positions the material before lamination.
The film supply uses an air-expanding shaft and magnetic-powder braking. A traversing blade cuts the protective film above a vacuum holding platform, and completed pieces enter a receiving tray. Provide the substrate and film requirements for configuration review.
Features and Operation
- Protective-film application after silver-circuit curing
- Automatic material alignment
- Vacuum holding beneath the film cutter
Technical Specifications
- Cut width
- 200–600 mm
- Material thickness
- 0.1–1 mm
- Protective-film thickness
- 15–76 μm
- Laminating speed
- 0–3 m/min
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 1 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
