Double-Sided UV Irradiation Machine for EVA
The ZKUV-1017WA is a double-sided UV irradiation machine for EVA footwear components.
- Four upper lamps and three lower lamps
- Adjustable lamp positions and angles
- 600 mm stainless-steel conveyor belt

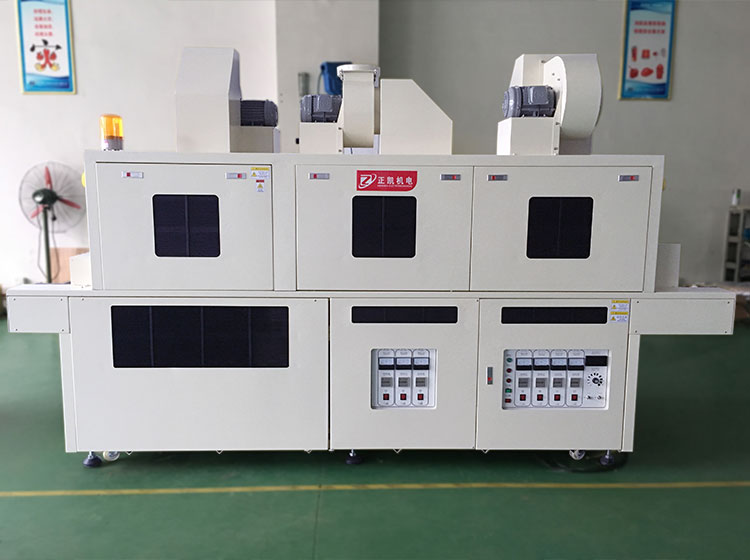

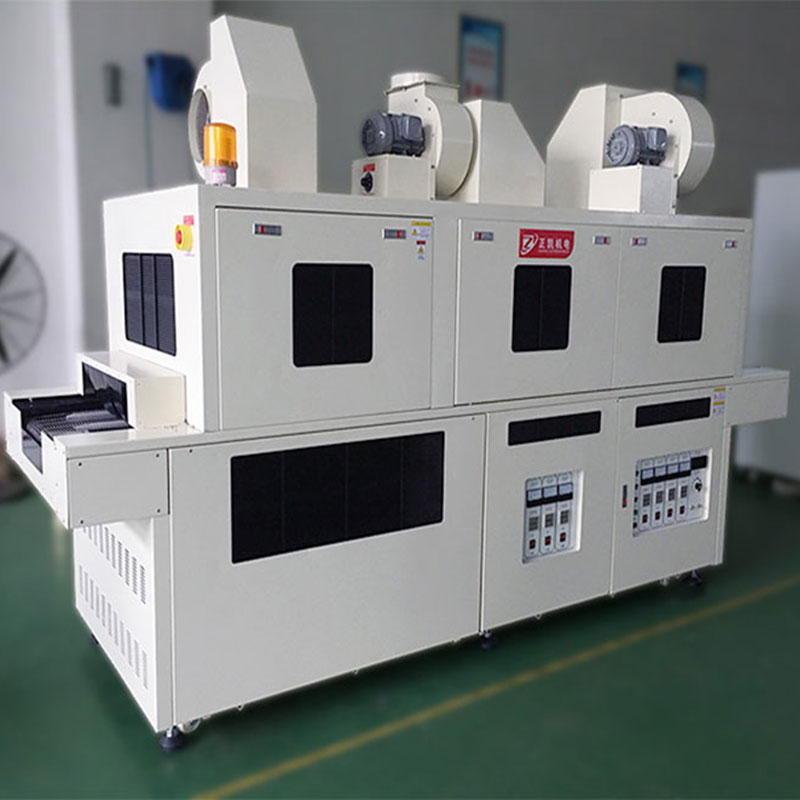

Product Images
Product Introduction
The ZKUV-1017WA is a double-sided UV irradiation machine for EVA footwear components.
The documented arrangement has four lamps above the conveyor and three below it, allowing upper and lower surfaces to be treated in one pass. Lamp positions and angles are adjustable. The stainless-steel conveyor belt is 600 mm wide; this does not specify the effective irradiation width.
The drive provides variable speed control with a digital speed display. Lamp current indication, an operating-time meter and high/low light selection support operation. Provide the EVA component dimensions and required surface-treatment process for configuration review.
Features and Operation
- Four upper lamps and three lower lamps
- Adjustable lamp positions and angles
- 600 mm stainless-steel conveyor belt
Technical Specifications
- Conveyor belt width
- 600 mm
- Upper lamps
- 4
- Lower lamps
- 3
- Lamp luminous length
- 250 mm
- Overall dimensions (L × W × H)
- Approx. 3000 × 1020 × 2100 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 16 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
