IR Tunnel Furnace for Printed Glass

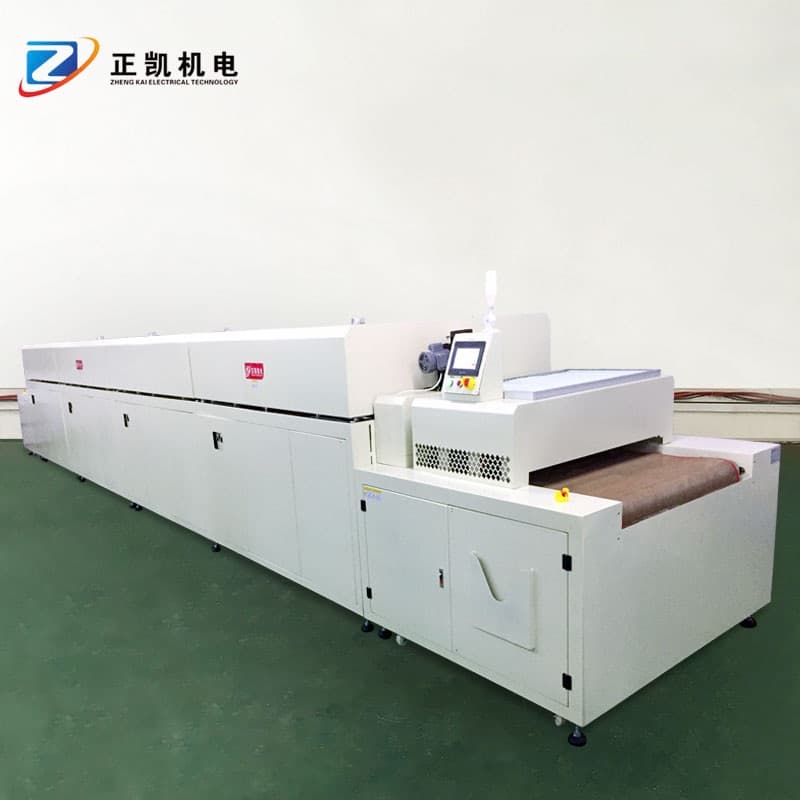

The ZKLCO-10-14 is an infrared tunnel furnace for drying printed ink on glass. A mesh conveyor transports the glass through an 8.5 m heating section divided into four zones, followed by discharge.
- Four-zone infrared heating section.
- Variable-speed mesh conveyor with belt tracking.
- Filtered recirculating airflow and powered upper-cover opening.
Product Images
Product Introduction
The ZKLCO-10-14 is an infrared tunnel furnace for drying printed ink on glass. A mesh conveyor transports the glass through an 8.5 m heating section divided into four zones, followed by discharge.

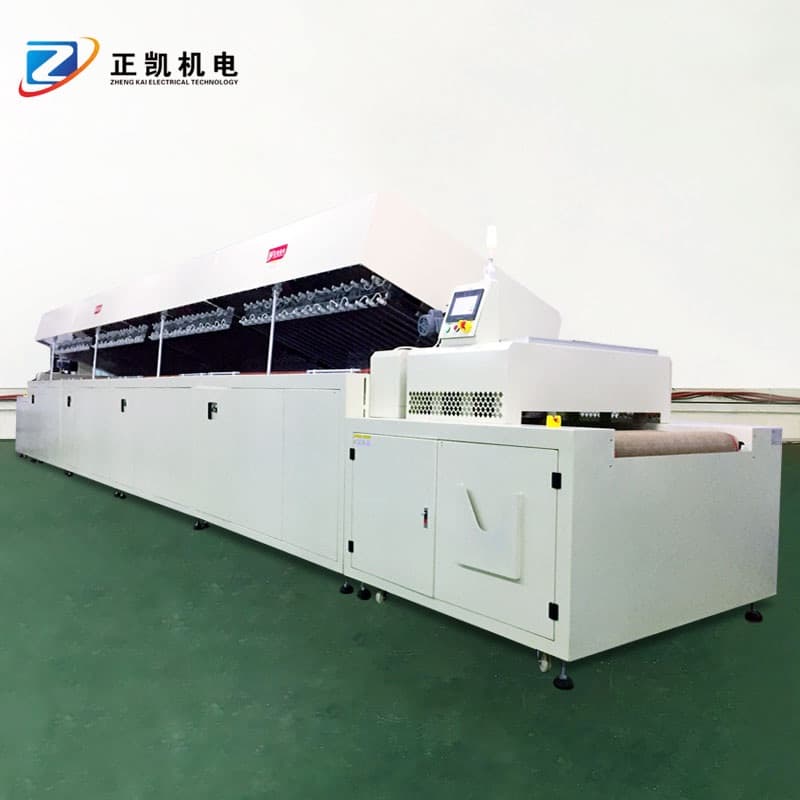

The heating system combines infrared radiation with recirculated air and filtered airflow. The conveyor has automatic belt tracking and variable-speed control. An electrically lifted upper cover provides access for cleaning and maintenance.
The documented process uses glass-surface temperatures of 150–180 °C. Provide the ink cure requirements, glass dimensions, tray layout and required dwell time so the conveyor speed and temperature settings can be reviewed.
Features and Operation
- Four-zone infrared heating section.
- Variable-speed mesh conveyor with belt tracking.
- Filtered recirculating airflow and powered upper-cover opening.
Technical Specifications
- Conveyor width
- 1000 mm
- Conveyor speed
- 0.2–2 m/min
- Heating section length
- 8500 mm
- Heating zones
- 4
- Typical material surface temperature
- 150–180 °C
- Transfer height
- 850 ±30 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
