Benchtop UV Drying Machine
The ZKUV-201 is a benchtop UV drying machine for electronic bonding, printing and adhesive-dispensing processes.
- Benchtop UV drying configuration
- Adjustable conveyor speed up to 3 m/min
- Separate electrical control box
Product Images
Product Introduction
The ZKUV-201 is a benchtop UV drying machine for electronic bonding, printing and adhesive-dispensing processes.
The documented conveyor layout has a 250 mm loading section, a 300 mm UV section and a 250 mm unloading section. Maximum conveyor speed is 3 m/min, with variable speed control and digital speed indication.

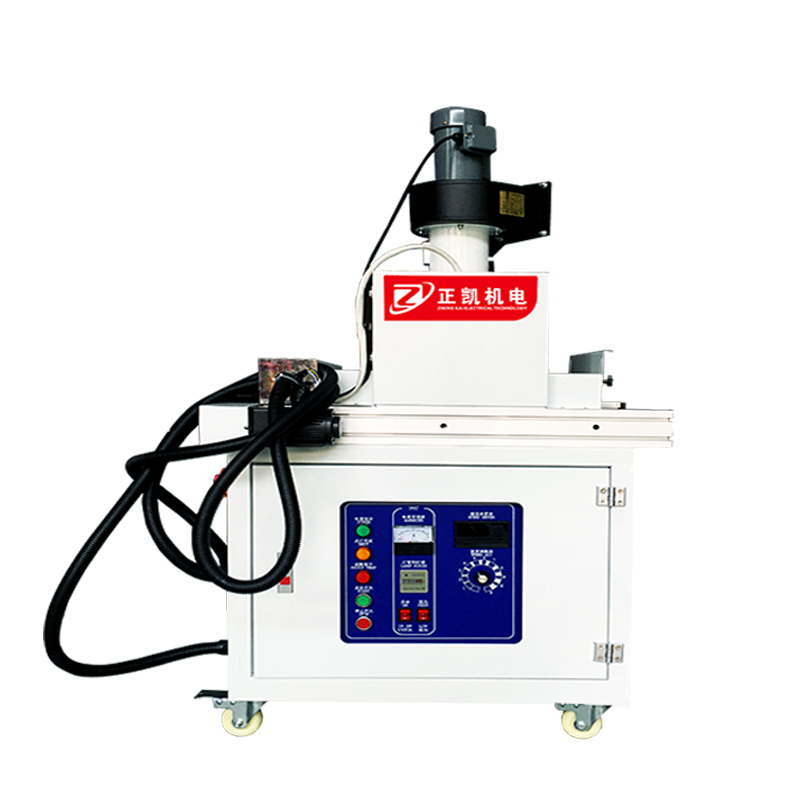

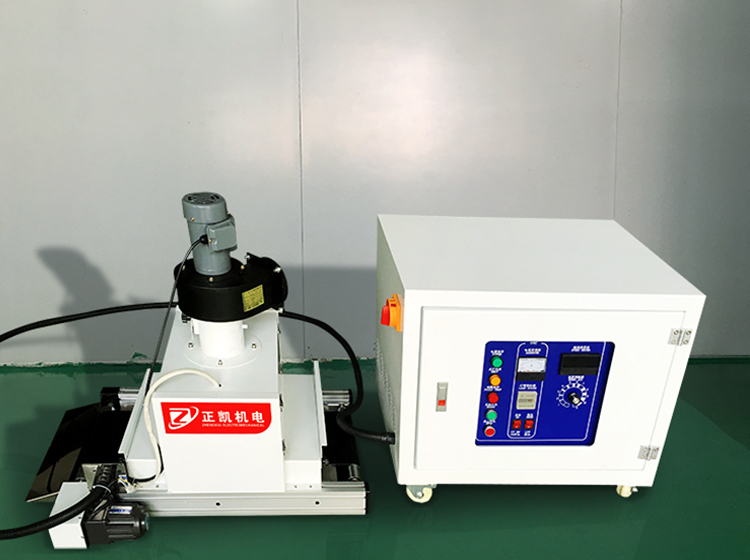

The UV unit measures approximately 800 × 485 × 750 mm, excluding the electrical control box. The photographs show the UV unit and control box in different arrangements. A CF cold mirror is specified in the reflector assembly. Share the material, adhesive or ink and workpiece dimensions to confirm the suitable setup.
Features and Operation
- Benchtop UV drying configuration
- Adjustable conveyor speed up to 3 m/min
- Separate electrical control box
Technical Specifications
- Maximum conveyor speed
- 3 m/min
- Lamp luminous length
- 250 mm
- UV section length
- 300 mm
- Loading section length
- 250 mm
- UV unit dimensions (L × W × H), excluding control box
- Approx. 800 × 485 × 750 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 2.5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
