Three-Layer Cleanroom IR Oven
Three-layer cleanroom IR heating with reciprocating conveyor transport for drying printed ink on acrylic and composite panels.
- Three-level reciprocating conveyor
- Five-zone short-wave infrared heating
- Filtered horizontal recirculating airflow
Specifications
Specifications shown are based on a reviewed configuration. Final specifications are subject to project confirmation.
Swipe horizontally to view all specifications.
| Product Information | |
|---|---|
| Model | ZKLCO-21-5-3 |
| Product Type | Three-Layer Cleanroom IR Oven |
| Reviewed Project Configuration | |
| Reviewed Process | Drying printed ink on acrylic and composite panels |
| Heating System | |
| Heating Method | Short-wave infrared |
| Material Handling | |
| Conveyor Structure | Three-level reciprocating conveyor |
| Reviewed Project Configuration | |
| Effective Width | 2100 mm |
| Conveyor Speed | 0.5–7 m/min |
| Heating System | |
| Heating Zones | 5 |
| Total Heating Length | 22.5 m total; 7.5 m per level |
| Reviewed Project Configuration | |
| Typical Material Temperature | 80 °C |
| Material Temperature Uniformity | ±5 °C across width |
| Heating System | |
| Maximum Oven Setting | 120 °C |
| Controls & Integration | |
| Control System | PLC + HMI in the reviewed configuration |
| Utilities | |
| Installed Power | 80 kW |
Product Details

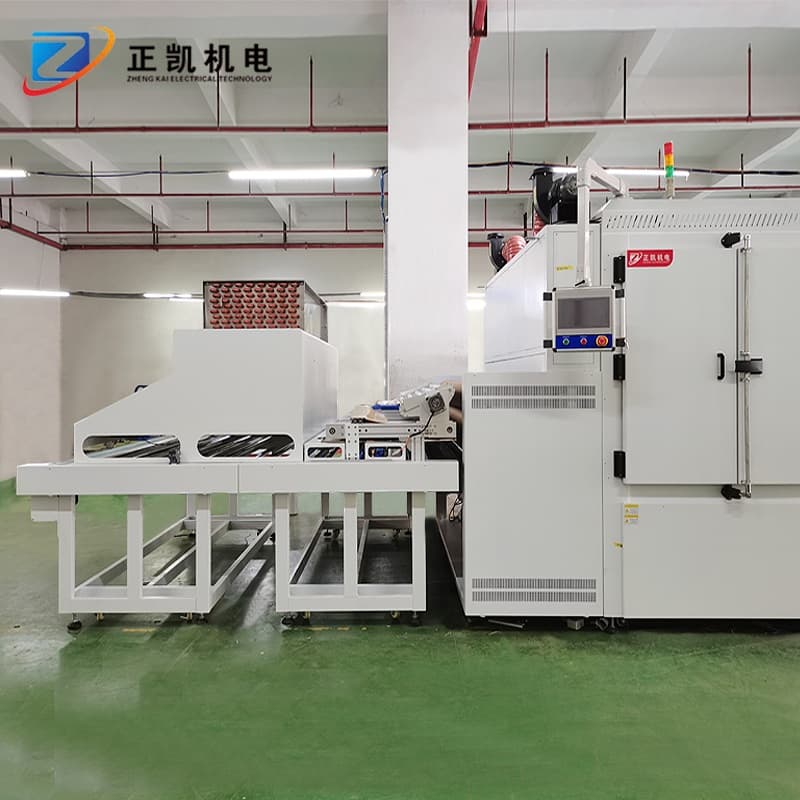

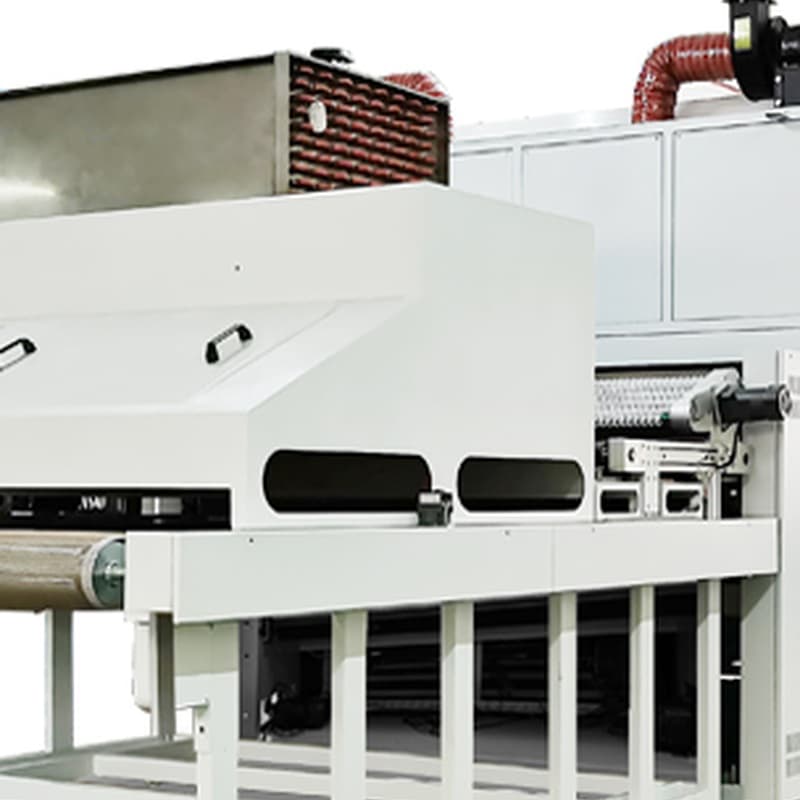

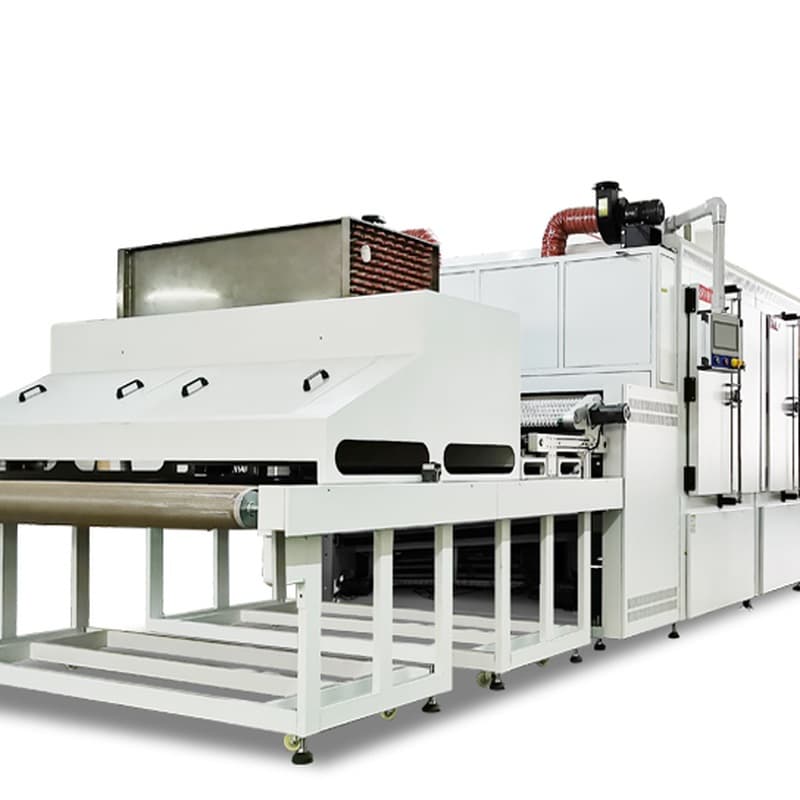

The ZKLCO-21-5-3 is a three-layer cleanroom IR oven documented for drying surface-printed ink on acrylic and composite panels. Its reciprocating conveyor arrangement places three transport levels inside one production system.
The reviewed project uses short-wave infrared heating, five independently controlled heating zones and filtered horizontal recirculating airflow. Width, speed, temperature profile, loading pitch and utilities must be reconfirmed for each process.
Features
- Three-level reciprocating conveyor
- Five-zone short-wave infrared heating
- Filtered horizontal recirculating airflow
- PLC and HMI control shown in the reviewed package
Product Advantages
- Three-level reciprocating transport in the reviewed package
- Five independently controlled heating zones
- Filtered horizontal recirculating airflow
Three-Layer Cleanroom IR Processing

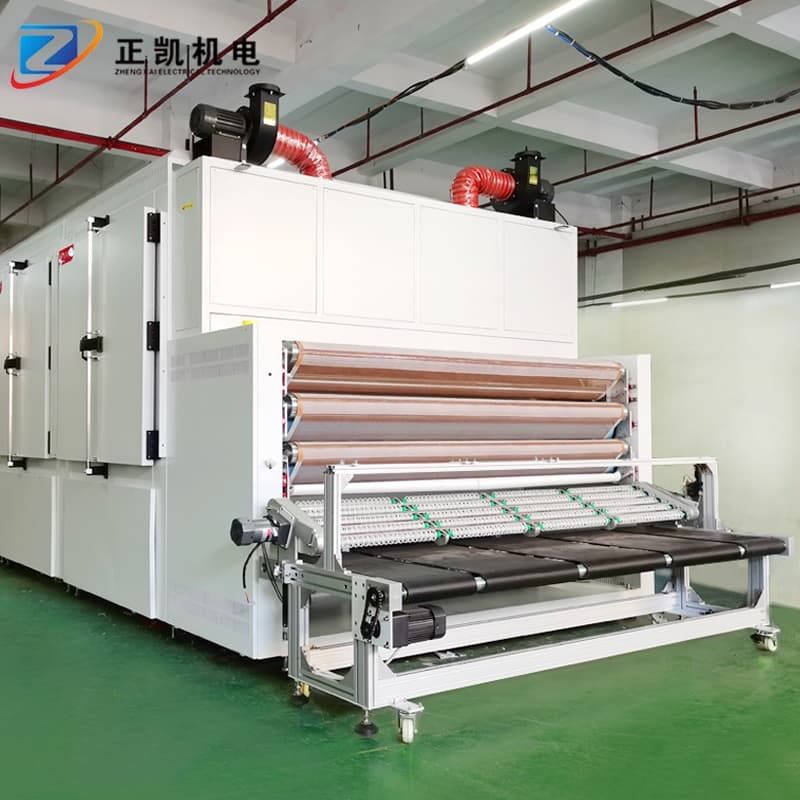

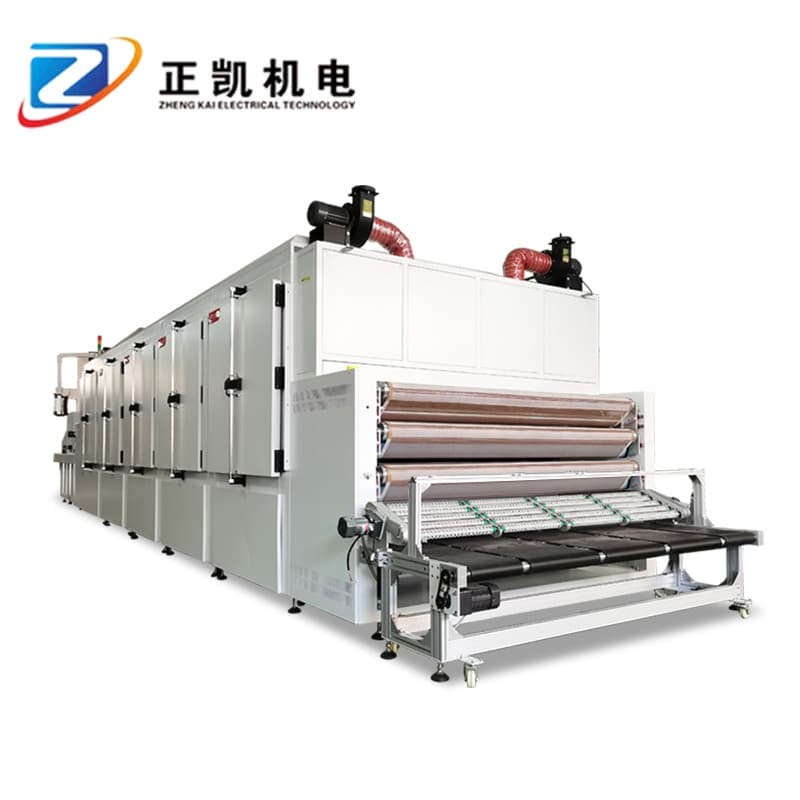

The ZKLCO-21-5-3 combines three reciprocating conveyor levels with short-wave infrared heating for the reviewed acrylic and composite-panel ink-drying process. The stacked layout increases conveyor path length without requiring a single straight 22.5 m heating section.
Reviewed Heating and Transport Configuration
- 2100 mm effective conveyor width in the reviewed project.
- Five temperature zones across a total 22.5 m heating path.
- Filtered horizontal recirculating airflow with adjustable intake and exhaust dampers.
- Automatic conveyor tracking and continuously adjustable line speed.
Project Confirmation
Confirm the panel material, printed ink, loading orientation, working width, line speed, heating profile, acceptable temperature variation, cleanliness requirement and factory utilities before the equipment configuration is finalized.
Frequently Asked Questions
Can the Clean Room Tunnel Furnace be configured for a specific process?
Yes. Configuration review begins with the workpiece or material, required process conditions, working dimensions, target capacity, utilities and factory layout.
What information is needed for equipment selection?
Provide the material, workpiece size, process target, operating conditions, production requirement and any available drawings, product photos or specifications.
Are the listed specifications final?
No. Published values are drawn from the available product package. Final dimensions, utilities, options and performance requirements are confirmed for each project.
