Parallel-Light UV Screen Exposure Machine
The ZKUE-4PL2 is a parallel-light UV exposure machine for screens used in LCD, touch-panel and solar-industry processes. The documented configuration accepts a 1100 × 1300 mm screen and provides a 1000 × 1200 mm effective exposure area.
- Parallel-light optical arrangement.
- UV light integrator and 60 stored exposure settings.
- Adjustable vacuum pressure with an oil-free pump.

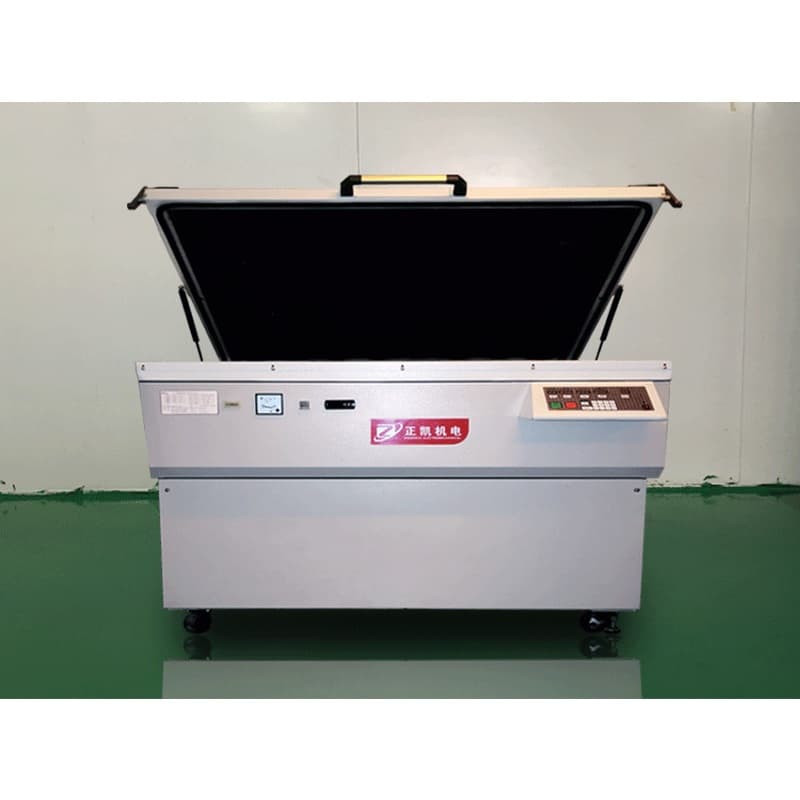

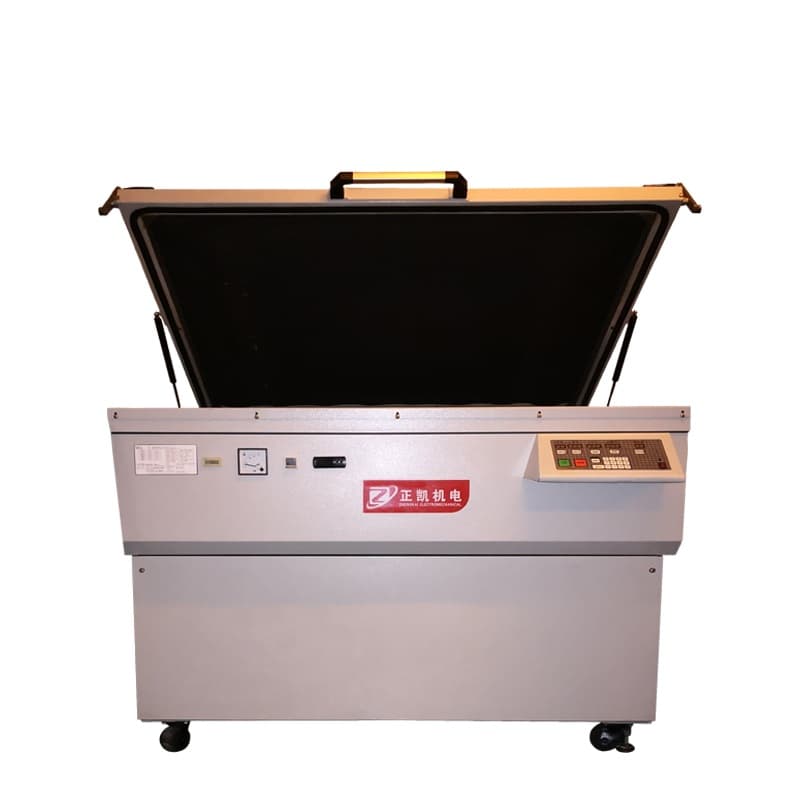

Product Images
Product Introduction
The ZKUE-4PL2 is a parallel-light UV exposure machine for screens used in LCD, touch-panel and solar-industry processes. The documented configuration accepts a 1100 × 1300 mm screen and provides a 1000 × 1200 mm effective exposure area.
The optical system directs exposure light through a parallel-light arrangement. A UV light integrator monitors the accumulated exposure, while the controller stores up to 60 exposure settings. An oil-free vacuum pump and rubber blanket support screen contact.
Vacuum pressure can be adjusted for the screen material. Send the screen-frame dimensions, emulsion type and required pattern detail so the contact and exposure settings can be reviewed for the application.
Features and Operation
- Parallel-light optical arrangement.
- UV light integrator and 60 stored exposure settings.
- Adjustable vacuum pressure with an oil-free pump.
Technical Specifications
- Screen size
- 1100 × 1300 mm
- Effective exposure area
- 1000 × 1200 mm
- Stored exposure settings
- 60
- Equipment dimensions
- Approx. W1510 × D1370 × H1210 mm
- Power supply
- AC 220 V, single-phase, 50 Hz
- Specified supply current
- 30 A
Specifications describe the documented configuration. Confirm the final configuration for your application.
